UtilityPerformance profile
LS J2023H
The LS J2023H is a compact utility tractor built for versatility and efficiency. This 4WD tractor features a hydrostatic transmission with 2 ranges, making it easy to operate in various conditions. The J2023H is powered by a Mitsubishi S3L diesel engine, which is liquid-cooled and has 3 cylinders. With 23 hp output at 2700 rpm, this tractor offers average power for its size. The J2023H has a small footprint, measuring 103 inches long, 44.9 inches wide, and 85 inches tall, including the ROPS. It's lightweight at 1565 lb, making it easy to maneuver in tight spaces. The tractor comes with a Category I rear hitch, suitable for a range of attachments. LS offers tire options for lawn/turf or industrial use, adding to its versatility. With its compact size and hydrostatic power steering, the J2023H is well-suited for small farms, landscaping, or light utility work.
ManufacturerLSPower23 hpEngine3-cylTransHydrostatic
Quick specs
- Category
- Utility
- Engine Power Output
- 23hp
- Operating Weight
- 1,565 lb
- Transmission
- Hydrostatic
At a glance
How the J2023H compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
23 hp · 12th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The J2023H ranks at the 12th percentile for engine power among recorded utility tractors.
Overview
About the LS J2023H
The LS J2023H is a compact utility tractor built for versatility and efficiency. This 4WD tractor features a hydrostatic transmission with 2 ranges, making it easy to operate in various conditions. The J2023H is powered by a Mitsubishi S3L diesel engine, which is liquid-cooled and has 3 cylinders. With 23 hp output at 2700 rpm, this tractor offers average power for its size. The J2023H has a small footprint, measuring 103 inches long, 44.9 inches wide, and 85 inches tall, including the ROPS. It's lightweight at 1565 lb, making it easy to maneuver in tight spaces. The tractor comes with a Category I rear hitch, suitable for a range of attachments. LS offers tire options for lawn/turf or industrial use, adding to its versatility. With its compact size and hydrostatic power steering, the J2023H is well-suited for small farms, landscaping, or light utility work.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | J2023H |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 1,565lb |
Engine
| Make | Mitsibishi |
|---|---|
| Model | S3L |
| Power | 23hp |
| Cylinders | 3 |
| Displacement | 68.6ci |
| Bore | 3.08in |
| Stroke | 3.09in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 103in |
|---|---|
| Width | 44.9in |
| Height | 85in |
| Operating weight | 1,565lb |
Head to head
J2023H vs. Utility median
How the LS J2023H compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23 hp | 55 hp | -58% | 12th |
| Engine Displacement | 68.6 ci | 183 ci | -63% | 9th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 1,565 lb | 5,303 lb | -70% | 7th |
| Length | 103 in | 137 in | -25% | 10th |
| Width | 44.9 in | 66 in | -32% | 10th |
| Height | 85 in | 94.1 in | -10% | 33rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared LS tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery

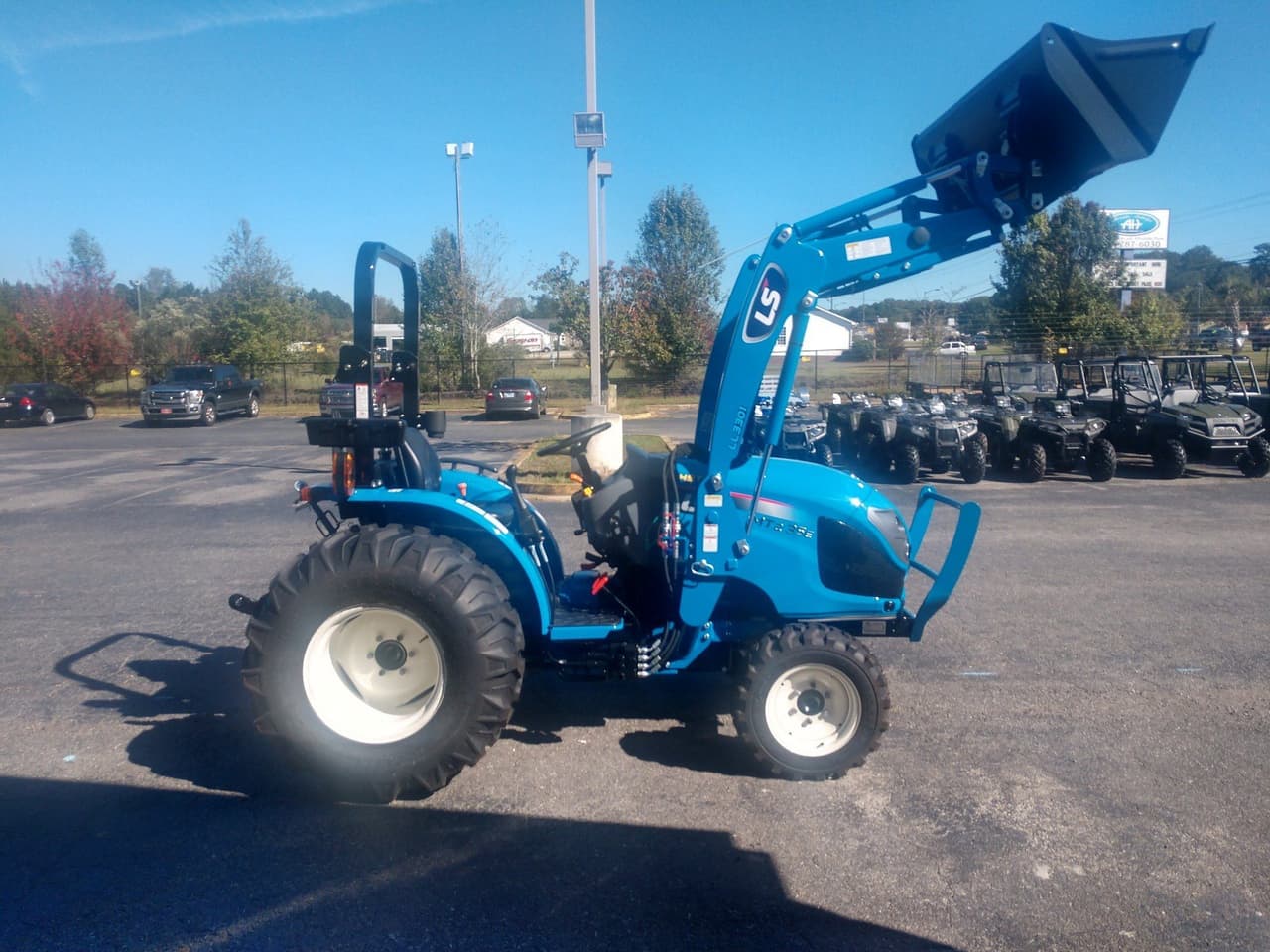

LS J2023H photos
FAQ
Common questions
How much horsepower does the LS J2023H have?
The LS J2023H produces 23 hp from its 3-cylinder engine. Engine displacement is 68.6 ci.
How much does the LS J2023H weigh?
The LS J2023H weighs about 1,565 lb in operating condition.
What transmission is in the LS J2023H?
Transmission on the LS J2023H is Hydrostatic.
What hitch category is the LS J2023H?
The LS J2023H uses a Category Category 3 hitch.
What maintenance does the LS J2023H require?
Like any tractor, the LS J2023H needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
