UtilityPerformance profile
LS R4047
The LS R4047 is a utility tractor built for versatile farm work. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in various conditions. The tractor is powered by a Mitsubishi S4QL diesel engine with 4 cylinders and 47 horsepower. This engine is liquid-cooled and has average power for its class. The R4047 features a synchro shuttle transmission with 16 forward and 16 reverse gears, giving the operator plenty of options for different tasks. It has a Category I hitch at the rear, which is useful for attaching various implements. The tractor's size is compact, measuring 132.2 inches long, 55.9 inches wide, and 95.1 inches high with the ROPS (Roll-Over Protective Structure). Weighing 3,813 pounds, it's on the lighter side for utility tractors, which can be good for reducing soil compaction.
ManufacturerLSPower47 hpEngine4-cylTransSynchro shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 47hp
- Operating Weight
- 3,813 lb
- Transmission
- Synchro shuttle
At a glance
How the R4047 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
47 hp · 41st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The R4047 ranks at the 41st percentile for engine power among recorded utility tractors.
Overview
About the LS R4047
The LS R4047 is a utility tractor built for versatile farm work. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in various conditions. The tractor is powered by a Mitsubishi S4QL diesel engine with 4 cylinders and 47 horsepower. This engine is liquid-cooled and has average power for its class. The R4047 features a synchro shuttle transmission with 16 forward and 16 reverse gears, giving the operator plenty of options for different tasks. It has a Category I hitch at the rear, which is useful for attaching various implements. The tractor's size is compact, measuring 132.2 inches long, 55.9 inches wide, and 95.1 inches high with the ROPS (Roll-Over Protective Structure). Weighing 3,813 pounds, it's on the lighter side for utility tractors, which can be good for reducing soil compaction.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | R4047 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,813lb |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S4QL |
| Power | 47hp |
| Cylinders | 4 |
| Displacement | 152.9ci |
| Bore | 3.46in |
| Stroke | 4.06in |
Transmission
| Type | Synchro shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 132.2in |
|---|---|
| Width | 55.9in |
| Height | 95.1in |
| Operating weight | 3,813lb |
Head to head
R4047 vs. Utility median
How the LS R4047 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 47 hp | 55 hp | -15% | 41st |
| Engine Displacement | 153 ci | 183 ci | -16% | 40th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 3,813 lb | 5,303 lb | -28% | 34th |
| Length | 132 in | 137 in | -3% | 44th |
| Width | 55.9 in | 66 in | -15% | 29th |
| Height | 95.1 in | 94.1 in | +1% | 52nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared LS tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
| AGCO ST60A | 46.4 hp | 4,078 lb | — | Compare → |
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 5800 | 48 hp | — | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery

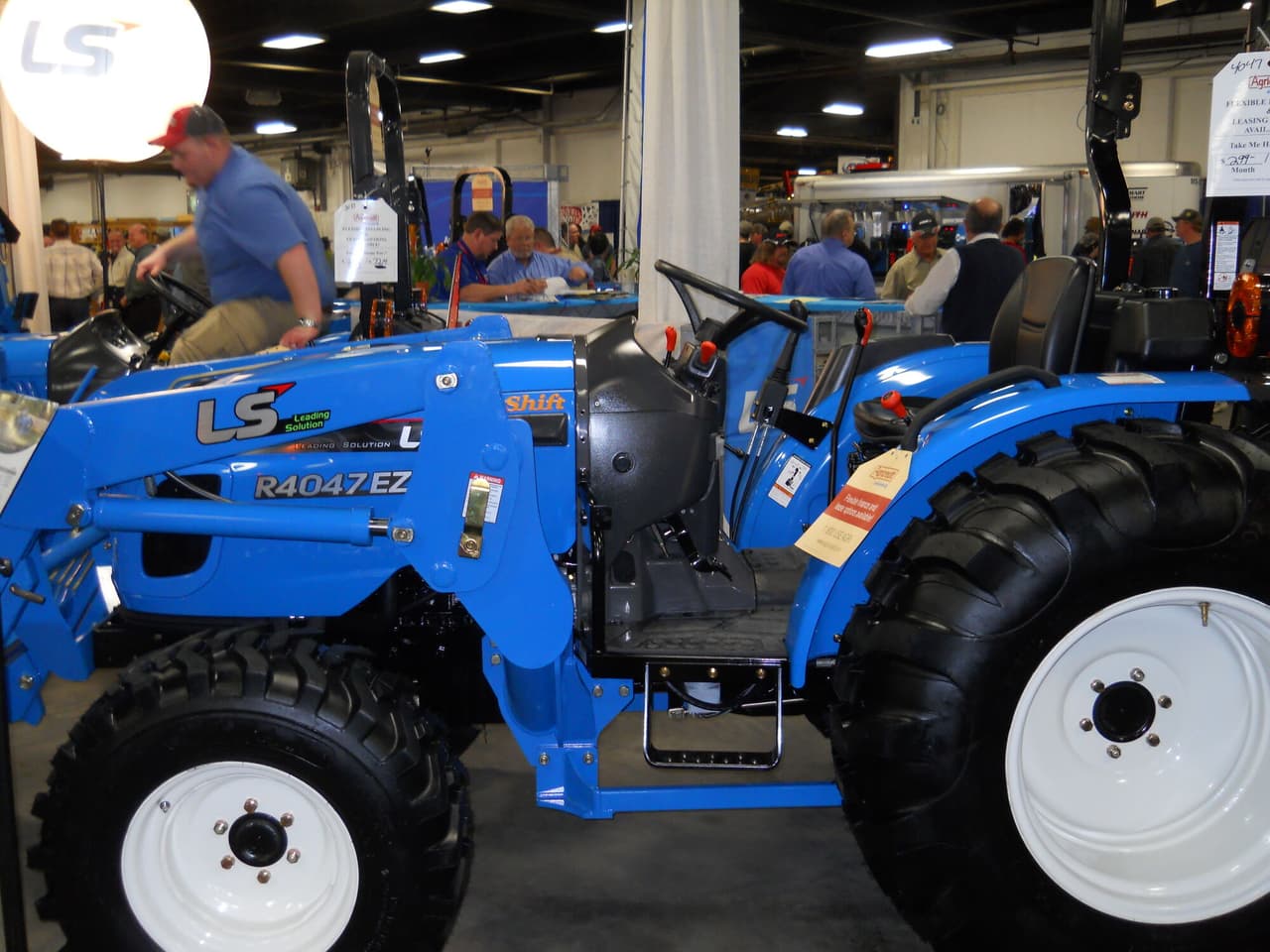

LS R4047 photos
FAQ
Common questions
What is the engine power output of the LS R4047?
Rated engine output for the LS R4047 is 47 hp, delivered by a 4-cylinder engine. The engine displaces 152.9 ci.
Which transmission does the LS R4047 use?
The LS R4047 is equipped with a Synchro shuttle transmission with 16 forward gears.
What hitch category is the LS R4047?
The LS R4047 uses a Category Category 3 hitch.
What is the operating weight of the LS R4047?
In working trim, the LS R4047 comes in at roughly 3,813 lb.
How do I maintain a LS R4047?
Routine service for the LS R4047 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
