UtilityPerformance profile
LS U6020

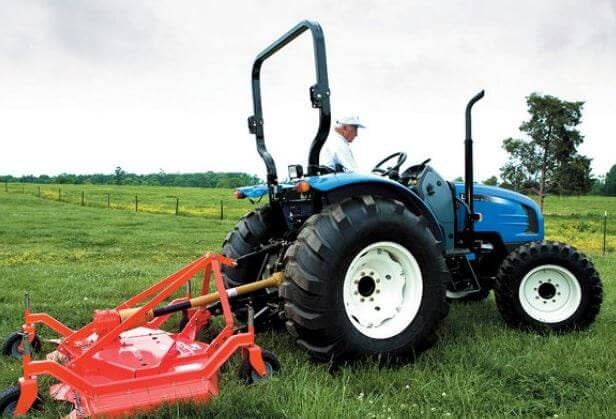

The LS U6020 is a versatile utility tractor built for various farm tasks. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in different conditions. The tractor uses a synchronized shuttle transmission with 16 forward and 16 reverse gears, giving the driver many options for speed and power. Under the hood, the U6020 has a LS L4AL-T2 diesel engine with 4 cylinders. This engine is liquid-cooled and uses direct injection for better fuel use. It can produce 57 horsepower at 2500 RPM, which is about average for tractors in its class. The engine size is also average, measuring 159.9 cubic inches. This tractor has agricultural tires in front and back, with larger rear tires for better traction. It also comes with a three-point hitch at the back, which can be used to attach various tools and equipment.
ManufacturerLSPower57 hpEngine4-cylTransSynchronized shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 57hp
- Transmission
- Synchronized shuttle
At a glance
How the U6020 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
57 hp · 51st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The U6020 ranks at the 51st percentile for engine power among recorded utility tractors.
Overview
About the LS U6020
The LS U6020 is a versatile utility tractor built for various farm tasks. It has a strong 4-wheel drive system and hydrostatic power steering, making it easy to control in different conditions. The tractor uses a synchronized shuttle transmission with 16 forward and 16 reverse gears, giving the driver many options for speed and power. Under the hood, the U6020 has a LS L4AL-T2 diesel engine with 4 cylinders. This engine is liquid-cooled and uses direct injection for better fuel use. It can produce 57 horsepower at 2500 RPM, which is about average for tractors in its class. The engine size is also average, measuring 159.9 cubic inches. This tractor has agricultural tires in front and back, with larger rear tires for better traction. It also comes with a three-point hitch at the back, which can be used to attach various tools and equipment.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | U6020 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
Engine
| Make | LS |
|---|---|
| Model | L4AL-T2 |
| Power | 57hp |
| Cylinders | 4 |
| Displacement | 159.9ci |
Transmission
| Type | Synchronized shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 135.2in |
|---|---|
| Width | 70in |
Head to head
U6020 vs. Utility median
How the LS U6020 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 57 hp | 55 hp | +4% | 51st |
| Engine Displacement | 160 ci | 183 ci | -13% | 43rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Length | 135 in | 137 in | -1% | 48th |
| Width | 70 in | 66 in | +6% | 61st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared LS tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 400A | 57 hp | 6,600 lb | — | Compare → |
| Belarus 405A | 57 hp | 7,650 lb | — | Compare → |
| Belarus 420A | 57 hp | 7,300 lb | — | Compare → |
| Belarus 425A | 57 hp | 8,700 lb | — | Compare → |
| Allis Chalmers 615 | 56.9 hp | — | 1966–1974 | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery
LS U6020 photos
FAQ
Common questions
How powerful is the LS U6020?
The LS U6020 has an engine power output of 57 hp. It is powered by a 4-cylinder engine displacing 159.9 ci.
What hitch category is the LS U6020?
The LS U6020 uses a Category II hitch.
What type of transmission does the LS U6020 have?
The LS U6020 uses a Synchronized shuttle transmission offering 16 forward gears.
What routine service does the LS U6020 need?
Regular maintenance for the LS U6020 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
