Sub-Compact tractorsSpec sheet
LS XR3135
The LS XR3135 is a compact and versatile tractor designed for various farming tasks. It features a 35 hp diesel engine made by LS, with three cylinders and turbocharging for improved performance. The engine is liquid-cooled and has a displacement of 114.7 cubic inches, which is average for its class. It runs at 2600 rpm and uses common rail direct injection for efficient fuel use. This tractor comes with a synchronized shuttle transmission, offering 12 forward and 12 reverse gears. This gives operators plenty of options for different jobs. The XR3135 has agricultural tires on both front and rear, making it suitable for field work. It's equipped with a three-point hitch at the rear, which is category I, allowing for easy attachment of various implements. The tractor has a ROPS (Roll-Over Protective Structure) for operator safety and uses an electric starter for easy ignition. With its compact size (124.3 inches long, 60 inches wide, and 93 inches tall) and operating weight of 3219 pounds, this LS tractor is well-suited for small to medium-sized farms.
ManufacturerLSPower35 hp(26.1 kW)Class25–40 HP tractors →Engine3-cylinderTransmissionSynchronized shuttle
Key specifications
- Category
- Sub-Compact
- Engine power
- 35hp
- Operating weight
- 3,219 lb
- Transmission
- Synchronized shuttle
Category comparison
XR3135 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
35 hp · 66th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The XR3135 ranks at the 66th percentile for engine power among recorded sub-compact tractors.
Overview
About the LS XR3135
The LS XR3135 is a compact and versatile tractor designed for various farming tasks. It features a 35 hp diesel engine made by LS, with three cylinders and turbocharging for improved performance. The engine is liquid-cooled and has a displacement of 114.7 cubic inches, which is average for its class. It runs at 2600 rpm and uses common rail direct injection for efficient fuel use. This tractor comes with a synchronized shuttle transmission, offering 12 forward and 12 reverse gears. This gives operators plenty of options for different jobs. The XR3135 has agricultural tires on both front and rear, making it suitable for field work. It's equipped with a three-point hitch at the rear, which is category I, allowing for easy attachment of various implements. The tractor has a ROPS (Roll-Over Protective Structure) for operator safety and uses an electric starter for easy ignition. With its compact size (124.3 inches long, 60 inches wide, and 93 inches tall) and operating weight of 3219 pounds, this LS tractor is well-suited for small to medium-sized farms.
Full specifications
Recorded specifications
General
| Manufacturer | LS |
|---|---|
| Model | XR3135 |
| Category | Sub-Compact tractor |
| Operating weight | 3,219lb(1,460 kg) |
Engine
| Make | LS |
|---|---|
| Model | L3C19-T |
| Power | 35hp(26.1 kW) |
| Cylinders | 3 |
| Displacement | 114.7ci(1.88 L) |
| Bore | 3.47in(88.01 mm) |
| Stroke | 4.06in(103 mm) |
Transmission
| Type | Synchronized shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Cab | ROPS |
|---|
Dimensions
| Length | 124.3in(3,157 mm) |
|---|---|
| Width | 60in(1,524 mm) |
| Height | 93in(2,362 mm) |
| Operating weight | 3,219lb(1,460 kg) |
Closest alternatives
XR3135 compared with the nearest models by horsepower
By engine horsepower, the nearest sub-compact models to the XR3135 are the New Holland TC35A and the Ag King AK3540. The New Holland TC35A matches it on rated power and weighs 440 lb less, carrying 80 lb per horsepower against 92 lb. The Ag King AK3540 matches it on rated power and weighs 680 lb more, so it carries more weight per horsepower, which helps traction in draft work.
| Spec | LS XR3135 | New Holland TC35A | Ag King AK3540 |
|---|---|---|---|
| Engine power | 35 hp26.1 kW | 35 hp26.1 kW | 35 hp26.1 kW |
| Operating weight | 3,219 lb1,460 kg | 2,784 lb1,263 kg | 3,895 lb1,767 kg |
| Weight per hp | 92 lb/hp56 kg/kW | 80 lb/hp48 kg/kW | 111 lb/hp68 kg/kW |
| Displacement | 114.7 ci1.88 L | 101.4 ci1.66 L | 82.8 ci1.36 L |
| Cylinders | 3 | 3 | 4 |
| Transmission | Synchronized shuttle | Synchronized shuttle | Manual |
| Drive | - | 4WD | Four-wheel drive (4WD) |
Calculators
Calculators for the XR3135
PTO power
About 29 to 32 PTO hp
Estimated from the 35 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 35 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
107 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
35 hp is 26.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
XR3135 vs. Sub-Compact median
LS XR3135 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35 hp | 26.9 hp | +30% | 66th |
| Engine Displacement | 115 ci | 91.4 ci | +25% | 66th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,219 lb | 2,700 lb | +19% | 60th |
| Length | 124 in | 113 in | +10% | 67th |
| Width | 60 in | 50.7 in | +18% | 74th |
| Height | 93 in | 78.4 in | +19% | 82nd |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other LS models
Other manufacturers
Models with similar horsepower
Gallery

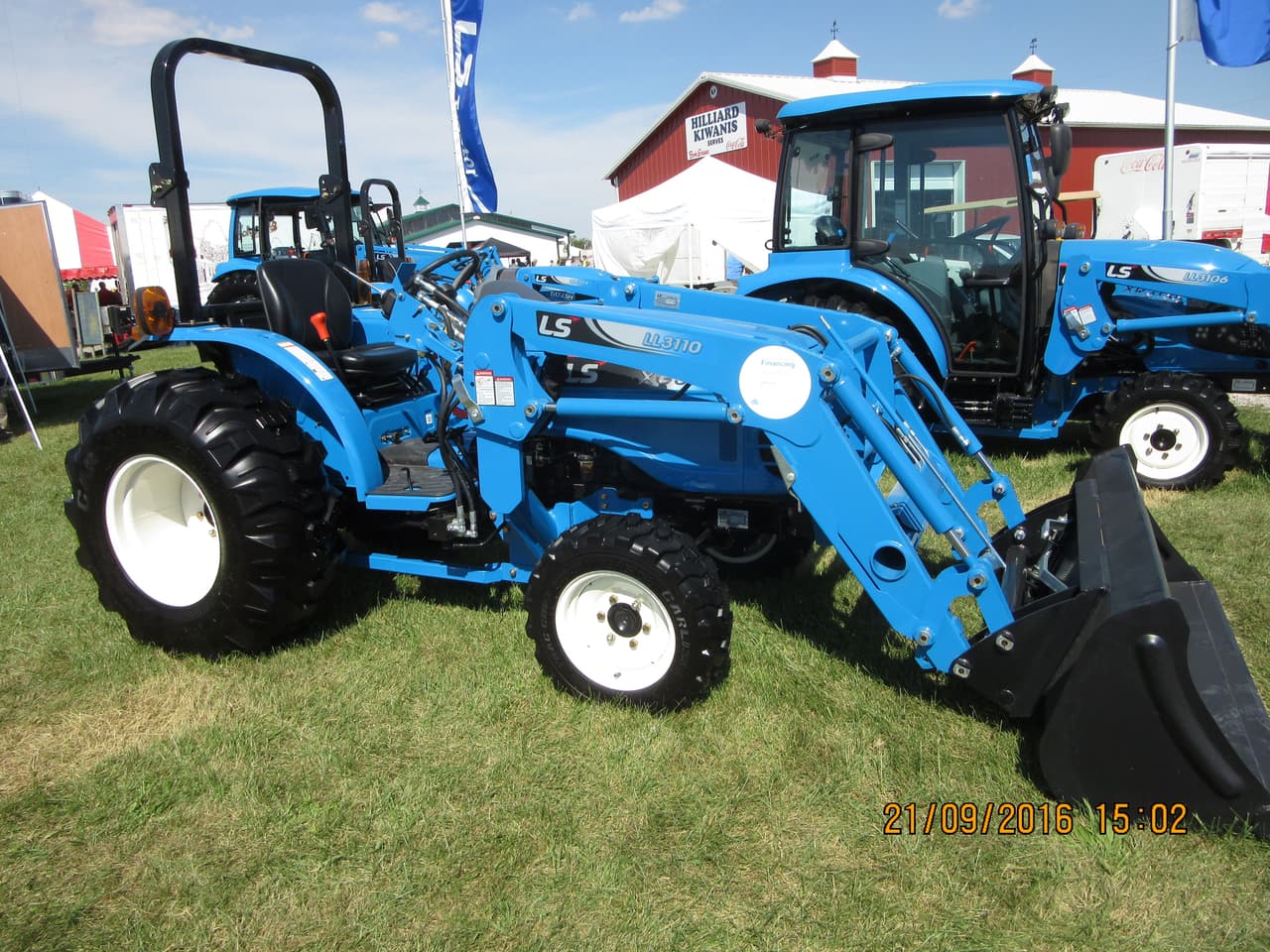

LS XR3135 photos
FAQ
Frequently asked questions
How powerful is the LS XR3135?
The LS XR3135 has an engine power output of 35 hp. It is powered by a 3-cylinder engine displacing 114.7 ci.
What three-point hitch category does the LS XR3135 use?
The LS XR3135 has a Category I three-point hitch.
What is the working weight of the LS XR3135?
The operating weight of the LS XR3135 is approximately 3,219 lb.
What type of transmission does the LS XR3135 have?
The LS XR3135 uses a Synchronized shuttle transmission offering 12 forward gears.
What routine service does the LS XR3135 need?
Regular maintenance for the LS XR3135 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
