Sub-CompactPerformance profile
LS Rio R36
The LS Rio R36 is a compact but capable tractor built for various farm tasks. It features a 4-wheel drive system and hydrostatic power steering, making it easy to control in different conditions. The tractor has a 12-speed synchro shuttle transmission, giving the driver plenty of options for different jobs. Under the hood, the Rio R36 has a Mitsubishi S4L2 engine. This diesel engine has 4 cylinders and is liquid-cooled to keep it running smoothly. It puts out 38.5 horsepower at 2700 RPM, which is enough power for many farm tasks. The tractor has a total length of 117.6 inches and stands 92.6 inches tall. It weighs 2712 pounds, making it sturdy but not too heavy. The Rio R36 also has good ground clearance at 13 inches, helping it move over rough terrain. With features like dual element dry air cleaner and hydraulic steering flow of 3.6 GPM, this LS tractor is designed to be reliable and efficient for everyday farm use.
ManufacturerLSPower38.5 hpEngine4-cylTransSynchro Shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 39hp
- Operating Weight
- 2,712 lb
- Transmission
- Synchro Shuttle
At a glance
How the Rio R36 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
38.5 hp · 72nd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The Rio R36 ranks at the 72nd percentile for engine power among recorded sub-compact tractors.
Overview
About the LS Rio R36
The LS Rio R36 is a compact but capable tractor built for various farm tasks. It features a 4-wheel drive system and hydrostatic power steering, making it easy to control in different conditions. The tractor has a 12-speed synchro shuttle transmission, giving the driver plenty of options for different jobs. Under the hood, the Rio R36 has a Mitsubishi S4L2 engine. This diesel engine has 4 cylinders and is liquid-cooled to keep it running smoothly. It puts out 38.5 horsepower at 2700 RPM, which is enough power for many farm tasks. The tractor has a total length of 117.6 inches and stands 92.6 inches tall. It weighs 2712 pounds, making it sturdy but not too heavy. The Rio R36 also has good ground clearance at 13 inches, helping it move over rough terrain. With features like dual element dry air cleaner and hydraulic steering flow of 3.6 GPM, this LS tractor is designed to be reliable and efficient for everyday farm use.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | Rio R36 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,712lb |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S4L2 |
| Power | 38.5hp |
| Cylinders | 4 |
| Displacement | 107.3ci |
| Bore | 3.07in |
| Stroke | 3.62in |
Transmission
| Type | Synchro Shuttle |
|---|---|
| Forward gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 117.6in |
|---|---|
| Height | 92.6in |
| Operating weight | 2,712lb |
Tires
| Rear | 12.4-24 |
|---|
Head to head
Rio R36 vs. Sub-Compact median
How the LS Rio R36 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 38.5 hp | 26.9 hp | +43% | 72nd |
| Engine Displacement | 107 ci | 91.4 ci | +17% | 62nd |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 2,712 lb | 2,700 lb | 0% | 50th |
| Length | 118 in | 113 in | +4% | 56th |
| Height | 92.6 in | 78.4 in | +18% | 80th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 616–816 models).
Compare to tractors with similar specs
Commonly compared LS tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| LS Rio R41 | 41 hp | 3,583 lb | — | Compare → |
| LS XR3135 | 35 hp | 3,219 lb | — | Compare → |
| LS LT450D | 43 hp | 3,814 lb | — | Compare → |
| LS Rio R32 | 34 hp | 2,725 lb | — | Compare → |
| LS Rio R50 | 47 hp | 3,583 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery

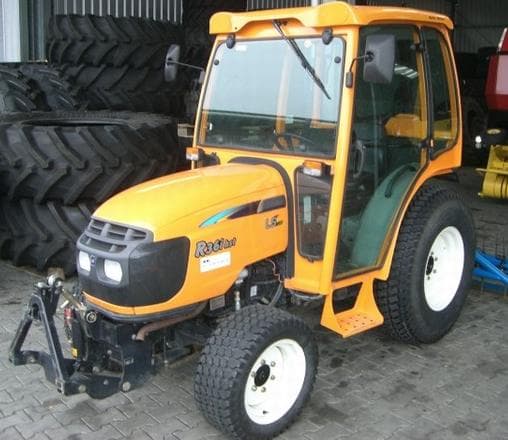

LS Rio R36 photos
FAQ
Common questions
How powerful is the LS Rio R36?
The LS Rio R36 has an engine power output of 38.5 hp. It is powered by a 4-cylinder engine displacing 107.3 ci.
What are the factory tire sizes for the LS Rio R36?
The LS Rio R36 comes with 12.4-24 rear tires.
What is the working weight of the LS Rio R36?
The operating weight of the LS Rio R36 is approximately 2,712 lb.
What type of transmission does the LS Rio R36 have?
The LS Rio R36 uses a Synchro Shuttle transmission offering 12 forward gears.
What routine service does the LS Rio R36 need?
Regular maintenance for the LS Rio R36 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
