Massey Ferguson 1120
The Massey Ferguson 1120 is a compact tractor designed for small farms and light work. It's powered by a 3-cylinder, liquid-cooled diesel engine made by Iseki. This engine has 52 cubic inches of displacement and can produce 16.6 horsepower at 2600 RPM. The tractor uses indirect injection for fuel delivery and has glow plugs to help with starting in cold weather. This tractor has a gear transmission with 6 forward speeds and 2 reverse speeds, giving the operator good control over speed and power. It's equipped with agricultural tires both front and rear, making it suitable for field work. The Massey Ferguson 1120 is relatively small, measuring 90.6 inches long, 39.3 inches wide, and 79.3 inches tall. It weighs 1272 pounds, which is light enough to avoid excessive soil compaction. The tractor features a Category I hitch, allowing it to work with many common implements. For operator safety, it comes with a Roll-Over Protective Structure (ROPS).
ManufacturerMassey FergusonPower16.6 hpEngine3-cylTransgear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 17hp
- Operating Weight
- 1,272 lb
- Transmission
- gear
At a glance
How the 1120 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
16.6 hp · 14th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 1120 ranks at the 14th percentile for engine power among recorded sub-compact tractors.
Overview
About the Massey Ferguson 1120
The Massey Ferguson 1120 is a compact tractor designed for small farms and light work. It's powered by a 3-cylinder, liquid-cooled diesel engine made by Iseki. This engine has 52 cubic inches of displacement and can produce 16.6 horsepower at 2600 RPM. The tractor uses indirect injection for fuel delivery and has glow plugs to help with starting in cold weather. This tractor has a gear transmission with 6 forward speeds and 2 reverse speeds, giving the operator good control over speed and power. It's equipped with agricultural tires both front and rear, making it suitable for field work. The Massey Ferguson 1120 is relatively small, measuring 90.6 inches long, 39.3 inches wide, and 79.3 inches tall. It weighs 1272 pounds, which is light enough to avoid excessive soil compaction. The tractor features a Category I hitch, allowing it to work with many common implements. For operator safety, it comes with a Roll-Over Protective Structure (ROPS).
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 1120 |
| Category | Sub-Compact tractor |
| Operating weight | 1,272lb |
Engine
| Make | Iseki |
|---|---|
| Model | K3B |
| Power | 16.6hp |
| Cylinders | 3 |
| Displacement | 52ci |
Transmission
| Type | gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Cab | ROPS |
|---|
Hydraulics
| Type | open center |
|---|
Dimensions
| Length | 90.6in |
|---|---|
| Width | 39.3in |
| Height | 79.3in |
| Operating weight | 1,272lb |
Capacities
| Cooling system | 1.28gal |
|---|
Head to head
1120 vs. Sub-Compact median
How the Massey Ferguson 1120 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 16.6 hp | 26.9 hp | -38% | 14th |
| Engine Displacement | 52 ci | 91.4 ci | -43% | 11th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 1,272 lb | 2,700 lb | -53% | 10th |
| Length | 90.6 in | 113 in | -20% | 17th |
| Width | 39.3 in | 50.7 in | -22% | 10th |
| Height | 79.3 in | 78.4 in | +1% | 52nd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson GC1705 | 22.5 hp | 1,433 lb | 2013–2018 | Compare → |
| Massey Ferguson GC1723E | 22.5 hp | 1,521 lb | 2019+ | Compare → |
| Massey Ferguson GC2300 | 22.5 hp | 1,367 lb | 2005–2008 | Compare → |
| Massey Ferguson GC2400 | 22.5 hp | 1,433 lb | 2008–2012 | Compare → |
| Massey Ferguson GC1720 | 24.5 hp | 2,690 lb | 2013+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 616 | 16.5 hp | 1,499 lb | 1972–1973 | Compare → |
| Ariens GT17 | 17 hp | 926 lb | 1979–1987 | Compare → |
| Bolens G172 | 17 hp | 1,056 lb | — | Compare → |
| Bolens G174 | 17 hp | 1,144 lb | — | Compare → |
| Bolens H1704 | 17 hp | 1,268 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery

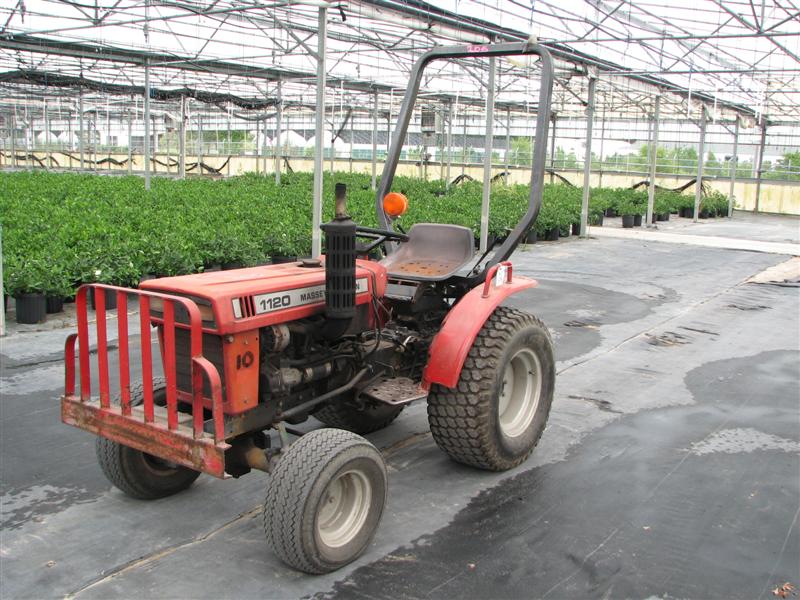

Massey Ferguson 1120 photos
FAQ
Common questions
What is the engine power output of the Massey Ferguson 1120?
Rated engine output for the Massey Ferguson 1120 is 16.6 hp, delivered by a 3-cylinder engine. The engine displaces 52 ci.
Which transmission does the Massey Ferguson 1120 use?
The Massey Ferguson 1120 is equipped with a gear transmission with 6 forward gears.
What type of hydraulic system does the Massey Ferguson 1120 use?
Hydraulics on the Massey Ferguson 1120 are open center.
What hitch category is the Massey Ferguson 1120?
The Massey Ferguson 1120 uses a Category I hitch.
What is the operating weight of the Massey Ferguson 1120?
In working trim, the Massey Ferguson 1120 comes in at roughly 1,272 lb.
How do I maintain a Massey Ferguson 1120?
Routine service for the Massey Ferguson 1120 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
