Massey Ferguson 821
The Massey Ferguson 821 is a utility tractor designed for everyday farm tasks. It has a 2-wheel drive system and a gear transmission with 5 forward gears and 1 reverse gear. This tractor is powered by a Peugeot gasoline engine with 4 cylinders and natural aspiration. The engine has a displacement of 78.72 cubic inches, which is below average for tractors in its class. It produces 20 horsepower at 2000 rpm, which is also on the lower end of the power range for utility tractors. The Massey Ferguson 821 is compact, measuring 109.5 inches long, 55.1 inches wide, and 61 inches tall. It has a wheelbase of 66.9 inches, making it easy to maneuver in tight spaces. The tractor features an electric starter and a 12-volt electrical system. Its coolant capacity is 9 quarts, which helps keep the engine running smoothly during operation. Overall, this tractor is best suited for light to medium-duty tasks on small to medium-sized farms or properties.
ManufacturerMassey FergusonPower20 hp(14.9 kW)ClassUnder 25 HP tractors →Engine4-cylinderTransmissionGear
Key specifications
- Category
- Utility
- Engine power
- 20hp
- Transmission
- Gear
Category comparison
821 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
20 hp · 8th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 821 ranks at the 8th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 821
The Massey Ferguson 821 is a utility tractor designed for everyday farm tasks. It has a 2-wheel drive system and a gear transmission with 5 forward gears and 1 reverse gear. This tractor is powered by a Peugeot gasoline engine with 4 cylinders and natural aspiration. The engine has a displacement of 78.72 cubic inches, which is below average for tractors in its class. It produces 20 horsepower at 2000 rpm, which is also on the lower end of the power range for utility tractors. The Massey Ferguson 821 is compact, measuring 109.5 inches long, 55.1 inches wide, and 61 inches tall. It has a wheelbase of 66.9 inches, making it easy to maneuver in tight spaces. The tractor features an electric starter and a 12-volt electrical system. Its coolant capacity is 9 quarts, which helps keep the engine running smoothly during operation. Overall, this tractor is best suited for light to medium-duty tasks on small to medium-sized farms or properties.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 821 |
| Category | Utility tractor |
| Type | 4x2 2WD |
Engine
| Make | Peugeot |
|---|---|
| Power | 20hp(14.91 kW) |
| Cylinders | 4 |
| Displacement | 78.72ci(1.29 L) |
| Bore | 2.95in(74.93 mm) |
| Stroke | 2.87in(72.9 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 109.5in(2,781 mm) |
|---|---|
| Width | 55.1in(1,400 mm) |
| Height | 61in(1,549 mm) |
Capacities
| Cooling system | 2.25gal(8.52 L) |
|---|
Closest alternatives
821 compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 205 and the Massey Ferguson 820 are closest to the Massey Ferguson 821 in rated horsepower. The Massey Ferguson 205 matches it on rated power. The Massey Ferguson 820 matches it on rated power.
| Spec | Massey Ferguson 821 | Massey Ferguson 205 | Massey Ferguson 820 |
|---|---|---|---|
| Engine power | 20 hp14.9 kW | 20 hp14.9 kW | 20 hp14.9 kW |
| Operating weight | - | 1,905 lb864 kg | 2,204 lb1,000 kg |
| Weight per hp | - | 95 lb/hp58 kg/kW | 110 lb/hp67 kg/kW |
| Displacement | 78.7 ci1.29 L | 65 ci1.07 L | 78.7 ci1.29 L |
| Cylinders | 4 | 2 | 4 |
| Transmission | Gear | Gear | Gear |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the 821
PTO power
About 17 to 18 PTO hp
Estimated from the 20 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 20 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Units
20 hp is 14.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
821 vs. Utility median
Massey Ferguson 821 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 20 hp | 55 hp | -64% | 8th |
| Engine Displacement | 78.7 ci | 183 ci | -57% | 12th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 5 | 12 | -58% | 6th |
| Length | 110 in | 137 in | -20% | 16th |
| Width | 55.1 in | 66 in | -17% | 27th |
| Height | 61 in | 94.1 in | -35% | 11th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

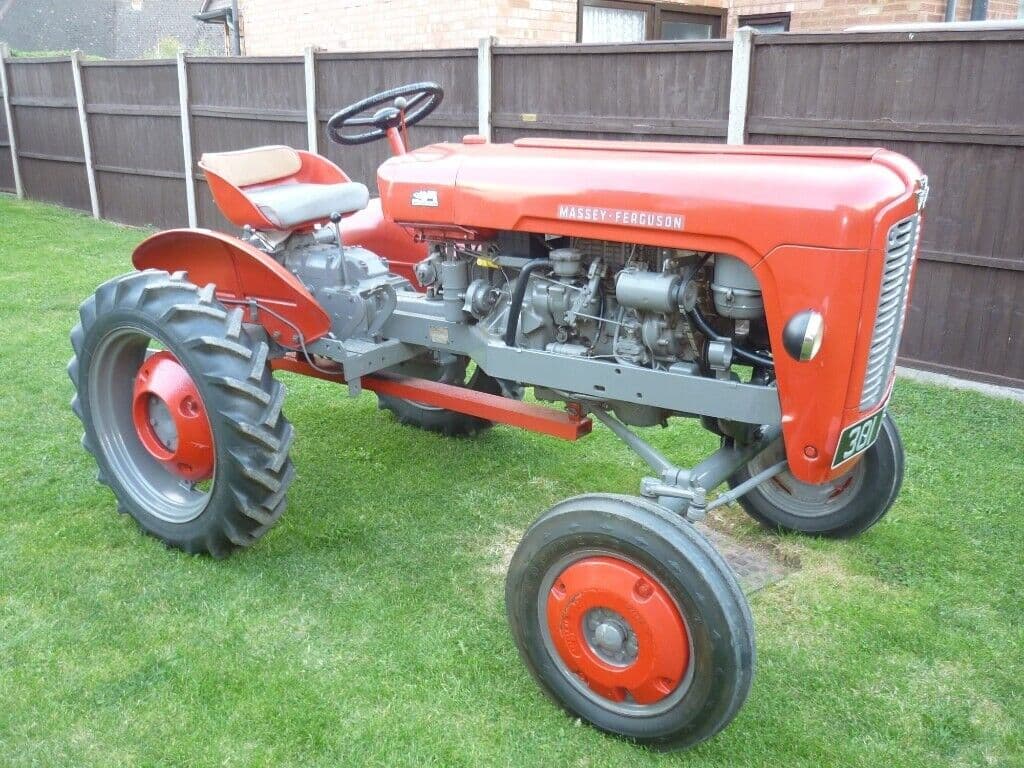

Massey Ferguson 821 photos
FAQ
Frequently asked questions
How powerful is the Massey Ferguson 821?
The Massey Ferguson 821 has an engine power output of 20 hp. It is powered by a 4-cylinder engine displacing 78.72 ci.
What type of transmission does the Massey Ferguson 821 have?
The Massey Ferguson 821 uses a Gear transmission offering 5 forward gears.
What routine service does the Massey Ferguson 821 need?
Regular maintenance for the Massey Ferguson 821 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
