Massey Ferguson 1020
The Massey Ferguson 1020 is a small utility tractor that was made from 1983 to 1994. It's a 2-wheel drive tractor with a manual steering system. This tractor has a 12-speed forward and 4-speed reverse gear transmission, giving the driver lots of options for different tasks. The Massey Ferguson 1020 has a Toyosha CS112 diesel engine with 3 cylinders. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It produces 21 horsepower, which is on the lower end compared to other tractors. The tractor weighs 1,896 pounds, making it quite light and easy to move around. It has a three-point hitch that can lift up to 1,544 pounds, which is about average for tractors of its size. The tractor also has a 540 rpm PTO (power take-off) for running attachments.
ManufacturerMassey FergusonPower21 hp(15.7 kW)ClassUnder 25 HP tractors →Engine3-cylinderTransmissionGear
Key specifications
- Category
- Utility
- Engine power
- 21hp
- Operating weight
- 1,896 lb
- Transmission
- Gear
Category comparison
1020 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
21 hp · 9th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1020 ranks at the 9th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 1020
The Massey Ferguson 1020 is a small utility tractor that was made from 1983 to 1994. It's a 2-wheel drive tractor with a manual steering system. This tractor has a 12-speed forward and 4-speed reverse gear transmission, giving the driver lots of options for different tasks. The Massey Ferguson 1020 has a Toyosha CS112 diesel engine with 3 cylinders. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It produces 21 horsepower, which is on the lower end compared to other tractors. The tractor weighs 1,896 pounds, making it quite light and easy to move around. It has a three-point hitch that can lift up to 1,544 pounds, which is about average for tractors of its size. The tractor also has a 540 rpm PTO (power take-off) for running attachments.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 1020 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1983–1994 |
| Operating weight | 1,896lb(860 kg) |
Engine
| Make | Toyosha |
|---|---|
| Model | CS112 |
| Power | 21hp(15.66 kW) |
| Cylinders | 3 |
| Displacement | 68.7ci(1.13 L) |
| Bore | 2.95in(74.93 mm) |
| Stroke | 3.35in(85.09 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential mechanical drum |
| Cab | Open with two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Transmission |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 94.5in(2,400 mm) |
|---|---|
| Width | 45.3in(1,151 mm) |
| Height | 52.8in(1,341 mm) |
| Operating weight | 1,896lb(860 kg) |
Tires
| Front | 4.00x12Convert |
|---|---|
| Rear | 8.3x24Convert |
Capacities
| Cooling system | 1.1gal(4.16 L) |
|---|
Closest alternatives
1020 compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 1220 and the Kioti CS2210 are closest to the Massey Ferguson 1020 in rated horsepower. The Massey Ferguson 1220 matches it on rated power at almost the same operating weight. It entered production in 1995, 12 years after the 1020. The Kioti CS2210 matches it on rated power and weighs 410 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 2016, 33 years after the 1020. Of the 3 models, the 1020 has the highest weight per horsepower at 90 lb per hp.
| Spec | Massey Ferguson 1020 | Massey Ferguson 1220 | Kioti CS2210 |
|---|---|---|---|
| Engine power | 21 hp15.7 kW | 21 hp15.7 kW | 21 hp15.7 kW |
| Operating weight | 1,896 lb860 kg | 1,875 lb850 kg | 1,485 lb674 kg |
| Weight per hp | 90 lb/hp55 kg/kW | 89 lb/hp54 kg/kW | 71 lb/hp43 kg/kW |
| Displacement | 68.7 ci1.13 L | 68.5 ci1.12 L | 69 ci1.13 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | Gear | Hydrostatic |
| Drive | 2WD | 2WD | MFWD 4WD |
| Years built | 1983-1994 | 1995-1998 | 2016+ |
Calculators
Calculators for the 1020
PTO power
About 17 to 19 PTO hp
Estimated from the 21 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 21 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
105 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
21 hp is 15.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 8.3x24 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
1020 vs. Utility median
Massey Ferguson 1020 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21 hp | 55 hp | -62% | 9th |
| Engine Displacement | 68.7 ci | 183 ci | -62% | 9th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 1,896 lb | 5,303 lb | -64% | 10th |
| Length | 94.5 in | 137 in | -31% | 6th |
| Width | 45.3 in | 66 in | -31% | 10th |
| Height | 52.8 in | 94.1 in | -44% | 4th |
| 3-Point Hitch Capacity | 1,544 lb | 3,197 lb | -52% | 16th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

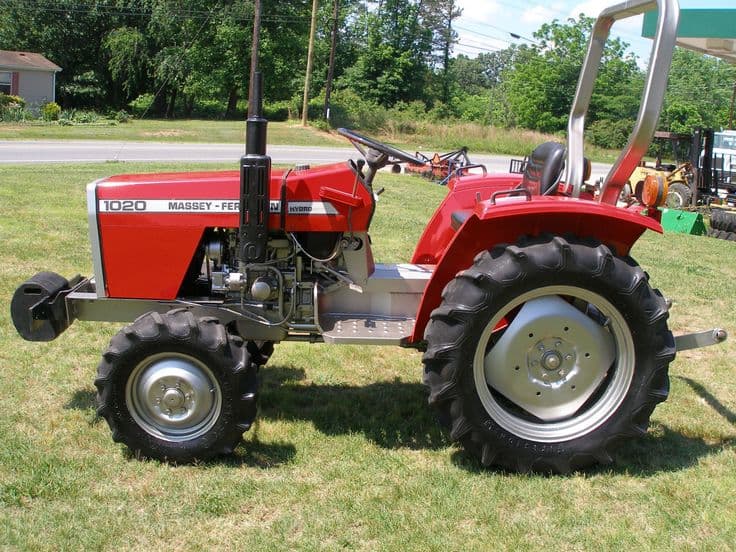

Massey Ferguson 1020 photos
FAQ
Frequently asked questions
When was the Massey Ferguson 1020 in production?
Massey Ferguson 1020 production started in 1983 and ended in 1994.
How much horsepower does the Massey Ferguson 1020 have?
The Massey Ferguson 1020 produces 21 hp from its 3-cylinder engine. Engine displacement is 68.7 ci.
How much does the Massey Ferguson 1020 weigh?
The Massey Ferguson 1020 weighs about 1,896 lb in operating condition.
What transmission is in the Massey Ferguson 1020?
Transmission on the Massey Ferguson 1020 is Gear, with 12 forward speeds.
What hydraulics does the Massey Ferguson 1020 have?
The Massey Ferguson 1020 uses an Open center hydraulic system.
What are the factory tire sizes for the Massey Ferguson 1020?
The Massey Ferguson 1020 comes with 4.00x12 front tires and 8.3x24 rear tires.
What three-point hitch category does the Massey Ferguson 1020 use?
The Massey Ferguson 1020 has a Category I three-point hitch rated to lift 1,544 lb.
What maintenance does the Massey Ferguson 1020 require?
The Massey Ferguson 1020 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
