Row Crop tractorsSpec sheet
Massey-Harris 44 Row-Crop
The Massey-Harris 44 Row-Crop tractor was made from 1947 to 1953. It was built for farming row crops and had a 2-wheel drive system. This tractor used a Continental gasoline engine with 4 cylinders and 45.1 horsepower. The engine was liquid-cooled and had a below-average displacement of 259.4 cubic inches. The 44 Row-Crop had a 5-speed transmission with 1 reverse gear. It came with an open operator station and manual steering. The tractor was 135 inches long, 78.7 inches wide, and 79.9 inches tall. It weighed 4,165 pounds, which was on the lighter side for tractors. The Massey-Harris 44 Row-Crop had agricultural tires and a special Massey Hitch-All system. It also offered an optional Power Take-Off (PTO) that could run at 534 rpm.
ManufacturerMassey-HarrisPower45.1 hp(33.6 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionUnsynchronized gear
Key specifications
- Category
- Row Crop
- Engine power
- 45hp
- Operating weight
- 4,165 lb
- Transmission
- Unsynchronized gear
Category comparison
44 Row-Crop compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
45.1 hp · 5th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 44 Row-Crop ranks at the 5th percentile for engine power among recorded row crop tractors.
Overview
About the Massey-Harris 44 Row-Crop
The Massey-Harris 44 Row-Crop tractor was made from 1947 to 1953. It was built for farming row crops and had a 2-wheel drive system. This tractor used a Continental gasoline engine with 4 cylinders and 45.1 horsepower. The engine was liquid-cooled and had a below-average displacement of 259.4 cubic inches. The 44 Row-Crop had a 5-speed transmission with 1 reverse gear. It came with an open operator station and manual steering. The tractor was 135 inches long, 78.7 inches wide, and 79.9 inches tall. It weighed 4,165 pounds, which was on the lighter side for tractors. The Massey-Harris 44 Row-Crop had agricultural tires and a special Massey Hitch-All system. It also offered an optional Power Take-Off (PTO) that could run at 534 rpm.
Full specifications
Recorded specifications
General
| Manufacturer | Massey-Harris |
|---|---|
| Model | 44 Row-Crop |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1947–1953 |
| Operating weight | 4,165lb(1,889 kg) |
Engine
| Make | Continental |
|---|---|
| Power | 45.1hp(33.63 kW) |
| Cylinders | 4 |
| Displacement | 259.4ci(4.25 L) |
| Bore | 3.86in(98.04 mm) |
| Stroke | 5.51in(140 mm) |
Transmission
| Type | Unsynchronized gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential mechanical drum |
| Cab | Open operator station |
Power take-off
| Rear PTO | Optional Transmission or Live PTO |
|---|---|
| PTO speed | 534rpm |
Dimensions
| Length | 135in(3,429 mm) |
|---|---|
| Width | 78.7in(1,999 mm) |
| Height | 79.9in(2,029 mm) |
| Operating weight | 4,165lb(1,889 kg) |
Capacities
| Cooling system | 5.75gal(21.77 L) |
|---|
Closest alternatives
44 Row-Crop compared with the nearest models by horsepower
The closest row crop models to the Massey-Harris 44 Row-Crop by rated horsepower are the Deutz D 5005 and the Volvo T34. The Deutz D 5005 matches it on rated power and weighs 470 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Volvo T34 matches it on rated power and weighs 860 lb more, at 112 lb per horsepower against 92 lb. Of the 3 models, the 44 Row-Crop has the lowest weight per horsepower at 92 lb per hp.
| Spec | Massey-Harris 44 Row-Crop | Deutz D 5005 | Volvo T34 |
|---|---|---|---|
| Engine power | 45.1 hp33.6 kW | 45 hp33.6 kW | 45 hp33.6 kW |
| Operating weight | 4,165 lb1,889 kg | 4,630 lb2,100 kg | 5,027 lb2,280 kg |
| Weight per hp | 92 lb/hp56 kg/kW | 103 lb/hp63 kg/kW | 112 lb/hp68 kg/kW |
| Displacement | 259.4 ci4.25 L | 207.5 ci3.4 L | 211.1 ci3.46 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Unsynchronized gear | - | Gear |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the 44 Row-Crop
PTO power
About 37 to 41 PTO hp
Estimated from the 45.1 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 45.1 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
107 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
45.1 hp is 33.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
44 Row-Crop vs. Row Crop median
Massey-Harris 44 Row-Crop compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 45.1 hp | 138 hp | -67% | 5th |
| Engine Displacement | 259 ci | 391 ci | -34% | 19th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 5 | 16 | -69% | 7th |
| Operating Weight | 4,165 lb | 12,307 lb | -66% | 6th |
| Length | 135 in | 180 in | -25% | 9th |
| Width | 78.7 in | 91.2 in | -14% | 19th |
| Height | 79.9 in | 114 in | -30% | 12th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Massey-Harris models
Other manufacturers
Models with similar horsepower
Gallery

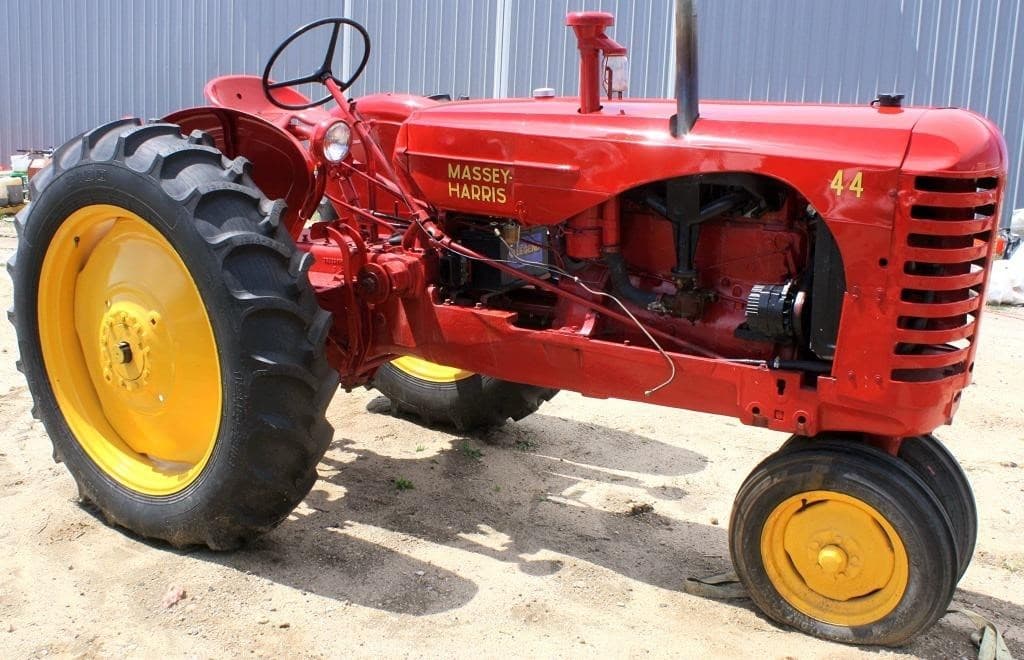

Massey-Harris 44 Row-Crop photos
FAQ
Frequently asked questions
When was the Massey-Harris 44 Row-Crop made?
The Massey-Harris 44 Row-Crop was manufactured from 1947 to 1953.
What is the operating weight of the Massey-Harris 44 Row-Crop?
The Massey-Harris 44 Row-Crop has an operating weight of about 4,165 lb.
Which transmission does the Massey-Harris 44 Row-Crop use?
The Massey-Harris 44 Row-Crop is equipped with an Unsynchronized gear transmission with 5 forward gears.
What is the engine power output of the Massey-Harris 44 Row-Crop?
Rated engine output for the Massey-Harris 44 Row-Crop is 45.1 hp, delivered by a 4-cylinder engine. The engine displaces 259.4 ci.
How do I maintain a Massey-Harris 44 Row-Crop?
Routine service for the Massey-Harris 44 Row-Crop covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
