Utility

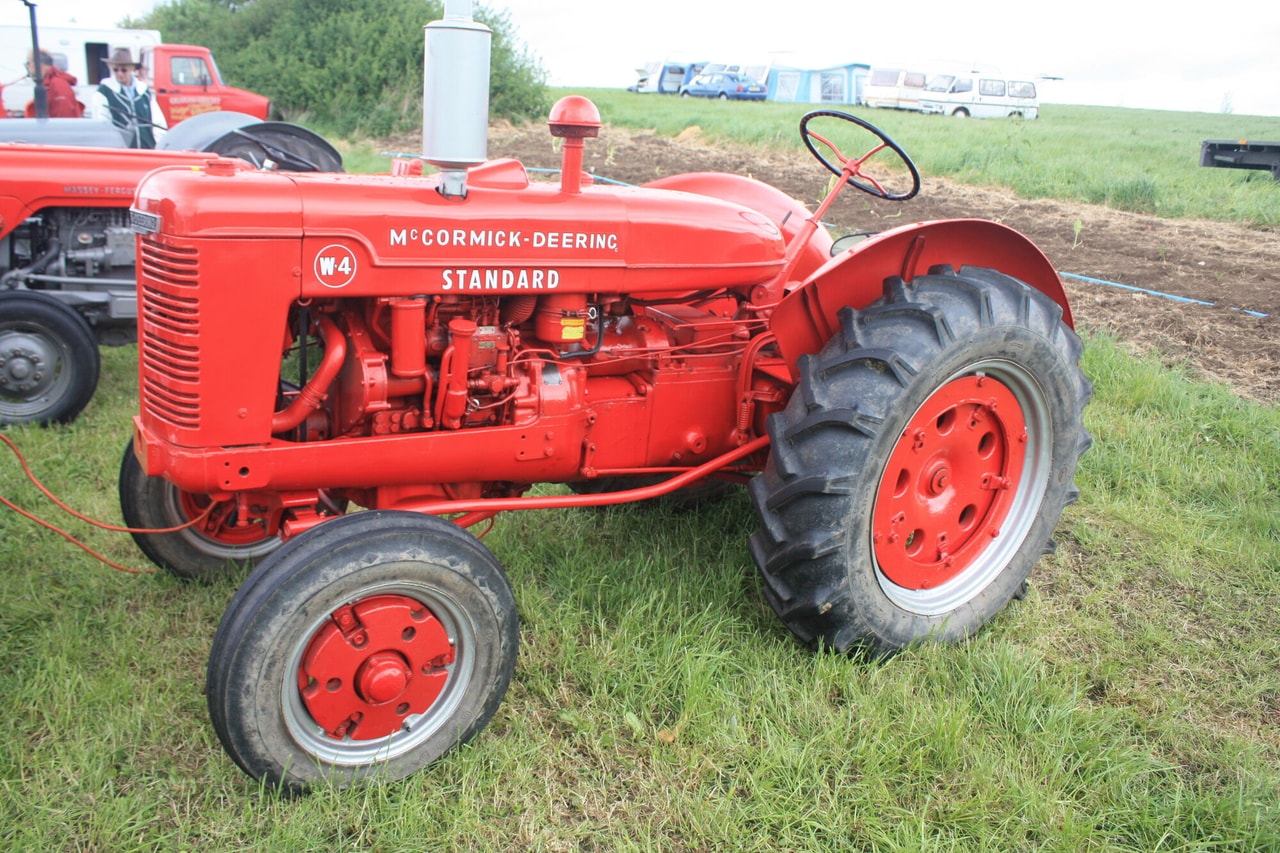

McCormick-Deering Super W-4
The McCormick-Deering Super W-4 is a utility tractor with a standard tread design. It's a 2-wheel drive machine with manual steering and a sliding gear transmission. The tractor has 5 forward gears and 1 reverse gear, giving farmers good control over their speed. Under the hood, the Super W-4 has a liquid-cooled, 4-cylinder gasoline engine made by International Harvester. The engine size is 164 cubic inches, which is about average for tractors. It runs at 1650 RPM, which is on the lower end compared to other tractors. The tractor weighs 3875 pounds, making it a mid-weight option. It has an electric starter that runs on 6 volts, making it easy to get going in the morning. The Super W-4 is compact, measuring 114 inches long, 67 inches wide, and 81 inches tall. It has a wheelbase of 89.25 inches, which helps with stability. The cooling system holds 16.5 quarts of coolant, keeping the engine running smoothly. This tractor is a good choice for farmers who need a reliable, mid-sized machine for everyday tasks.
ManufacturerMcCormick-DeeringEngine4-cylTransSliding gear
Quick specs
- Category
- Utility
- Operating Weight
- 3,875 lb
- Transmission
- Sliding gear
Overview
About the McCormick-Deering Super W-4
The McCormick-Deering Super W-4 is a utility tractor with a standard tread design. It's a 2-wheel drive machine with manual steering and a sliding gear transmission. The tractor has 5 forward gears and 1 reverse gear, giving farmers good control over their speed. Under the hood, the Super W-4 has a liquid-cooled, 4-cylinder gasoline engine made by International Harvester. The engine size is 164 cubic inches, which is about average for tractors. It runs at 1650 RPM, which is on the lower end compared to other tractors. The tractor weighs 3875 pounds, making it a mid-weight option. It has an electric starter that runs on 6 volts, making it easy to get going in the morning. The Super W-4 is compact, measuring 114 inches long, 67 inches wide, and 81 inches tall. It has a wheelbase of 89.25 inches, which helps with stability. The cooling system holds 16.5 quarts of coolant, keeping the engine running smoothly. This tractor is a good choice for farmers who need a reliable, mid-sized machine for everyday tasks.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick-Deering |
|---|---|
| Model | Super W-4 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 3,875lb |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 4 |
| Displacement | 164ci |
| Bore | 3.5in |
| Stroke | 4.25in |
Transmission
| Type | Sliding gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 114in |
|---|---|
| Width | 67in |
| Height | 81in |
| Operating weight | 3,875lb |
Capacities
| Cooling system | 4.13gal |
|---|
Head to head
Super W-4 vs. Utility median
How the McCormick-Deering Super W-4 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 164 ci | 183 ci | -10% | 43rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 5 | 12 | -58% | 6th |
| Operating Weight | 3,875 lb | 5,303 lb | -27% | 35th |
| Length | 114 in | 137 in | -17% | 19th |
| Width | 67 in | 66 in | +2% | 53rd |
| Height | 81 in | 94.1 in | -14% | 29th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared McCormick-Deering tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick-Deering 15-30 | 40.66 hp | 7,480 lb | — | Compare → |
| McCormick-Deering 22-36 | — | 6,500 lb | — | Compare → |
| McCormick-Deering 45219 | — | 3,700 lb | — | Compare → |
| McCormick-Deering 45585 | 20 hp | 3,700 lb | 1923–1939 | Compare → |
| McCormick-Deering A554 | 57 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
McCormick-Deering siblings
Explore
Similar-spec models
Gallery
McCormick-Deering Super W-4 photos
FAQ
Common questions
What engine configuration does the McCormick-Deering Super W-4 use?
The McCormick-Deering Super W-4 is equipped with a 4-cylinder engine displacing 164 ci.
What is the working weight of the McCormick-Deering Super W-4?
The operating weight of the McCormick-Deering Super W-4 is approximately 3,875 lb.
What type of transmission does the McCormick-Deering Super W-4 have?
The McCormick-Deering Super W-4 uses a Sliding gear transmission offering 5 forward gears.
What routine service does the McCormick-Deering Super W-4 need?
Regular maintenance for the McCormick-Deering Super W-4 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
