McCormick Intl MB65
The McCormick International MB65 is a utility tractor built for everyday farm work. It has a 2-wheel drive system and uses hydrostatic power steering, making it easy to control. The tractor comes with a 24-speed transmission, offering 12 forward and 12 reverse gears. This gives farmers plenty of options for different tasks. Under the hood, the MB65 has a Perkins 1104C-44 diesel engine. This engine has 4 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It's liquid-cooled to keep it running smoothly. The engine puts out 67 horsepower, which is above average for its class. It also has good torque, producing 201 lb-ft at 1400 RPM. The tractor weighs 5,285 pounds and has a wheelbase of 88.5 inches, making it stable for field work. It uses agricultural tires and has a Category II hitch, which lets it work with many farm tools.
Key specifications
- Category
- Utility
- Engine power
- 67hp
- Operating weight
- 5,285 lb
Category comparison
MB65 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
67 hp · 61st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MB65 ranks at the 61st percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl MB65
The McCormick International MB65 is a utility tractor built for everyday farm work. It has a 2-wheel drive system and uses hydrostatic power steering, making it easy to control. The tractor comes with a 24-speed transmission, offering 12 forward and 12 reverse gears. This gives farmers plenty of options for different tasks. Under the hood, the MB65 has a Perkins 1104C-44 diesel engine. This engine has 4 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It's liquid-cooled to keep it running smoothly. The engine puts out 67 horsepower, which is above average for its class. It also has good torque, producing 201 lb-ft at 1400 RPM. The tractor weighs 5,285 pounds and has a wheelbase of 88.5 inches, making it stable for field work. It uses agricultural tires and has a Category II hitch, which lets it work with many farm tools.
Full specifications
Recorded specifications
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | MB65 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,285lb(2,397 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1104C-44 |
| Power | 67hp(49.96 kW) |
| Cylinders | 4 |
| Displacement | 268.5ci(4.4 L) |
| Bore | 4.13in(105 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Forward gears | 12 |
|---|---|
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 134.8in(3,424 mm) |
|---|---|
| Width | 72in(1,829 mm) |
| Height | 100in(2,540 mm) |
| Operating weight | 5,285lb(2,397 kg) |
Closest alternatives
MB65 compared with the nearest models by horsepower
The closest utility models to the McCormick Intl MB65 by rated horsepower are the John Deere 5325 and the John Deere 1650. The John Deere 5325 matches it on rated power and weighs 70 lb more. The John Deere 1650 matches it on rated power and weighs 660 lb less, carrying 69 lb per horsepower against 79 lb.
| Spec | McCormick Intl MB65 | John Deere 5325 | John Deere 1650 |
|---|---|---|---|
| Engine power | 67 hp50 kW | 67 hp50 kW | 67 hp50 kW |
| Operating weight | 5,285 lb2,397 kg | 5,350 lb2,427 kg | 4,630 lb2,100 kg |
| Weight per hp | 79 lb/hp48 kg/kW | 80 lb/hp49 kg/kW | 69 lb/hp42 kg/kW |
| Displacement | 268.5 ci4.4 L | 186.1 ci3.05 L | 190 ci3.11 L |
| Cylinders | 4 | 5 | 4 |
| Transmission | - | Partially synchronized | Sliding gear |
| Drive | 2WD | 2WD | 2WD |
| Years built | - | 2005-2008 | 1984-1988 |
Calculators
Calculators for the MB65
PTO power
About 56 to 60 PTO hp
Estimated from the 67 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 67 hp tractor can run
Maximum size is about a 8 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
92 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
67 hp is 50.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
MB65 vs. Utility median
McCormick Intl MB65 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 67 hp | 55 hp | +22% | 61st |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 5,285 lb | 5,303 lb | 0% | 50th |
| Length | 135 in | 137 in | -1% | 48th |
| Width | 72 in | 66 in | +9% | 65th |
| Height | 100 in | 94.1 in | +6% | 66th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other McCormick Intl models
Other manufacturers
Models with similar horsepower

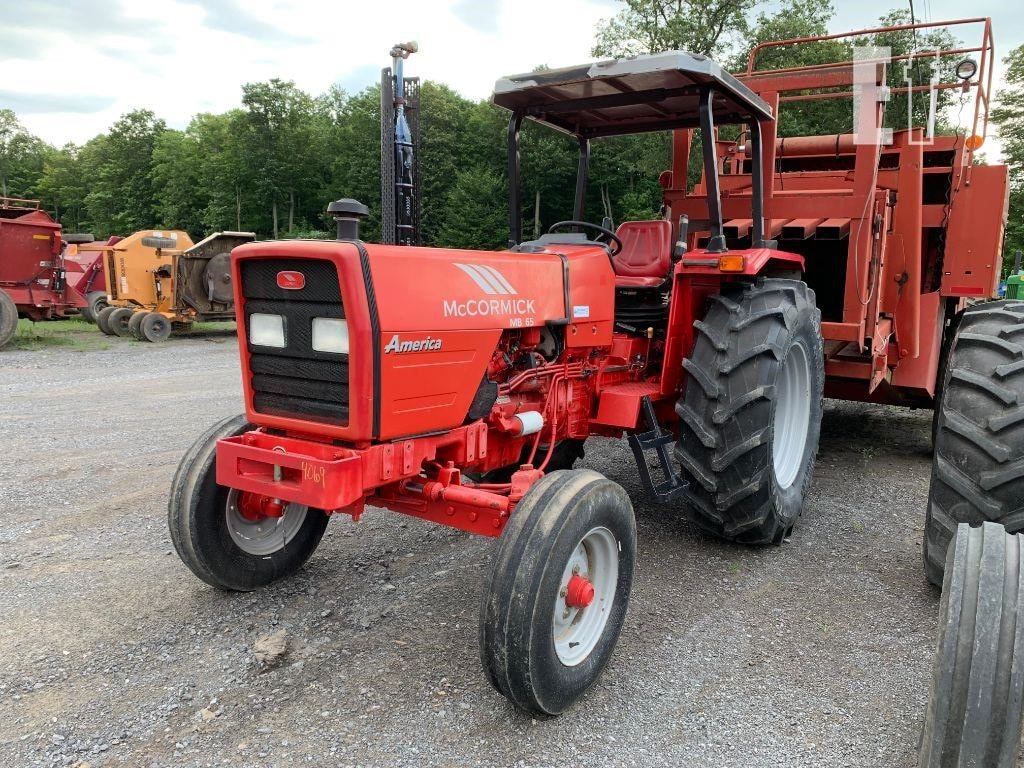

Gallery
McCormick Intl MB65 photos
FAQ
Frequently asked questions
How powerful is the McCormick Intl MB65?
The McCormick Intl MB65 has an engine power output of 67 hp. It is powered by a 4-cylinder engine displacing 268.5 ci.
What hitch category is the McCormick Intl MB65?
The McCormick Intl MB65 uses a Category Category 3 hitch.
What is the working weight of the McCormick Intl MB65?
The operating weight of the McCormick Intl MB65 is approximately 5,285 lb.
What routine service does the McCormick Intl MB65 need?
Regular maintenance for the McCormick Intl MB65 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
