Row CropPerformance profile
McCormick Intl XTX185
The McCormick Intl XTX185 is a powerful row crop tractor built for serious farming. It has a 4-wheel drive system and hydrostatic power steering, making it easy to control in the field. The tractor uses an XtraSpeed powershift transmission with 32 forward gears and 24 reverse gears, giving farmers lots of options for different tasks. Under the hood, the XTX185 has a 6-cylinder Iveco diesel engine that's turbocharged and liquid-cooled. The engine puts out 162 horsepower, which is above average for tractors. It has a displacement of 408.8 cubic inches, which is also above average. The tractor weighs 17,739 pounds, making it a heavy-duty machine. It comes with a three-point hitch (category III) and a PFC hydraulic system for attaching and powering various implements. The XTX185 is big too, measuring 209 inches long and 119 inches tall, with sturdy agricultural tires front and back.
ManufacturerMcCormick IntlPower162 hpEngine6-cylTransXtraSpeed powershift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 162hp
- Operating Weight
- 17,739 lb
- Transmission
- XtraSpeed powershift
At a glance
How the XTX185 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
162 hp · 63rd
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The XTX185 ranks at the 63rd percentile for engine power among recorded row crop tractors.
Overview
About the McCormick Intl XTX185
The McCormick Intl XTX185 is a powerful row crop tractor built for serious farming. It has a 4-wheel drive system and hydrostatic power steering, making it easy to control in the field. The tractor uses an XtraSpeed powershift transmission with 32 forward gears and 24 reverse gears, giving farmers lots of options for different tasks. Under the hood, the XTX185 has a 6-cylinder Iveco diesel engine that's turbocharged and liquid-cooled. The engine puts out 162 horsepower, which is above average for tractors. It has a displacement of 408.8 cubic inches, which is also above average. The tractor weighs 17,739 pounds, making it a heavy-duty machine. It comes with a three-point hitch (category III) and a PFC hydraulic system for attaching and powering various implements. The XTX185 is big too, measuring 209 inches long and 119 inches tall, with sturdy agricultural tires front and back.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | XTX185 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 17,739lb |
Engine
| Make | Iveco |
|---|---|
| Power | 162hp |
| Cylinders | 6 |
| Displacement | 408.8ci |
| Bore | 4.09in |
| Stroke | 5.2in |
Transmission
| Type | XtraSpeed powershift |
|---|---|
| Forward gears | 32 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | PFC |
|---|
Dimensions
| Length | 209in |
|---|---|
| Height | 119in |
| Operating weight | 17,739lb |
Head to head
XTX185 vs. Row Crop median
How the McCormick Intl XTX185 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 162 hp | 138 hp | +17% | 63rd |
| Engine Displacement | 409 ci | 391 ci | +5% | 57th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 32 | 16 | +100% | 91st |
| Operating Weight | 17,739 lb | 12,307 lb | +44% | 76th |
| Length | 209 in | 180 in | +16% | 84th |
| Height | 119 in | 114 in | +5% | 69th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared McCormick Intl tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick Intl MTX155 | 160 hp | 14,440 lb | — | Compare → |
| McCormick Intl MTX165 | 160 hp | 16,185 lb | — | Compare → |
| McCormick Intl X7.460 | 160 hp | 12,680 lb | — | Compare → |
| McCormick Intl X70.50 | 165 hp | 14,330 lb | — | Compare → |
| McCormick Intl X7.670 | 166 hp | 16,200 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO RT155A | 162.5 hp | — | — | Compare → |
| Agrinar T-160 | 161 hp | 13,450 lb | — | Compare → |
| Allis Chalmers HD16A | 163 hp | 31,500 lb | — | Compare → |
| AGCO DT160 | 160 hp | 18,500 lb | 2002–2004 | Compare → |
| Belarus 1507 | 165 hp | 20,283 lb | — | Compare → |
Explore
McCormick Intl siblings
Explore
Similar-spec models
Gallery

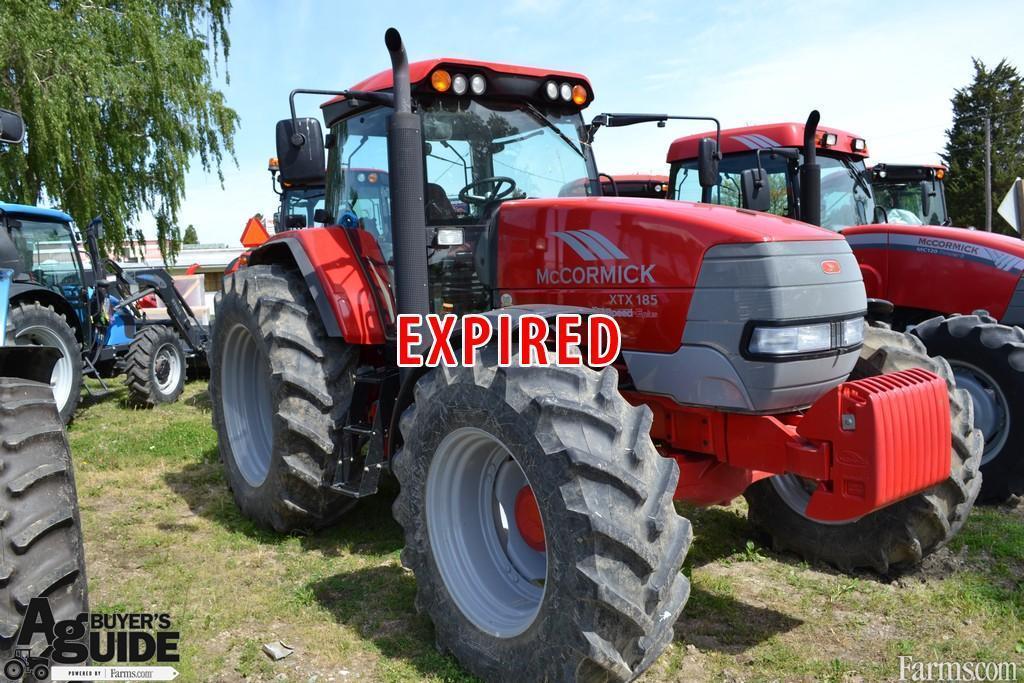

McCormick Intl XTX185 photos
FAQ
Common questions
How powerful is the McCormick Intl XTX185?
The McCormick Intl XTX185 has an engine power output of 162 hp. It is powered by a 6-cylinder engine displacing 408.8 ci.
What type of transmission does the McCormick Intl XTX185 have?
The McCormick Intl XTX185 uses a XtraSpeed powershift transmission offering 32 forward gears.
What type of hydraulic system does the McCormick Intl XTX185 use?
Hydraulics on the McCormick Intl XTX185 are PFC.
What hitch category is the McCormick Intl XTX185?
The McCormick Intl XTX185 uses a Category III hitch.
What is the working weight of the McCormick Intl XTX185?
The operating weight of the McCormick Intl XTX185 is approximately 17,739 lb.
What routine service does the McCormick Intl XTX185 need?
Regular maintenance for the McCormick Intl XTX185 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
