AgriculturalPerformance profile
McCormick Intl ZTX230
The McCormick Intl ZTX230 is a powerful 4WD tractor built for tough farm work. It has a strong Cummins diesel engine with 6 cylinders and 230 horsepower. This engine is turbocharged, which means it can work hard even in tough conditions. The tractor has a lot of gears - 36 forward and 16 reverse - so farmers can choose the right speed for any job. This tractor is big and strong. It's about 17.5 feet long and 10 feet tall. It weighs 22,138 pounds, which helps it grip the ground well. The ZTX230 has big agricultural tires, with 540/65R30 on the front and 650/85R38 on the back. These tires help it move well in fields. The tractor also has a category III hitch, which lets it use many different farm tools. With its size and power, the McCormick Intl ZTX230 is ready for big farm tasks.
ManufacturerMcCormick IntlPower230 hpEngine6-cyl
Quick specs
- Category
- Agricultural
- Engine Power Output
- 230hp
- Operating Weight
- 22,138 lb
At a glance
How the ZTX230 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
230 hp · 85th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The ZTX230 ranks at the 85th percentile for engine power among recorded agricultural tractors.
Overview
About the McCormick Intl ZTX230
The McCormick Intl ZTX230 is a powerful 4WD tractor built for tough farm work. It has a strong Cummins diesel engine with 6 cylinders and 230 horsepower. This engine is turbocharged, which means it can work hard even in tough conditions. The tractor has a lot of gears - 36 forward and 16 reverse - so farmers can choose the right speed for any job. This tractor is big and strong. It's about 17.5 feet long and 10 feet tall. It weighs 22,138 pounds, which helps it grip the ground well. The ZTX230 has big agricultural tires, with 540/65R30 on the front and 650/85R38 on the back. These tires help it move well in fields. The tractor also has a category III hitch, which lets it use many different farm tools. With its size and power, the McCormick Intl ZTX230 is ready for big farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | ZTX230 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 22,138lb |
Engine
| Make | Cummins |
|---|---|
| Power | 230hp |
| Cylinders | 6 |
| Displacement | 506.47ci |
| Bore | 4.49in |
| Stroke | 5.31in |
Transmission
| Forward gears | 36 |
|---|---|
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 210.24in |
|---|---|
| Height | 122.05in |
| Operating weight | 22,138lb |
Head to head
ZTX230 vs. Agricultural median
How the McCormick Intl ZTX230 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 230 hp | 110 hp | +109% | 85th |
| Engine Displacement | 506 ci | 336 ci | +51% | 86th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 36 | 16 | +125% | 94th |
| Operating Weight | 22,138 lb | 10,914 lb | +103% | 88th |
| Length | 210 in | 173 in | +22% | 85th |
| Height | 122 in | 111 in | +10% | 80th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared McCormick Intl tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick Intl ZTX260 | 260 hp | 22,491 lb | — | Compare → |
| McCormick Intl TTX210 | 198 hp | 15,884 lb | — | Compare → |
| McCormick Intl ZTX280 | 280 hp | 23,152 lb | — | Compare → |
| McCormick Intl XTX165 | 162 hp | 14,330 lb | — | Compare → |
| McCormick Intl XTX145 | 145 hp | 14,330 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO DT200 | 235 hp | 19,700 lb | 2002–2004 | Compare → |
| AGCO DT200A | 235 hp | 19,136 lb | 2005–2008 | Compare → |
| AGCO DT225 | 225 hp | 19,700 lb | 2002–2004 | Compare → |
| Allis Chalmers HD21 | 225 hp | 45,500 lb | — | Compare → |
| Belarus 7010 | 235 hp | — | — | Compare → |
Explore
McCormick Intl siblings
Explore
Similar-spec models

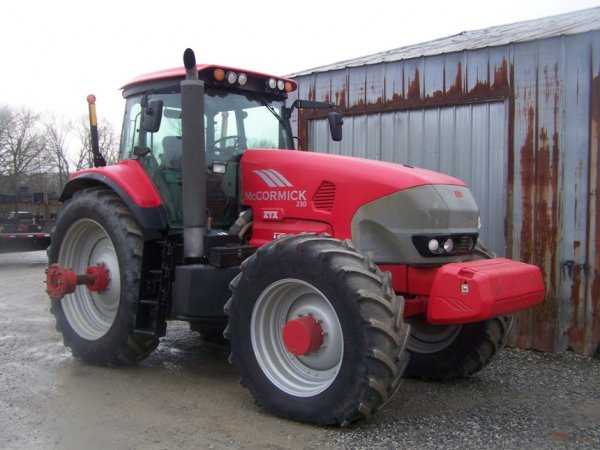

Gallery
McCormick Intl ZTX230 photos
FAQ
Common questions
What is the engine power output of the McCormick Intl ZTX230?
Rated engine output for the McCormick Intl ZTX230 is 230 hp, delivered by a 6-cylinder engine. The engine displaces 506.47 ci.
What is the operating weight of the McCormick Intl ZTX230?
In working trim, the McCormick Intl ZTX230 comes in at roughly 22,138 lb.
What three-point hitch category does the McCormick Intl ZTX230 use?
The McCormick Intl ZTX230 has a Category III three-point hitch.
How do I maintain a McCormick Intl ZTX230?
Routine service for the McCormick Intl ZTX230 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
