Mitsubishi MTZ23
The Mitsubishi MTZ23 is a compact utility tractor built for small farms and property maintenance. It has a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor comes with a 16-speed transmission, offering 8 forward and 8 reverse gears for versatile operation. Under the hood, the MTZ23 features a Mitsubishi S3L2 diesel engine. This 3-cylinder engine is liquid-cooled and naturally aspirated. It has a displacement of 80.4 cubic inches, which is below average for tractors in its class. The engine produces 22.7 horsepower at 2500 RPM, which is also on the lower end of the power range. Despite its smaller size, the MTZ23 is well-suited for light to medium-duty tasks. The tractor weighs 1973 pounds and has a ground clearance of 13 inches, making it suitable for various terrains. Its compact size, measuring 106.3 inches long, 45.5 inches wide, and 75.8 inches tall, allows for easy maneuvering in tight spaces.
ManufacturerMitsubishiPower22.7 hpEngine3-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 23hp
- Operating Weight
- 1,973 lb
At a glance
How the MTZ23 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
22.7 hp · 12th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MTZ23 ranks at the 12th percentile for engine power among recorded utility tractors.
Overview
About the Mitsubishi MTZ23
The Mitsubishi MTZ23 is a compact utility tractor built for small farms and property maintenance. It has a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor comes with a 16-speed transmission, offering 8 forward and 8 reverse gears for versatile operation. Under the hood, the MTZ23 features a Mitsubishi S3L2 diesel engine. This 3-cylinder engine is liquid-cooled and naturally aspirated. It has a displacement of 80.4 cubic inches, which is below average for tractors in its class. The engine produces 22.7 horsepower at 2500 RPM, which is also on the lower end of the power range. Despite its smaller size, the MTZ23 is well-suited for light to medium-duty tasks. The tractor weighs 1973 pounds and has a ground clearance of 13 inches, making it suitable for various terrains. Its compact size, measuring 106.3 inches long, 45.5 inches wide, and 75.8 inches tall, allows for easy maneuvering in tight spaces.
Full specifications
Every recorded spec
General
| Manufacturer | Mitsubishi |
|---|---|
| Model | MTZ23 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 1,973lb |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S3L2 |
| Power | 22.7hp |
| Cylinders | 3 |
| Displacement | 80.4ci |
| Bore | 3.07in |
| Stroke | 3.62in |
Transmission
| Forward gears | 8 |
|---|---|
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 106.3in |
|---|---|
| Width | 45.5in |
| Height | 75.8in |
| Operating weight | 1,973lb |
Head to head
MTZ23 vs. Utility median
How the Mitsubishi MTZ23 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22.7 hp | 55 hp | -59% | 12th |
| Engine Displacement | 80.4 ci | 183 ci | -56% | 12th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 1,973 lb | 5,303 lb | -63% | 12th |
| Length | 106 in | 137 in | -22% | 13th |
| Width | 45.5 in | 66 in | -31% | 11th |
| Height | 75.8 in | 94.1 in | -19% | 21st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Mitsubishi tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Mitsubishi GS23 | 22.7 hp | 1,918 lb | — | Compare → |
| Mitsubishi GS230 | 22.7 hp | — | — | Compare → |
| Mitsubishi GS231 | 22.7 hp | 1,940 lb | — | Compare → |
| Mitsubishi GS232 | 22.7 hp | 2,105 lb | — | Compare → |
| Mitsubishi MT231 | 22.7 hp | 2,778 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
Explore
Mitsubishi siblings
Explore
Similar-spec models
Gallery

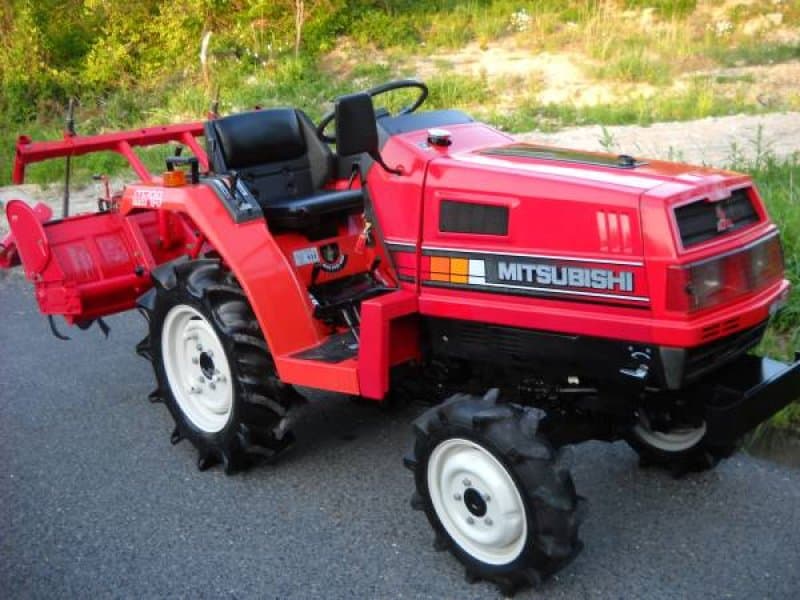

Mitsubishi MTZ23 photos
FAQ
Common questions
What is the engine power output of the Mitsubishi MTZ23?
Rated engine output for the Mitsubishi MTZ23 is 22.7 hp, delivered by a 3-cylinder engine. The engine displaces 80.4 ci.
What is the operating weight of the Mitsubishi MTZ23?
In working trim, the Mitsubishi MTZ23 comes in at roughly 1,973 lb.
How do I maintain a Mitsubishi MTZ23?
Routine service for the Mitsubishi MTZ23 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
