UtilityPerformance profile
New Holland 5610
The New Holland 5610 is a utility tractor built for farm work. It has a 2WD chassis and power steering to help with control. The tractor uses a 16-forward and 8-reverse gear transmission, which gives the driver lots of options for different jobs. Under the hood, there's a Ford diesel engine with 4 cylinders. This engine is pretty strong, with 68.5 horsepower. It's air-cooled and has above average displacement for its class. The tractor is quite heavy, weighing 6300 pounds, which is above average for similar tractors. It has big agricultural tires, with the rear ones being much larger than the front. The tractor is 145 inches long, 68.6 inches wide, and 106.6 inches tall. The 5610 comes with helpful features for farming. It has a three-point hitch for attaching tools and an open center hydraulic system. The driver sits in a ROPS (Roll-Over Protective Structure) for safety. This tractor is a good choice for farmers who need a reliable machine for various tasks around the farm.
ManufacturerNew HollandPower68.5 hpEngine4-cylTransSynchromesh partial power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 69hp
- Operating Weight
- 6,300 lb
- Transmission
- Synchromesh partial power shift
At a glance
How the 5610 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
68.5 hp · 62nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5610 ranks at the 62nd percentile for engine power among recorded utility tractors.
Overview
About the New Holland 5610
The New Holland 5610 is a utility tractor built for farm work. It has a 2WD chassis and power steering to help with control. The tractor uses a 16-forward and 8-reverse gear transmission, which gives the driver lots of options for different jobs. Under the hood, there's a Ford diesel engine with 4 cylinders. This engine is pretty strong, with 68.5 horsepower. It's air-cooled and has above average displacement for its class. The tractor is quite heavy, weighing 6300 pounds, which is above average for similar tractors. It has big agricultural tires, with the rear ones being much larger than the front. The tractor is 145 inches long, 68.6 inches wide, and 106.6 inches tall. The 5610 comes with helpful features for farming. It has a three-point hitch for attaching tools and an open center hydraulic system. The driver sits in a ROPS (Roll-Over Protective Structure) for safety. This tractor is a good choice for farmers who need a reliable machine for various tasks around the farm.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 5610 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 6,300lb |
Engine
| Make | Ford |
|---|---|
| Power | 68.5hp |
| Cylinders | 4 |
| Displacement | 256ci |
| Bore | 4.4in |
| Stroke | 4.2in |
Transmission
| Type | Synchromesh partial power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power assist |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 145in |
|---|---|
| Width | 68.6in |
| Height | 106.6in |
| Operating weight | 6,300lb |
Capacities
| Cooling system | 3.38gal |
|---|
Head to head
5610 vs. Utility median
How the New Holland 5610 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 68.5 hp | 55 hp | +25% | 62nd |
| Engine Displacement | 256 ci | 183 ci | +40% | 73rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,300 lb | 5,303 lb | +19% | 60th |
| Length | 145 in | 137 in | +6% | 61st |
| Width | 68.6 in | 66 in | +4% | 57th |
| Height | 107 in | 94.1 in | +13% | 80th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland TL80 | 68.1 hp | 7,825 lb | 1999–2004 | Compare → |
| New Holland TN70 | 69 hp | 4,850 lb | 2000–2003 | Compare → |
| New Holland 5010 | 70 hp | 5,286 lb | — | Compare → |
| New Holland New Holland Ford 5635 | 66.66 hp | 7,540 lb | 1996–1999 | Compare → |
| New Holland T4030 | 66.4 hp | 7,200 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro SRX 8400 | 70 hp | 4,486 lb | — | Compare → |
| Barreiros 5500 | 67 hp | — | — | Compare → |
| Barreiros 7000 | 70 hp | 5,335 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

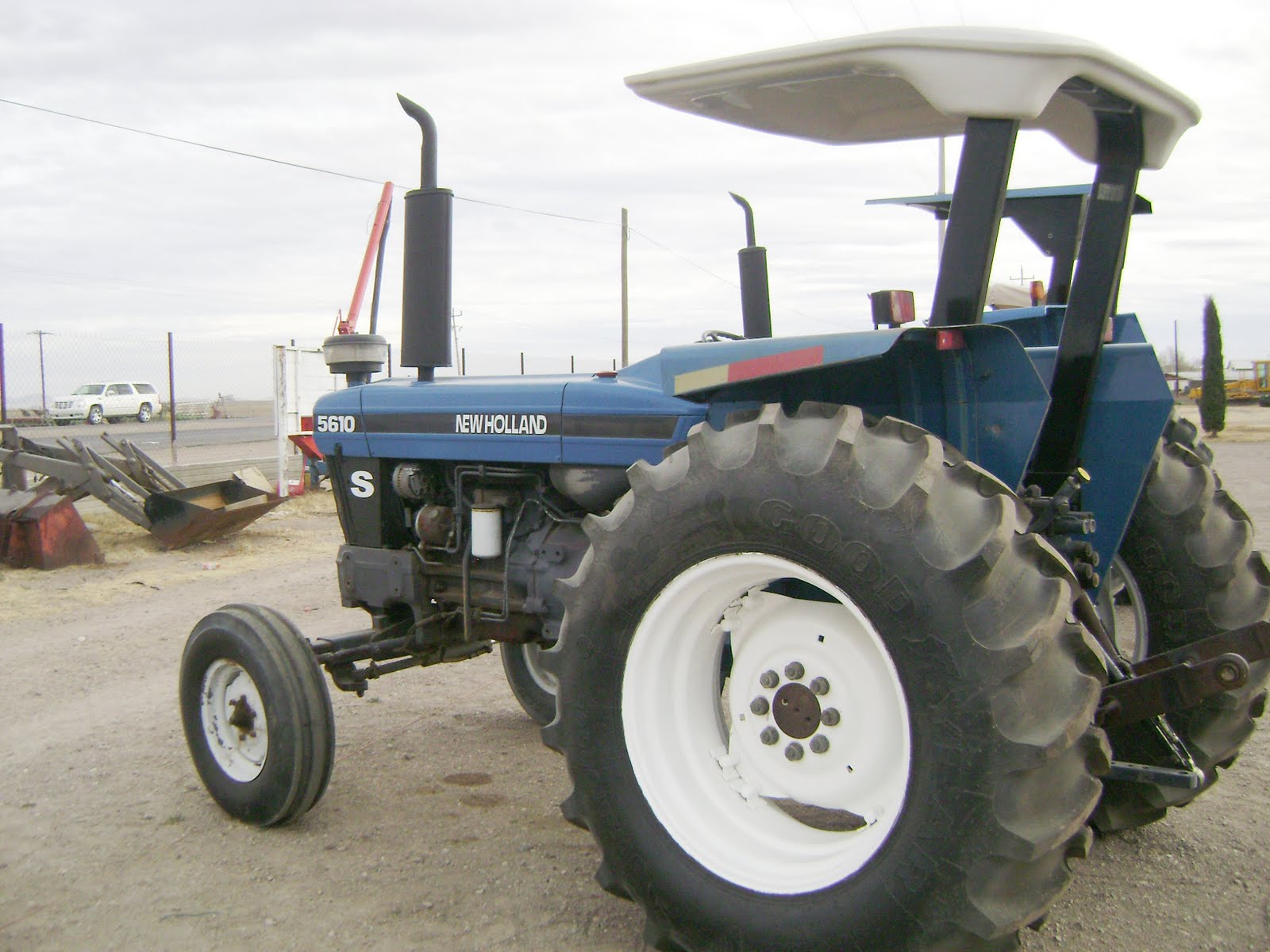

New Holland 5610 photos
FAQ
Common questions
How much horsepower does the New Holland 5610 have?
The New Holland 5610 produces 68.5 hp from its 4-cylinder engine. Engine displacement is 256 ci.
What hydraulics does the New Holland 5610 have?
The New Holland 5610 uses an Open center hydraulic system.
What three-point hitch category does the New Holland 5610 use?
The New Holland 5610 has a Category II/I three-point hitch.
How much does the New Holland 5610 weigh?
The New Holland 5610 weighs about 6,300 lb in operating condition.
What transmission is in the New Holland 5610?
Transmission on the New Holland 5610 is Synchromesh partial power shift, with 16 forward speeds.
What maintenance does the New Holland 5610 require?
Like any tractor, the New Holland 5610 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
