UtilityPerformance profile
New Holland T9060
The New Holland T9060 is a powerful utility tractor built for big jobs. It has a 4x4 articulated chassis and four-wheel drive, making it great for tough terrain. The tractor is powered by a Cummins QSX15 diesel engine with 6 cylinders. This engine is very strong, producing 535 horsepower at 2100 RPM. It's also turbocharged, which means it can work hard without getting tired. This tractor is big and heavy, weighing 54,000 pounds. It's 298 inches long and 150 inches tall, with large 42-inch agricultural tires. The T9060 has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of control. It also has hydrostatic power steering, making it easy to turn despite its size. The tractor has a closed center load sensing hydraulic system, which is great for using attachments. With its very high engine power and weight, the New Holland T9060 is built to handle the toughest farming tasks with ease.
ManufacturerNew HollandPower535 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 535hp
- Operating Weight
- 54,000 lb
- Transmission
- Full power shift
At a glance
How the T9060 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
535 hp · 99th
This model
9
Median 55 hp
177
535
This modelUtility tractorsMediann = 5,383
The T9060 ranks at the 99th percentile for engine power among recorded utility tractors.
Overview
About the New Holland T9060
The New Holland T9060 is a powerful utility tractor built for big jobs. It has a 4x4 articulated chassis and four-wheel drive, making it great for tough terrain. The tractor is powered by a Cummins QSX15 diesel engine with 6 cylinders. This engine is very strong, producing 535 horsepower at 2100 RPM. It's also turbocharged, which means it can work hard without getting tired. This tractor is big and heavy, weighing 54,000 pounds. It's 298 inches long and 150 inches tall, with large 42-inch agricultural tires. The T9060 has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of control. It also has hydrostatic power steering, making it easy to turn despite its size. The tractor has a closed center load sensing hydraulic system, which is great for using attachments. With its very high engine power and weight, the New Holland T9060 is built to handle the toughest farming tasks with ease.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | T9060 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 54,000lb |
Engine
| Make | Cummins |
|---|---|
| Model | QSX15 |
| Power | 535hp |
| Cylinders | 6 |
| Displacement | 915ci |
| Bore | 5.4in |
| Stroke | 6.7in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center load sensing (CCLS) |
|---|
Dimensions
| Length | 298in |
|---|---|
| Height | 150in |
| Operating weight | 54,000lb |
Capacities
| Cooling system | 21.1gal |
|---|
Head to head
T9060 vs. Utility median
How the New Holland T9060 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 535 hp | 55 hp | +873% | 99th |
| Engine Displacement | 915 ci | 183 ci | +400% | 99th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 54,000 lb | 5,303 lb | +918% | 99th |
| Length | 298 in | 137 in | +118% | 99th |
| Height | 150 in | 94.1 in | +59% | 99th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T9.615 | 542 hp | 56,000 lb | — | Compare → |
| New Holland T9.565 | 500 hp | 36,048 lb | — | Compare → |
| New Holland T9.645 | 580 hp | 44,046 lb | — | Compare → |
| New Holland T9.530 | 470 hp | 36,048 lb | — | Compare → |
| New Holland T9.505 | 457 hp | 49,500 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Quadtrac Steiger 530QT | 535 hp | 52,410 lb | — | Compare → |
| CaseIH Steiger 535 | 535 hp | 42,639 lb | — | Compare → |
| CaseIH Steiger 535QT Quadtrac | 535 hp | 52,410 lb | — | Compare → |
| CaseIH Steiger 540 | 535 hp | 43,855 lb | — | Compare → |
| CaseIH Steiger 540 Quadtrac | 535 hp | 47,780 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

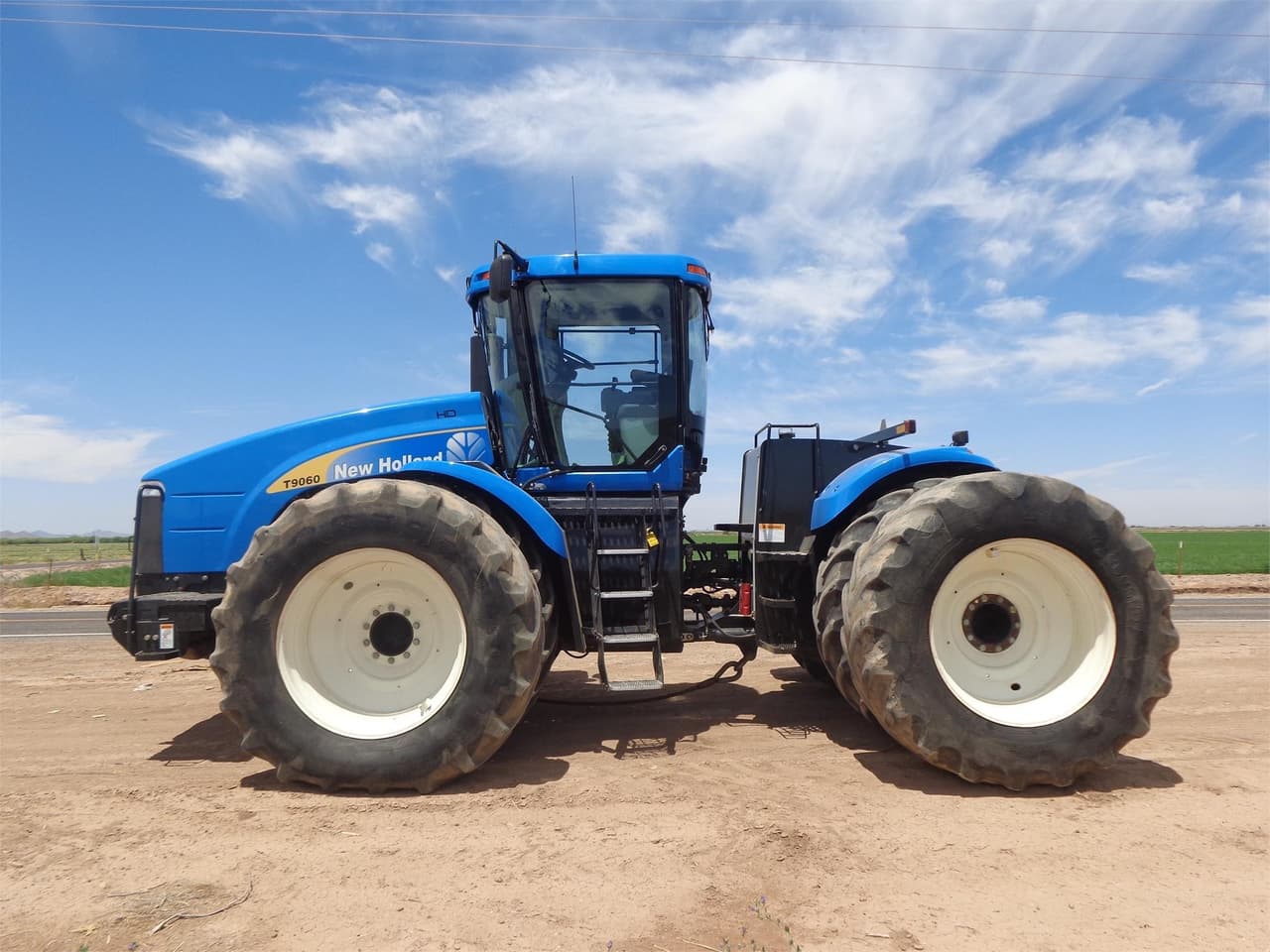

New Holland T9060 photos
FAQ
Common questions
How much horsepower does the New Holland T9060 have?
The New Holland T9060 produces 535 hp from its 6-cylinder engine. Engine displacement is 915 ci.
How much does the New Holland T9060 weigh?
The New Holland T9060 weighs about 54,000 lb in operating condition.
What transmission is in the New Holland T9060?
Transmission on the New Holland T9060 is Full power shift, with 16 forward speeds.
What type of hydraulic system does the New Holland T9060 use?
Hydraulics on the New Holland T9060 are Closed center load sensing (CCLS).
What maintenance does the New Holland T9060 require?
Like any tractor, the New Holland T9060 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
