CaseIH Steiger 540
The CaseIH Steiger 540 is a powerful four-wheel drive tractor built for big jobs on the farm. It has a strong engine made by FPT that runs on diesel fuel. This engine has 6 cylinders and can produce 535 horsepower, which is a lot of power for tough tasks. The tractor uses a special cooling system to keep the engine running smoothly. This big tractor is designed to handle large fields with ease. It has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of options for different speeds. The Steiger 540 is very large, measuring 300 inches long, 120 inches wide, and 156 inches tall. It's also quite heavy, weighing 43,855 pounds. The tractor has a comfortable cab for the driver and uses hydraulic steering to make turning easier. It comes with big radial tires on all four wheels, which help it grip the ground well.
ManufacturerCaseIHPower535 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Four-Wheel Drive
- Engine Power Output
- 535hp
- Operating Weight
- 43,855 lb
- Transmission
- Full power shift
At a glance
How the Steiger 540 compares
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
Across all Four-Wheel Drive tractors
535 hp · 84th
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The Steiger 540 ranks at the 84th percentile for engine power among recorded four-wheel drive tractors.
Overview
About the CaseIH Steiger 540
The CaseIH Steiger 540 is a powerful four-wheel drive tractor built for big jobs on the farm. It has a strong engine made by FPT that runs on diesel fuel. This engine has 6 cylinders and can produce 535 horsepower, which is a lot of power for tough tasks. The tractor uses a special cooling system to keep the engine running smoothly. This big tractor is designed to handle large fields with ease. It has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of options for different speeds. The Steiger 540 is very large, measuring 300 inches long, 120 inches wide, and 156 inches tall. It's also quite heavy, weighing 43,855 pounds. The tractor has a comfortable cab for the driver and uses hydraulic steering to make turning easier. It comes with big radial tires on all four wheels, which help it grip the ground well.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Steiger 540 |
| Category | Four-Wheel Drive tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 43,855lb |
Engine
| Make | FPT |
|---|---|
| Power | 535hp |
| Cylinders | 6 |
| Displacement | 787ci |
| Bore | 5.31in |
| Stroke | 5.91in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydraulic articulated |
| Cab | Cab |
Hydraulics
| Type | Pressure flow compensated |
|---|
Dimensions
| Length | 300in |
|---|---|
| Width | 120in |
| Height | 156in |
| Operating weight | 43,855lb |
Head to head
Steiger 540 vs. Four-Wheel Drive median
How the CaseIH Steiger 540 compares to other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 535 hp | 375 hp | +43% | 84th |
| Engine Displacement | 787 ci | 826 ci | -5% | 39th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 43,855 lb | 37,428 lb | +17% | 72nd |
| Length | 300 in | 275 in | +9% | 79th |
| Width | 120 in | 116 in | +4% | 65th |
| Height | 156 in | 143 in | +9% | 95th |
Medians and percentiles are computed from the four-wheel drive tractors in our database with a recorded value for each spec (sample sizes 71–162 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH STX530 | 530 hp | 54,000 lb | — | Compare → |
| CaseIH Steiger 550 | 550 hp | 44,046 lb | — | Compare → |
| CaseIH Steiger 500 | 500 hp | 39,492 lb | — | Compare → |
| CaseIH STX500 | 500 hp | 54,000 lb | — | Compare → |
| CaseIH Steiger 485 | 485 hp | 38,500 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger MT865C | 533.87 hp | 43,125 lb | — | Compare → |
| Baldwin DM525 | 525 hp | — | — | Compare → |
| Baldwin DP525 | 525 hp | — | — | Compare → |
| Big Bud 525/20 | 525 hp | — | — | Compare → |
| Big Bud 525/50 | 525 hp | 52,000 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

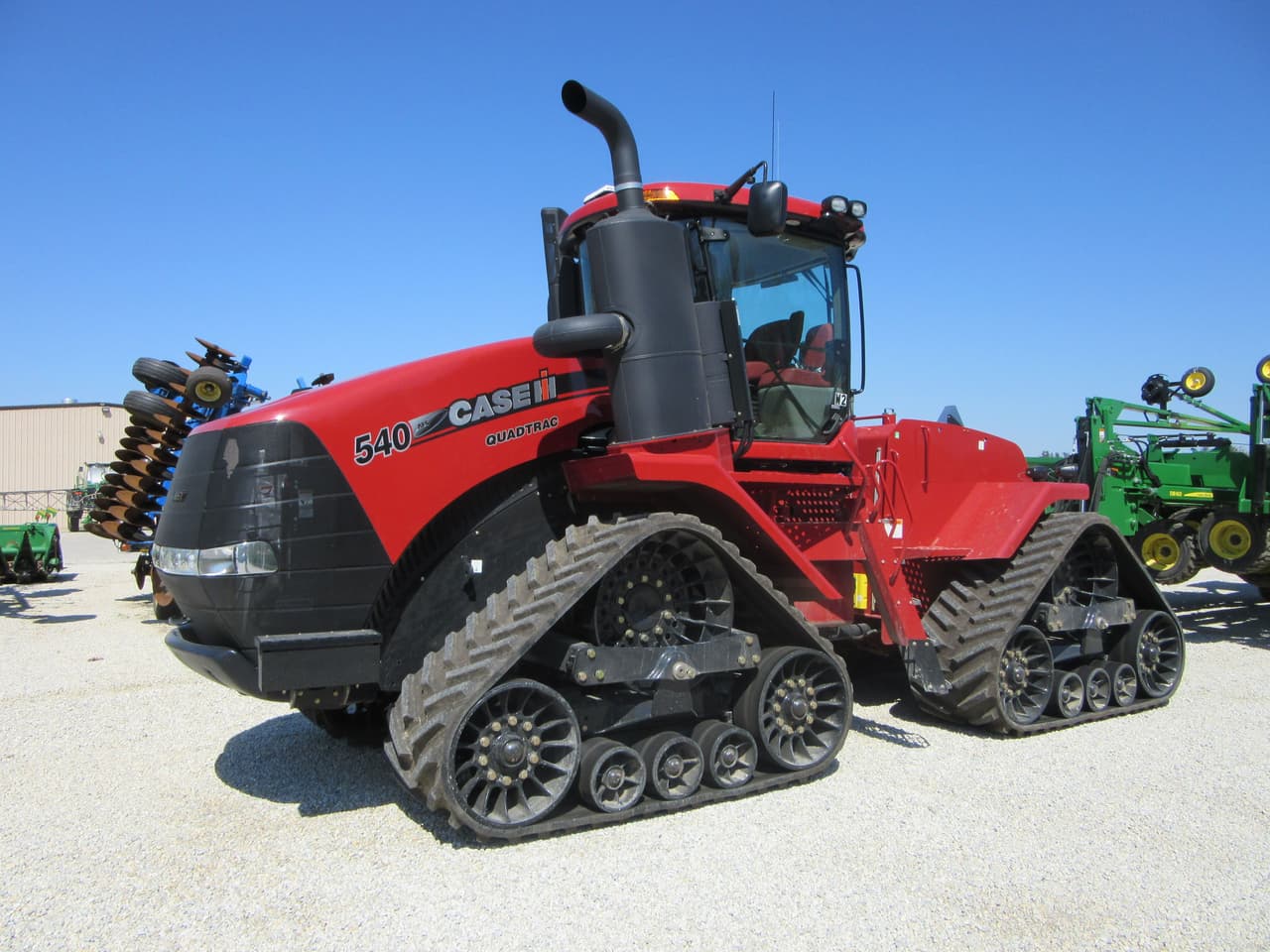

CaseIH Steiger 540 photos
FAQ
Common questions
How much horsepower does the CaseIH Steiger 540 have?
The CaseIH Steiger 540 produces 535 hp from its 6-cylinder engine. Engine displacement is 787 ci.
How much does the CaseIH Steiger 540 weigh?
The CaseIH Steiger 540 weighs about 43,855 lb in operating condition.
What transmission is in the CaseIH Steiger 540?
Transmission on the CaseIH Steiger 540 is Full power shift, with 16 forward speeds.
What type of hydraulic system does the CaseIH Steiger 540 use?
Hydraulics on the CaseIH Steiger 540 are Pressure flow compensated.
What maintenance does the CaseIH Steiger 540 require?
Like any tractor, the CaseIH Steiger 540 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
