UtilityPerformance profile
New Holland TL5060
The New Holland TL5060 is a utility tractor built from 2007 to 2011. It's a 2WD model with a 4x2 chassis and hydrostatic power steering. This tractor is powered by a Weifang-Deutz TD 226B-4 engine, which is a 4-cylinder, turbocharged diesel engine. The engine is liquid-cooled and has a displacement of 253.6 ci, which is above average for tractors in its class. It produces 100 hp at 2500 rpm, giving it very high power output compared to similar models. The TL5060 features a Shuttle Command transmission with 12 forward and 12 reverse gears, offering plenty of options for different tasks. It has agricultural tires on both front and rear, with the front tires measuring 7.5 inches wide and the rear tires 16.9 inches wide. The tractor is 154.1 inches long and 100 inches high at the exhaust. Weighing 7022 lb, it has an above-average operating weight. The TL5060 comes with a category II hitch and an electric starter, making it suitable for a wide range of farming applications.
ManufacturerNew HollandPower100 hpEngine4-cylTransShuttle Command
Quick specs
- Category
- Utility
- Engine Power Output
- 100hp
- Operating Weight
- 7,022 lb
- Transmission
- Shuttle Command
At a glance
How the TL5060 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
100 hp · 84th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TL5060 ranks at the 84th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TL5060
The New Holland TL5060 is a utility tractor built from 2007 to 2011. It's a 2WD model with a 4x2 chassis and hydrostatic power steering. This tractor is powered by a Weifang-Deutz TD 226B-4 engine, which is a 4-cylinder, turbocharged diesel engine. The engine is liquid-cooled and has a displacement of 253.6 ci, which is above average for tractors in its class. It produces 100 hp at 2500 rpm, giving it very high power output compared to similar models. The TL5060 features a Shuttle Command transmission with 12 forward and 12 reverse gears, offering plenty of options for different tasks. It has agricultural tires on both front and rear, with the front tires measuring 7.5 inches wide and the rear tires 16.9 inches wide. The tractor is 154.1 inches long and 100 inches high at the exhaust. Weighing 7022 lb, it has an above-average operating weight. The TL5060 comes with a category II hitch and an electric starter, making it suitable for a wide range of farming applications.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TL5060 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2007–2011 |
| Operating weight | 7,022lb |
Engine
| Make | Weifang-Deutz |
|---|---|
| Model | TD 226B-4 |
| Power | 100hp |
| Cylinders | 4 |
| Displacement | 253.6ci |
| Bore | 4.13in |
| Stroke | 4.72in |
Transmission
| Type | Shuttle Command |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | hydrostatic power |
Dimensions
| Length | 154.1in |
|---|---|
| Height | 100in |
| Operating weight | 7,022lb |
Head to head
TL5060 vs. Utility median
How the New Holland TL5060 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 100 hp | 55 hp | +82% | 84th |
| Engine Displacement | 254 ci | 183 ci | +39% | 72nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,022 lb | 5,303 lb | +32% | 67th |
| Length | 154 in | 137 in | +13% | 71st |
| Height | 100 in | 94.1 in | +6% | 66th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland 7810S | 100 hp | 7,721 lb | 1994–2003 | Compare → |
| New Holland T5.100 | 100 hp | — | — | Compare → |
| New Holland TB100 | 100 hp | 6,075 lb | — | Compare → |
| New Holland PowerStar 100 | 99 hp | 6,988 lb | — | Compare → |
| New Holland T5070 | 98.6 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
| Belarus 1005 | 100 hp | 8,874 lb | — | Compare → |
| Belarus 1025 | 100 hp | 9,144 lb | — | Compare → |
| Agrinar T-100 | 97.9 hp | 3,850 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

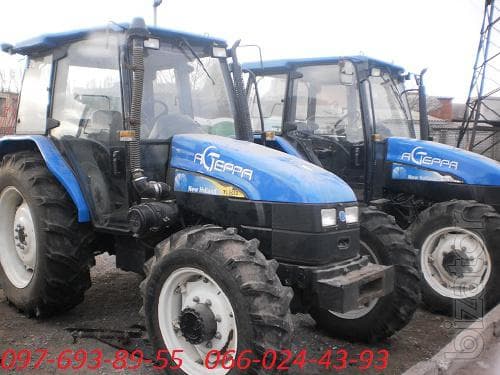

New Holland TL5060 photos
FAQ
Common questions
When was the New Holland TL5060 made?
The New Holland TL5060 was manufactured from 2007 to 2011.
What hitch category is the New Holland TL5060?
The New Holland TL5060 uses a Category II hitch.
What is the engine power output of the New Holland TL5060?
Rated engine output for the New Holland TL5060 is 100 hp, delivered by a 4-cylinder engine. The engine displaces 253.6 ci.
What is the operating weight of the New Holland TL5060?
In working trim, the New Holland TL5060 comes in at roughly 7,022 lb.
Which transmission does the New Holland TL5060 use?
The New Holland TL5060 is equipped with a Shuttle Command transmission with 12 forward gears.
How do I maintain a New Holland TL5060?
Routine service for the New Holland TL5060 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
