Utility tractorsSpec sheet
New Holland TB100
The New Holland TB100 is a utility tractor built for hard work on the farm. It has a 2WD chassis and power steering, making it easy to handle. The tractor comes with a gear transmission that has 16 forward speeds and 4 reverse speeds, giving you lots of options for different jobs. Under the hood, the TB100 has a strong diesel engine made by New Holland. This engine has 4 cylinders and is turbocharged, which means it has extra power. It can produce 100 horsepower, which is above average for tractors like this. The engine size is also above average, measuring 304 cubic inches. This tractor weighs 6,075 pounds, which is about average for its class. It has a Category II hitch, perfect for attaching many farm tools. The TB100 is designed with safety in mind, featuring a ROPS (Roll-Over Protection Structure) to keep the driver safe. It has an open center hydraulic system and starts up easily with an electric starter. At 147 inches long and 99.5 inches tall, this tractor is a good size for many farm tasks. New Holland is known for making reliable farm equipment, and the TB100 is no exception.
ManufacturerNew HollandPower100 hp(74.6 kW)Class100–150 HP tractors →Engine4-cylinderTransmissionGear, Two-speed power shift, Creeper
Key specifications
- Category
- Utility
- Engine power
- 100hp
- Operating weight
- 6,075 lb
- Transmission
- Gear, Two-speed power shift, Creeper
Category comparison
TB100 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
100 hp · 84th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TB100 ranks at the 84th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TB100
The New Holland TB100 is a utility tractor built for hard work on the farm. It has a 2WD chassis and power steering, making it easy to handle. The tractor comes with a gear transmission that has 16 forward speeds and 4 reverse speeds, giving you lots of options for different jobs. Under the hood, the TB100 has a strong diesel engine made by New Holland. This engine has 4 cylinders and is turbocharged, which means it has extra power. It can produce 100 horsepower, which is above average for tractors like this. The engine size is also above average, measuring 304 cubic inches. This tractor weighs 6,075 pounds, which is about average for its class. It has a Category II hitch, perfect for attaching many farm tools. The TB100 is designed with safety in mind, featuring a ROPS (Roll-Over Protection Structure) to keep the driver safe. It has an open center hydraulic system and starts up easily with an electric starter. At 147 inches long and 99.5 inches tall, this tractor is a good size for many farm tasks. New Holland is known for making reliable farm equipment, and the TB100 is no exception.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | TB100 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 6,075lb(2,756 kg) |
Engine
| Make | New Holland |
|---|---|
| Power | 100hp(74.57 kW) |
| Cylinders | 4 |
| Displacement | 304ci(4.98 L) |
| Bore | 4.4in(111.8 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Gear, Two-speed power shift, Creeper |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | ROPS (Roll-Over Protection Structure) |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 147in(3,734 mm) |
|---|---|
| Height | 99.5in(2,527 mm) |
| Operating weight | 6,075lb(2,756 kg) |
Capacities
| Cooling system | 3.4gal(12.87 L) |
|---|
Closest alternatives
TB100 compared with the nearest models by horsepower
The closest utility models to the New Holland TB100 by rated horsepower are the New Holland TL5060 and the New Holland 7810S. The New Holland TL5060 matches it on rated power and weighs 950 lb more, so it carries more weight per horsepower, which helps traction in draft work. The New Holland 7810S matches it on rated power and weighs 1,650 lb more, at 77 lb per horsepower against 61 lb. Of the 3 models, the TB100 has the lowest weight per horsepower at 61 lb per hp.
| Spec | New Holland TB100 | New Holland TL5060 | New Holland 7810S |
|---|---|---|---|
| Engine power | 100 hp74.6 kW | 100 hp74.6 kW | 100 hp74.6 kW |
| Operating weight | 6,075 lb2,756 kg | 7,022 lb3,185 kg | 7,721 lb3,502 kg |
| Weight per hp | 61 lb/hp37 kg/kW | 70 lb/hp43 kg/kW | 77 lb/hp47 kg/kW |
| Displacement | 304 ci4.98 L | 253.6 ci4.16 L | 401 ci6.57 L |
| Cylinders | 4 | 4 | 6 |
| Transmission | Gear, Two-speed power shift, Creeper | Shuttle Command | Unsynchronized gear and two-speed power shift |
| Drive | 2WD | 2WD | 2WD |
| Years built | - | 2007-2011 | 1994-2003 |
Calculators
Calculators for the TB100
PTO power
About 83 to 90 PTO hp
Estimated from the 100 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 100 hp tractor can run
Maximum size is about a 12 ft rotary cutter or a 10 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
71 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
100 hp is 74.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
TB100 vs. Utility median
New Holland TB100 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 100 hp | 55 hp | +82% | 84th |
| Engine Displacement | 304 ci | 183 ci | +66% | 84th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,075 lb | 5,303 lb | +15% | 57th |
| Length | 147 in | 137 in | +8% | 63rd |
| Height | 99.5 in | 94.1 in | +6% | 64th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

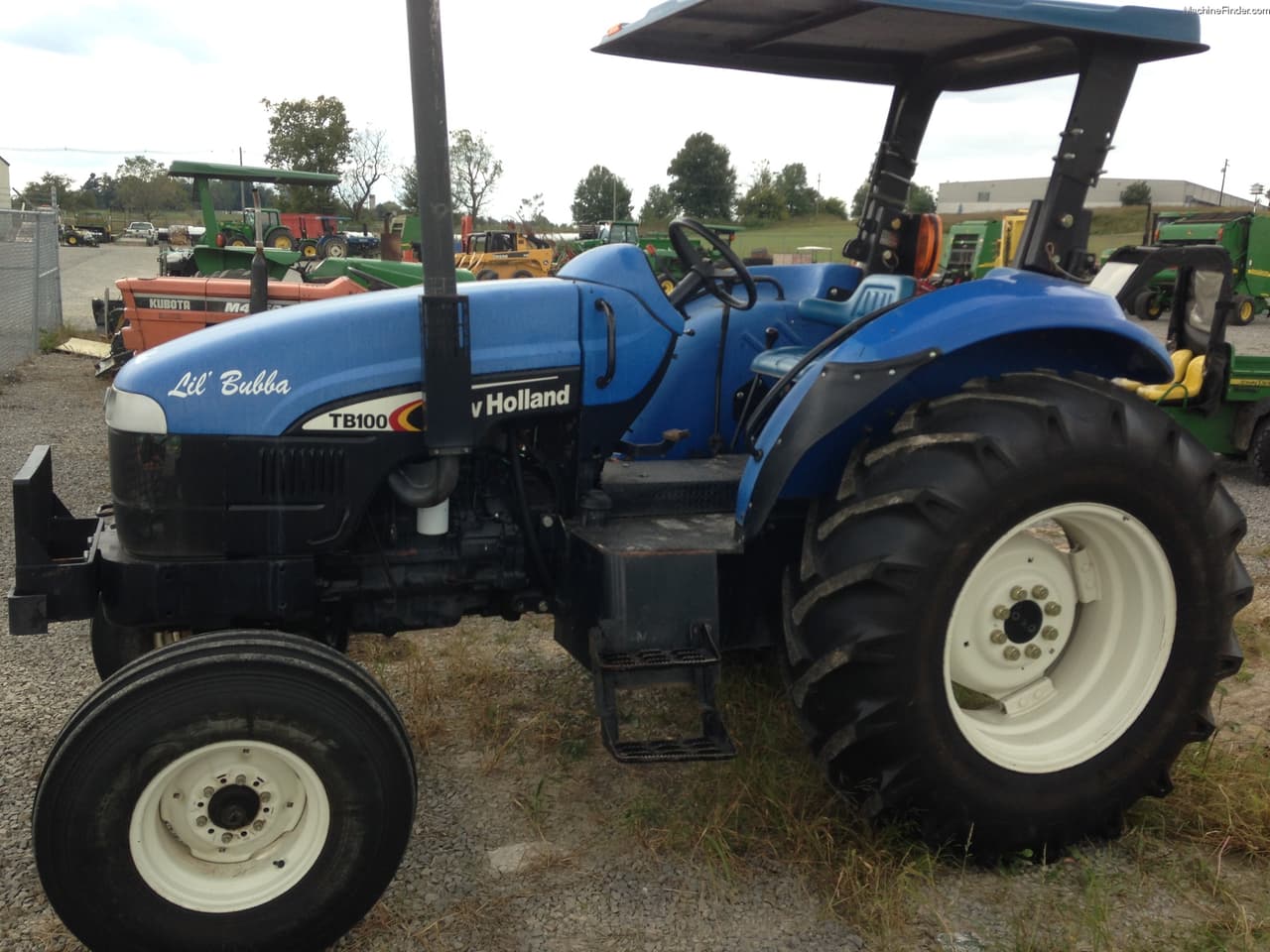

New Holland TB100 photos
FAQ
Frequently asked questions
How much horsepower does the New Holland TB100 have?
The New Holland TB100 produces 100 hp from its 4-cylinder engine. Engine displacement is 304 ci.
What transmission is in the New Holland TB100?
Transmission on the New Holland TB100 is Gear, Two-speed power shift, Creeper, with 16 forward speeds.
What type of hydraulic system does the New Holland TB100 use?
Hydraulics on the New Holland TB100 are Open center.
What hitch category is the New Holland TB100?
The New Holland TB100 uses a Category II hitch.
How much does the New Holland TB100 weigh?
The New Holland TB100 weighs about 6,075 lb in operating condition.
What maintenance does the New Holland TB100 require?
The New Holland TB100 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
