UtilityPerformance profile
New Holland TT75A
The New Holland TT75A is a utility tractor built from 2007 to 2008. It's a 2-wheel drive model with power steering, making it easy to handle. The tractor has an 8-speed forward and 2-speed reverse transmission, giving farmers good control over their work. Under the hood, the TT75A has a strong Iveco diesel engine with 4 cylinders. It puts out 75 horsepower, which is above average for tractors of its size. The engine is liquid-cooled and has a displacement of 238 cubic inches, also above average. This tractor weighs 4,740 pounds, which is about average for its class. It has a powerful rear hitch that can lift up to 3,408.4 pounds, which is very high compared to similar tractors. The TT75A also features an open center hydraulic system and electric starter, making it reliable and easy to use on the farm.
ManufacturerNew HollandPower75 hpEngine4-cylTransPartially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 75hp
- Operating Weight
- 4,740 lb
- Transmission
- Partially synchronized
At a glance
How the TT75A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
75 hp · 68th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TT75A ranks at the 68th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TT75A
The New Holland TT75A is a utility tractor built from 2007 to 2008. It's a 2-wheel drive model with power steering, making it easy to handle. The tractor has an 8-speed forward and 2-speed reverse transmission, giving farmers good control over their work. Under the hood, the TT75A has a strong Iveco diesel engine with 4 cylinders. It puts out 75 horsepower, which is above average for tractors of its size. The engine is liquid-cooled and has a displacement of 238 cubic inches, also above average. This tractor weighs 4,740 pounds, which is about average for its class. It has a powerful rear hitch that can lift up to 3,408.4 pounds, which is very high compared to similar tractors. The TT75A also features an open center hydraulic system and electric starter, making it reliable and easy to use on the farm.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TT75A |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2007–2008 |
| Operating weight | 4,740lb |
Engine
| Make | Iveco |
|---|---|
| Power | 75hp |
| Cylinders | 4 |
| Displacement | 238ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Operating weight | 4,740lb |
|---|
Head to head
TT75A vs. Utility median
How the New Holland TT75A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 75 hp | 55 hp | +36% | 68th |
| Engine Displacement | 238 ci | 183 ci | +30% | 65th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,740 lb | 5,303 lb | -11% | 45th |
| 3-Point Hitch Capacity | 3,408 lb | 3,197 lb | +7% | 57th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland 5610S | 75 hp | 5,659 lb | 1994–2003 | Compare → |
| New Holland L75 | 75 hp | 6,393 lb | — | Compare → |
| New Holland TL75E | 75 hp | — | 2002+ | Compare → |
| New Holland TL75E Exitus | 75 hp | 6,945 lb | — | Compare → |
| New Holland TN75 | 75 hp | 4,700 lb | 1999–2003 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

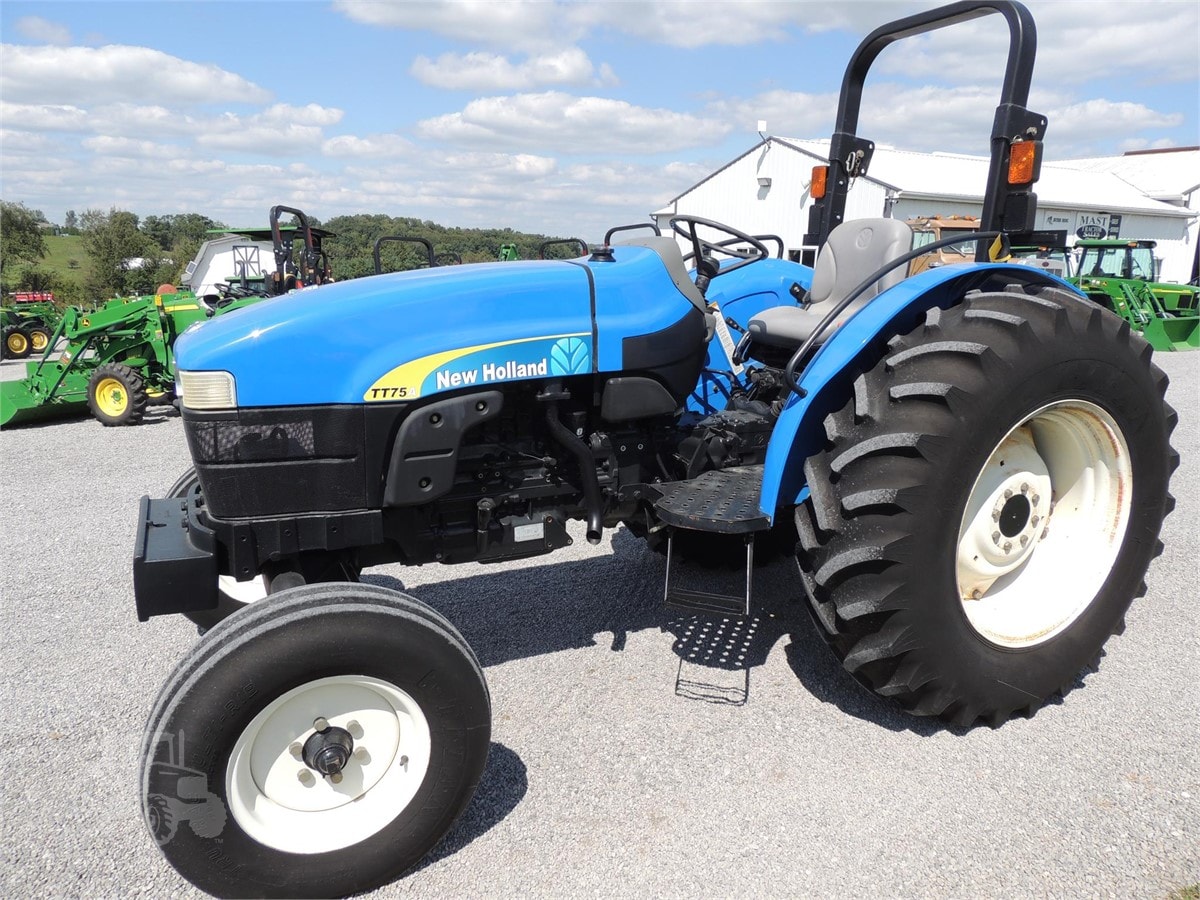

New Holland TT75A photos
FAQ
Common questions
When was the New Holland TT75A in production?
New Holland TT75A production started in 2007 and ended in 2008.
What hitch category is the New Holland TT75A?
The New Holland TT75A uses a Category II/I hitch with a lift capacity of 3,408.4 lb.
How much horsepower does the New Holland TT75A have?
The New Holland TT75A produces 75 hp from its 4-cylinder engine. Engine displacement is 238 ci.
How much does the New Holland TT75A weigh?
The New Holland TT75A weighs about 4,740 lb in operating condition.
What transmission is in the New Holland TT75A?
Transmission on the New Holland TT75A is Partially synchronized, with 8 forward speeds.
What type of hydraulic system does the New Holland TT75A use?
Hydraulics on the New Holland TT75A are Open center.
What maintenance does the New Holland TT75A require?
Like any tractor, the New Holland TT75A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
