Utility tractorsSpec sheet

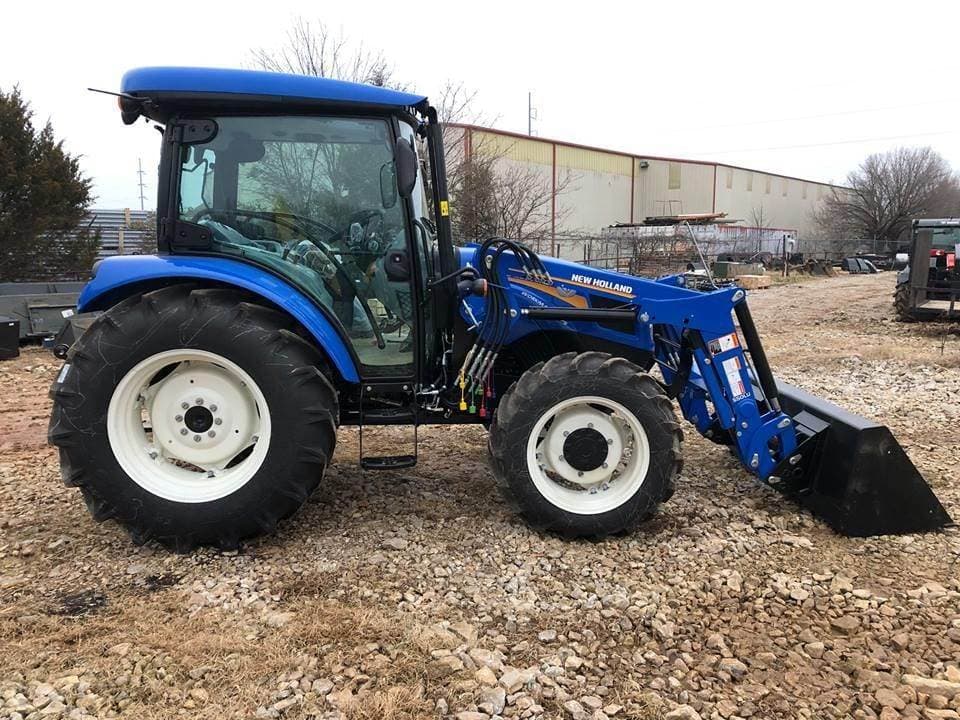

New Holland WORKMASTER 75
The New Holland WORKMASTER 75 is a utility tractor built from 2010 to 2014. It's a strong machine with a 75 hp diesel engine that has four cylinders. This tractor is good for many farm jobs because it's powerful but not too big. It has eight forward and eight reverse gears, which helps you pick the right speed for different tasks. This tractor has some great features that make it useful on the farm. It has a three-point hitch at the back that can lift up to 2,700 pounds, which is very good for its size. The PTO (power take-off) can run at 540 rpm, perfect for many farm tools. The WORKMASTER 75 is about 11 feet long, 6.5 feet wide, and 8 feet tall. It weighs 5,790 pounds, which is average for tractors like this. The tractor also has a hydraulic system that helps run attachments and an electric starter to get it going easily.
ManufacturerNew HollandPower75 hp(55.9 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionSelective gear fixed ratio
Key specifications
- Category
- Utility
- Engine power
- 75hp
- Operating weight
- 5,790 lb
- Transmission
- Selective gear fixed ratio
Category comparison
WORKMASTER 75 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
75 hp · 68th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The WORKMASTER 75 ranks at the 68th percentile for engine power among recorded utility tractors.
Overview
About the New Holland WORKMASTER 75
The New Holland WORKMASTER 75 is a utility tractor built from 2010 to 2014. It's a strong machine with a 75 hp diesel engine that has four cylinders. This tractor is good for many farm jobs because it's powerful but not too big. It has eight forward and eight reverse gears, which helps you pick the right speed for different tasks. This tractor has some great features that make it useful on the farm. It has a three-point hitch at the back that can lift up to 2,700 pounds, which is very good for its size. The PTO (power take-off) can run at 540 rpm, perfect for many farm tools. The WORKMASTER 75 is about 11 feet long, 6.5 feet wide, and 8 feet tall. It weighs 5,790 pounds, which is average for tractors like this. The tractor also has a hydraulic system that helps run attachments and an electric starter to get it going easily.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | WORKMASTER 75 |
| Category | Utility tractor |
| Years built | 2010–2014 |
| Operating weight | 5,790lb(2,626 kg) |
Engine
| Power | 75hp(55.93 kW) |
|---|---|
| Cylinders | 4 |
| Displacement | 195ci(3.2 L) |
Transmission
| Type | Selective gear fixed ratio |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Brakes | Single wet disc |
|---|
Hydraulics
| Type | Open center, fixed displacement gear pump |
|---|
Power take-off
| Rear PTO | Independent Mechanical Engagement |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 134.1in(3,406 mm) |
|---|---|
| Width | 77.6in(1,971 mm) |
| Height | 97.6in(2,479 mm) |
| Operating weight | 5,790lb(2,626 kg) |
Tires
| Front | 11.2-24ConvertShop size |
|---|---|
| Rear | 16.9-30ConvertShop size |
Closest alternatives
WORKMASTER 75 compared with the nearest models by horsepower
The closest utility models to the New Holland WORKMASTER 75 by rated horsepower are the New Holland TT75A and the New Holland TN75. The New Holland TT75A matches it on rated power and weighs 1,050 lb less, carrying 63 lb per horsepower against 77 lb. The New Holland TN75 matches it on rated power and weighs 1,090 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 1999, 11 years before the WORKMASTER 75. Of the 3 models, the WORKMASTER 75 has the highest weight per horsepower at 77 lb per hp.
| Spec | New Holland WORKMASTER 75 | New Holland TT75A | New Holland TN75 |
|---|---|---|---|
| Engine power | 75 hp55.9 kW | 75 hp55.9 kW | 75 hp55.9 kW |
| Operating weight | 5,790 lb2,626 kg | 4,740 lb2,150 kg | 4,700 lb2,132 kg |
| Weight per hp | 77 lb/hp47 kg/kW | 63 lb/hp38 kg/kW | 63 lb/hp38 kg/kW |
| Displacement | 195 ci3.2 L | 238 ci3.9 L | 179 ci2.93 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Selective gear fixed ratio | Partially synchronized | Mechanical shuttle |
| Drive | - | 2WD | 2WD |
| Years built | 2010-2014 | 2007-2008 | 1999-2003 |
Calculators
Calculators for the WORKMASTER 75
PTO power
About 62 to 68 PTO hp
Estimated from the 75 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 75 hp tractor can run
Maximum size is about a 9 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
90 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
75 hp is 55.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 16.9-30 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the New Holland WORKMASTER 75
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the New Holland WORKMASTER 75Amazon
For the 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the New Holland WORKMASTER 75Amazon
For the 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the New Holland WORKMASTER 75Amazon
For the 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the New Holland WORKMASTER 75Amazon
For the 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- New Holland WORKMASTER 75 service and repair manualseManualOnline
Digital manuals. Built 2010 to 2014. Check the serial number range on the listing.
- New Holland WORKMASTER 75 operator's manualAmazon
Printed and reprint manuals. Built 2010 to 2014. Check the serial number range on the listing.
- New Holland WORKMASTER 75 service manualAmazon
Shop and repair manuals for this model.
Tires
- 11.2-24 tiresAmazon
Listed front tire size for the New Holland WORKMASTER 75.
- 16.9-30 tiresAmazon
Listed rear tire size for the New Holland WORKMASTER 75.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
WORKMASTER 75 vs. Utility median
New Holland WORKMASTER 75 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 75 hp | 55 hp | +36% | 68th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,790 lb | 5,303 lb | +9% | 55th |
| Length | 134 in | 137 in | -2% | 46th |
| Width | 77.6 in | 66 in | +18% | 77th |
| Height | 97.6 in | 94.1 in | +4% | 60th |
| 3-Point Hitch Capacity | 2,701 lb | 3,197 lb | -16% | 38th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery
New Holland WORKMASTER 75 photos
FAQ
Frequently asked questions
When was the New Holland WORKMASTER 75 in production?
New Holland WORKMASTER 75 production started in 2010 and ended in 2014.
How much horsepower does the New Holland WORKMASTER 75 have?
The New Holland WORKMASTER 75 produces 75 hp from its 4-cylinder engine. Engine displacement is 195 ci.
How much does the New Holland WORKMASTER 75 weigh?
The New Holland WORKMASTER 75 weighs about 5,790 lb in operating condition.
What transmission is in the New Holland WORKMASTER 75?
Transmission on the New Holland WORKMASTER 75 is Selective gear fixed ratio, with 8 forward speeds.
What hydraulics does the New Holland WORKMASTER 75 have?
The New Holland WORKMASTER 75 uses an Open center, fixed displacement gear pump hydraulic system.
What are the factory tire sizes for the New Holland WORKMASTER 75?
The New Holland WORKMASTER 75 comes with 11.2-24 front tires and 16.9-30 rear tires.
What three-point hitch category does the New Holland WORKMASTER 75 use?
The New Holland WORKMASTER 75 has a Category II/I three-point hitch rated to lift 2,700.7 lb.
What maintenance does the New Holland WORKMASTER 75 require?
The New Holland WORKMASTER 75 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
