SAME Rubin 135
The SAME Rubin 135 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong diesel engine made by SAME with 6 cylinders and 135 horsepower. This engine is turbocharged, which means it can work hard without getting tired easily. The Rubin 135 has big agricultural tires, with 30-inch rims in front and 38-inch rims in the back. It's a big tractor, measuring about 15 feet long and 9.5 feet tall. Despite its size, it's easy to drive with 18 forward gears and 18 reverse gears. This lets farmers pick the right speed for any job. The tractor weighs 13,450 pounds, which helps it grip the ground well when pulling heavy loads. SAME is an Italian company known for making reliable tractors. They designed the Rubin 135 to handle all kinds of farm tasks. With its strong engine and sturdy build, this tractor can plow fields, pull trailers, and do many other jobs on the farm. It's a good choice for farmers who need a dependable and versatile machine.
Key specifications
- Category
- Agricultural
- Engine power
- 135hp
- Operating weight
- 13,450 lb
Category comparison
Rubin 135 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
135 hp · 64th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Rubin 135 ranks at the 64th percentile for engine power among recorded agricultural tractors.
Overview
About the SAME Rubin 135
The SAME Rubin 135 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong diesel engine made by SAME with 6 cylinders and 135 horsepower. This engine is turbocharged, which means it can work hard without getting tired easily. The Rubin 135 has big agricultural tires, with 30-inch rims in front and 38-inch rims in the back. It's a big tractor, measuring about 15 feet long and 9.5 feet tall. Despite its size, it's easy to drive with 18 forward gears and 18 reverse gears. This lets farmers pick the right speed for any job. The tractor weighs 13,450 pounds, which helps it grip the ground well when pulling heavy loads. SAME is an Italian company known for making reliable tractors. They designed the Rubin 135 to handle all kinds of farm tasks. With its strong engine and sturdy build, this tractor can plow fields, pull trailers, and do many other jobs on the farm. It's a good choice for farmers who need a dependable and versatile machine.
Full specifications
Recorded specifications
General
| Manufacturer | SAME |
|---|---|
| Model | Rubin 135 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 13,450lb(6,101 kg) |
Engine
| Make | SAME |
|---|---|
| Power | 135hp(100.7 kW) |
| Cylinders | 6 |
| Displacement | 366.12ci(6 L) |
| Bore | 4.13in(105 mm) |
| Stroke | 4.54in(115.3 mm) |
Transmission
| Forward gears | 18 |
|---|---|
| Reverse gears | 18 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 183.86in(4,670 mm) |
|---|---|
| Height | 113.39in(2,880 mm) |
| Operating weight | 13,450lb(6,101 kg) |
Closest alternatives
Rubin 135 compared with the nearest models by horsepower
By engine horsepower, the nearest agricultural models to the Rubin 135 are the CaseIH MX135 Maxxum and the CaseIH MXU135. The CaseIH MX135 Maxxum matches it on rated power and weighs 2,150 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The CaseIH MXU135 matches it on rated power and weighs 1,430 lb less, carrying 89 lb per horsepower against 100 lb. Of the 3 models, the Rubin 135 has the highest weight per horsepower at 100 lb per hp.
| Spec | SAME Rubin 135 | CaseIH MX135 Maxxum | CaseIH MXU135 |
|---|---|---|---|
| Engine power | 135 hp100.7 kW | 135 hp100.7 kW | 135 hp100.7 kW |
| Operating weight | 13,450 lb6,101 kg | 11,300 lb5,126 kg | 12,020 lb5,452 kg |
| Weight per hp | 100 lb/hp61 kg/kW | 84 lb/hp51 kg/kW | 89 lb/hp54 kg/kW |
| Displacement | 366.1 ci6 L | 359 ci5.88 L | 410.6 ci6.73 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | - | Partial Power Shift, Creeper | Partial Power Shift |
| Drive | 4WD | 2WD | 4WD |
Calculators
Calculators for the Rubin 135
PTO power
About 112 to 122 PTO hp
Estimated from the 135 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 135 hp tractor can run
Maximum size is about a 16 ft rotary cutter or a 13.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
116 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
135 hp is 100.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the SAME Rubin 135
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the SAMEAmazon
Fits the SAME 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the SAMEAmazon
Fits the SAME 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the SAMEAmazon
Fits the SAME 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the SAMEAmazon
Fits the SAME 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- SAME Rubin 135 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- SAME Rubin 135 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- SAME Rubin 135 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Rubin 135 vs. Agricultural median
SAME Rubin 135 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 135 hp | 110 hp | +23% | 64th |
| Engine Displacement | 366 ci | 336 ci | +9% | 59th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 13,450 lb | 10,914 lb | +23% | 63rd |
| Length | 184 in | 173 in | +6% | 62nd |
| Height | 113 in | 111 in | +3% | 58th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 795–1,130 models).
Same manufacturer
Other SAME models
Other manufacturers
Models with similar horsepower
Gallery

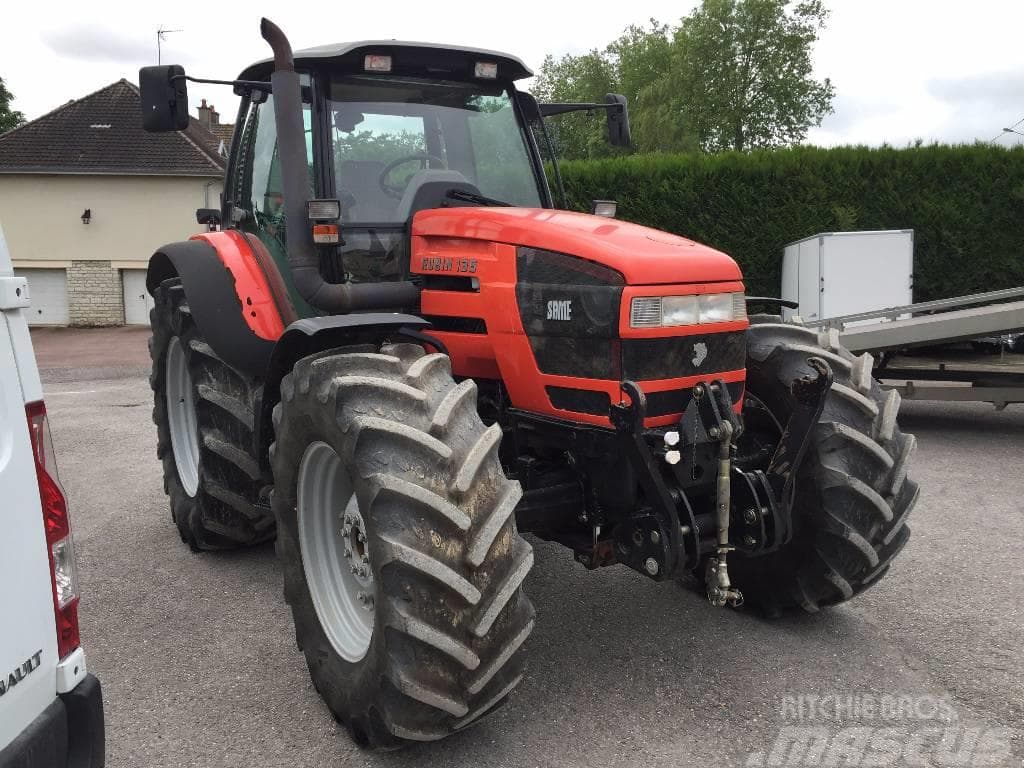

SAME Rubin 135 photos
FAQ
Frequently asked questions
What is the engine power output of the SAME Rubin 135?
Rated engine output for the SAME Rubin 135 is 135 hp, delivered by a 6-cylinder engine. The engine displaces 366.12 ci.
What is the operating weight of the SAME Rubin 135?
The SAME Rubin 135 has an operating weight of about 13,450 lb.
How do I maintain a SAME Rubin 135?
Routine service for the SAME Rubin 135 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
