Shibaura SD2003
The Shibaura SD2003 is a compact utility tractor designed for small-scale farming and light-duty tasks. This 2WD tractor is powered by a Shibaura diesel engine with three cylinders and natural aspiration. The engine is liquid-cooled and has a displacement of 85.2 cubic inches, which is below average for tractors in its class. With 20 horsepower, the SD2003 offers modest power suitable for basic farm work. This tractor measures 113 inches long, 49 inches wide, and 72 inches tall, making it easy to maneuver in tight spaces. It has an operating weight of 2,240 pounds, which is on the lighter side for utility tractors. The SD2003's compact size and light weight make it a good choice for farmers who need a versatile machine for small fields or landscaping work. While it may not be the most powerful tractor available, its simplicity and ease of use make it a practical option for those who don't need heavy-duty equipment.
ManufacturerShibauraPower20 hpEngine3-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 20hp
- Operating Weight
- 2,240 lb
At a glance
How the SD2003 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
20 hp · 8th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The SD2003 ranks at the 8th percentile for engine power among recorded utility tractors.
Overview
About the Shibaura SD2003
The Shibaura SD2003 is a compact utility tractor designed for small-scale farming and light-duty tasks. This 2WD tractor is powered by a Shibaura diesel engine with three cylinders and natural aspiration. The engine is liquid-cooled and has a displacement of 85.2 cubic inches, which is below average for tractors in its class. With 20 horsepower, the SD2003 offers modest power suitable for basic farm work. This tractor measures 113 inches long, 49 inches wide, and 72 inches tall, making it easy to maneuver in tight spaces. It has an operating weight of 2,240 pounds, which is on the lighter side for utility tractors. The SD2003's compact size and light weight make it a good choice for farmers who need a versatile machine for small fields or landscaping work. While it may not be the most powerful tractor available, its simplicity and ease of use make it a practical option for those who don't need heavy-duty equipment.
Full specifications
Every recorded spec
General
| Manufacturer | Shibaura |
|---|---|
| Model | SD2003 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 2,240lb |
Engine
| Make | Shibaura |
|---|---|
| Power | 20hp |
| Cylinders | 3 |
| Displacement | 85.2ci |
| Bore | 3.31in |
| Stroke | 3.31in |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 113in |
|---|---|
| Width | 49in |
| Height | 72in |
| Operating weight | 2,240lb |
Head to head
SD2003 vs. Utility median
How the Shibaura SD2003 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 20 hp | 55 hp | -64% | 8th |
| Engine Displacement | 85.2 ci | 183 ci | -53% | 14th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 2,240 lb | 5,303 lb | -58% | 14th |
| Length | 113 in | 137 in | -17% | 18th |
| Width | 49 in | 66 in | -26% | 16th |
| Height | 72 in | 94.1 in | -23% | 17th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Shibaura tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Shibaura SD2000 | 20 hp | 2,966 lb | — | Compare → |
| Shibaura SD2040 | 20 hp | — | — | Compare → |
| Shibaura SD2043 | 20 hp | 2,468 lb | — | Compare → |
| Shibaura SP2100 | 20.7 hp | 1,190 lb | — | Compare → |
| Shibaura P19F | 19 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2040 | 20 hp | 2,470 lb | — | Compare → |
| Ariens GT20 | 20 hp | 959 lb | 1988–1995 | Compare → |
| Allis Chalmers 620 | 19.5 hp | 1,499 lb | 1973–1975 | Compare → |
| Allis Chalmers 720 | 19.5 hp | 1,299 lb | 1975–1983 | Compare → |
| Bolens HT20 | 19.5 hp | 1,091 lb | 1973–1978 | Compare → |
Explore
Shibaura siblings
Explore
Similar-spec models
Gallery

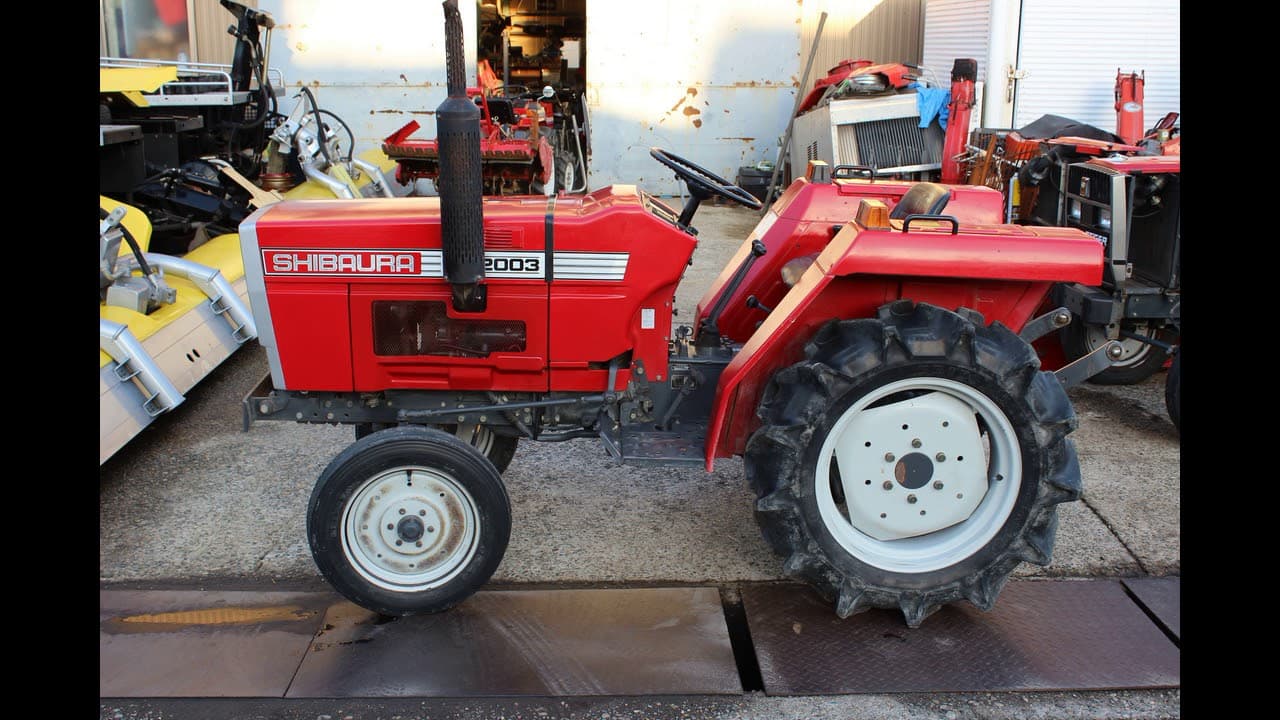

Shibaura SD2003 photos
FAQ
Common questions
How powerful is the Shibaura SD2003?
The Shibaura SD2003 has an engine power output of 20 hp. It is powered by a 3-cylinder engine displacing 85.2 ci.
What is the working weight of the Shibaura SD2003?
The operating weight of the Shibaura SD2003 is approximately 2,240 lb.
What routine service does the Shibaura SD2003 need?
Regular maintenance for the Shibaura SD2003 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
