UtilityPerformance profile
Shibaura SD2043
The Shibaura SD2043 is a utility tractor built for small-scale farming and property maintenance. It features a 4x4 MFWD chassis, making it capable of handling various terrains. The tractor is compact, measuring 113 inches long, 49 inches wide, and 71 inches tall, which allows it to work in tight spaces. This tractor is powered by a Shibaura diesel engine with three cylinders. The engine is liquid-cooled and naturally aspirated, producing 20 horsepower. While its power output is below average compared to other tractors, it's suitable for light to medium-duty tasks. The engine displacement is 85.2 cubic inches, which is also below average for its class. Despite its smaller size, the SD2043 weighs 2,468 pounds, making it sturdy enough for most utility applications.
ManufacturerShibauraPower20 hpEngine3-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 20hp
- Operating Weight
- 2,468 lb
At a glance
How the SD2043 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
20 hp · 8th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The SD2043 ranks at the 8th percentile for engine power among recorded utility tractors.
Overview
About the Shibaura SD2043
The Shibaura SD2043 is a utility tractor built for small-scale farming and property maintenance. It features a 4x4 MFWD chassis, making it capable of handling various terrains. The tractor is compact, measuring 113 inches long, 49 inches wide, and 71 inches tall, which allows it to work in tight spaces. This tractor is powered by a Shibaura diesel engine with three cylinders. The engine is liquid-cooled and naturally aspirated, producing 20 horsepower. While its power output is below average compared to other tractors, it's suitable for light to medium-duty tasks. The engine displacement is 85.2 cubic inches, which is also below average for its class. Despite its smaller size, the SD2043 weighs 2,468 pounds, making it sturdy enough for most utility applications.
Full specifications
Every recorded spec
General
| Manufacturer | Shibaura |
|---|---|
| Model | SD2043 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,468lb |
Engine
| Make | Shibaura |
|---|---|
| Power | 20hp |
| Cylinders | 3 |
| Displacement | 85.2ci |
| Bore | 3.31in |
| Stroke | 3.31in |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 113in |
|---|---|
| Width | 49in |
| Height | 71in |
| Operating weight | 2,468lb |
Head to head
SD2043 vs. Utility median
How the Shibaura SD2043 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 20 hp | 55 hp | -64% | 8th |
| Engine Displacement | 85.2 ci | 183 ci | -53% | 14th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 2,468 lb | 5,303 lb | -53% | 16th |
| Length | 113 in | 137 in | -17% | 18th |
| Width | 49 in | 66 in | -26% | 16th |
| Height | 71 in | 94.1 in | -25% | 16th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Shibaura tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Shibaura SD2000 | 20 hp | 2,966 lb | — | Compare → |
| Shibaura SD2003 | 20 hp | 2,240 lb | — | Compare → |
| Shibaura SD2040 | 20 hp | — | — | Compare → |
| Shibaura SP2100 | 20.7 hp | 1,190 lb | — | Compare → |
| Shibaura P19F | 19 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2040 | 20 hp | 2,470 lb | — | Compare → |
| Ariens GT20 | 20 hp | 959 lb | 1988–1995 | Compare → |
| Allis Chalmers 620 | 19.5 hp | 1,499 lb | 1973–1975 | Compare → |
| Allis Chalmers 720 | 19.5 hp | 1,299 lb | 1975–1983 | Compare → |
| Bolens HT20 | 19.5 hp | 1,091 lb | 1973–1978 | Compare → |
Explore
Shibaura siblings
Explore
Similar-spec models
Gallery

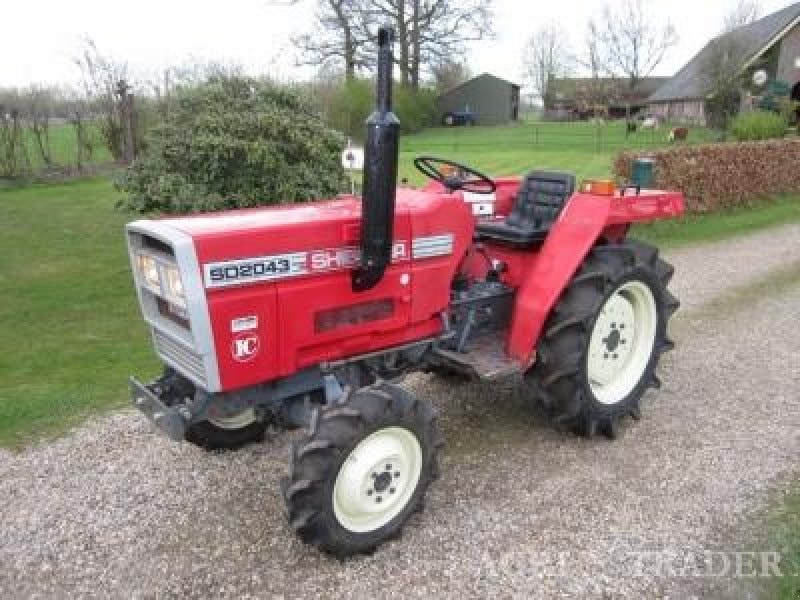

Shibaura SD2043 photos
FAQ
Common questions
How much horsepower does the Shibaura SD2043 have?
The Shibaura SD2043 produces 20 hp from its 3-cylinder engine. Engine displacement is 85.2 ci.
How much does the Shibaura SD2043 weigh?
The Shibaura SD2043 weighs about 2,468 lb in operating condition.
What maintenance does the Shibaura SD2043 require?
Like any tractor, the Shibaura SD2043 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
