UtilityPerformance profile
Steyr 9100M
The Steyr 9100M is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Sisu. This engine puts out 97 horsepower, which is very high for tractors in its class. The engine is turbocharged and liquid-cooled, helping it run smoothly in different conditions. This tractor has a 4-wheel drive system, making it great for working in muddy or uneven fields. It uses a STEYR Power-2 transmission with 32 forward gears and 16 reverse gears. This gives the driver lots of options for different tasks. The 9100M is big and sturdy, weighing 8,708 pounds. It's about 14 feet long, 7 feet wide, and 9 feet tall. The tractor has large agricultural tires, with 24-inch front tires and 34-inch rear tires. These help it grip the ground well in various farm conditions.
ManufacturerSteyrPower97 hpEngine4-cylTransSTEYR Power-2
Quick specs
- Category
- Utility
- Engine Power Output
- 97hp
- Operating Weight
- 8,708 lb
- Transmission
- STEYR Power-2
At a glance
How the 9100M compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
97 hp · 82nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 9100M ranks at the 82nd percentile for engine power among recorded utility tractors.
Overview
About the Steyr 9100M
The Steyr 9100M is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Sisu. This engine puts out 97 horsepower, which is very high for tractors in its class. The engine is turbocharged and liquid-cooled, helping it run smoothly in different conditions. This tractor has a 4-wheel drive system, making it great for working in muddy or uneven fields. It uses a STEYR Power-2 transmission with 32 forward gears and 16 reverse gears. This gives the driver lots of options for different tasks. The 9100M is big and sturdy, weighing 8,708 pounds. It's about 14 feet long, 7 feet wide, and 9 feet tall. The tractor has large agricultural tires, with 24-inch front tires and 34-inch rear tires. These help it grip the ground well in various farm conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Steyr |
|---|---|
| Model | 9100M |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 8,708lb |
Engine
| Make | Sisu |
|---|---|
| Model | 44DT |
| Power | 97hp |
| Cylinders | 4 |
| Displacement | 268.3ci |
| Bore | 4.25in |
| Stroke | 4.72in |
Transmission
| Type | STEYR Power-2 |
|---|---|
| Forward gears | 32 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Dimensions
| Length | 165.9in |
|---|---|
| Width | 85.4in |
| Height | 106in |
| Operating weight | 8,708lb |
Head to head
9100M vs. Utility median
How the Steyr 9100M compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 97 hp | 55 hp | +76% | 82nd |
| Engine Displacement | 268 ci | 183 ci | +47% | 76th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 32 | 12 | +167% | 97th |
| Operating Weight | 8,708 lb | 5,303 lb | +64% | 80th |
| Length | 166 in | 137 in | +21% | 84th |
| Width | 85.4 in | 66 in | +29% | 88th |
| Height | 106 in | 94.1 in | +13% | 79th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Steyr tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steyr 4100 Multi | 97 hp | — | — | Compare → |
| Steyr 4095 Multi | 99 hp | 9,921 lb | — | Compare → |
| Steyr 1100 | 100 hp | 9,437 lb | — | Compare → |
| Steyr 4100 Profi | 101 hp | 11,050 lb | — | Compare → |
| Steyr 9105MT | 101 hp | 9,215 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agrinar T-100 | 97.9 hp | 3,850 lb | — | Compare → |
| Antonio Carraro SRX 10400 | 95 hp | 4,718 lb | — | Compare → |
| Antonio Carraro TGF 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRG 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRX 10400 | 95 hp | 4,828 lb | — | Compare → |
Explore
Steyr siblings
Explore
Similar-spec models
Gallery

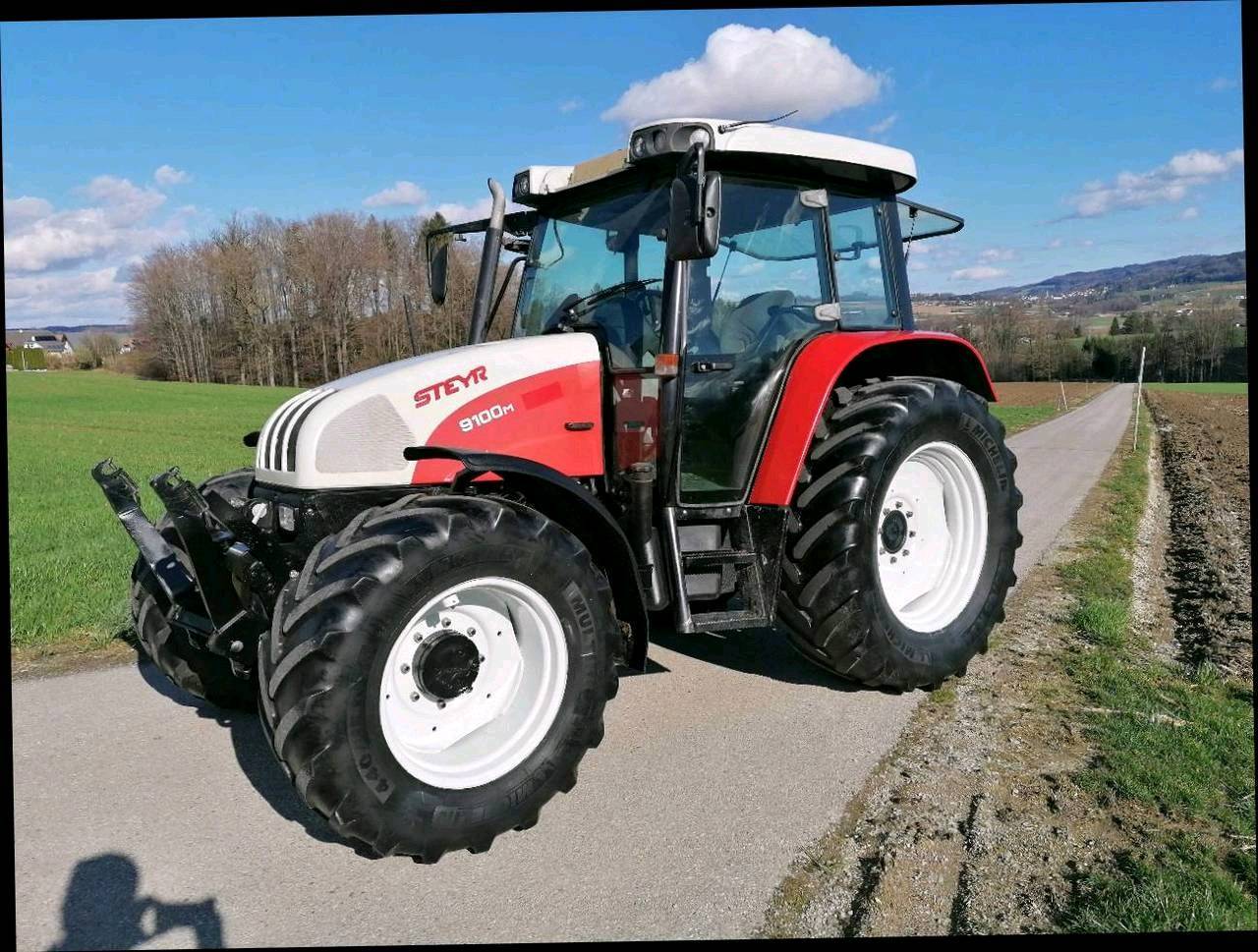

Steyr 9100M photos
FAQ
Common questions
How much horsepower does the Steyr 9100M have?
The Steyr 9100M produces 97 hp from its 4-cylinder engine. Engine displacement is 268.3 ci.
What transmission is in the Steyr 9100M?
Transmission on the Steyr 9100M is STEYR Power-2, with 32 forward speeds.
How much does the Steyr 9100M weigh?
The Steyr 9100M weighs about 8,708 lb in operating condition.
What maintenance does the Steyr 9100M require?
Like any tractor, the Steyr 9100M needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
