Steyr 9190
The Steyr 9190 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong 190 horsepower diesel engine made by Steyr. This engine has 6 cylinders and uses a turbo to give it extra power. The tractor can go forward in 32 different speeds and backward in 32 speeds too, making it very flexible for different jobs. This tractor is big and sturdy. It's over 203 inches long and 114 inches tall. It weighs a hefty 13,892 pounds, which helps it handle heavy tasks. The Steyr 9190 has big agricultural tires, with 480/70R30 tires in front and even bigger 20.8R42 tires in the back. These tires give it good grip in the fields. The tractor also has power steering, which makes it easier to control despite its size.
ManufacturerSteyrPower190 hpEngine6-cylTransSynchro
Quick specs
- Category
- Agricultural
- Engine Power Output
- 190hp
- Operating Weight
- 13,892 lb
- Transmission
- Synchro
At a glance
How the 9190 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
190 hp · 79th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 9190 ranks at the 79th percentile for engine power among recorded agricultural tractors.
Overview
About the Steyr 9190
The Steyr 9190 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong 190 horsepower diesel engine made by Steyr. This engine has 6 cylinders and uses a turbo to give it extra power. The tractor can go forward in 32 different speeds and backward in 32 speeds too, making it very flexible for different jobs. This tractor is big and sturdy. It's over 203 inches long and 114 inches tall. It weighs a hefty 13,892 pounds, which helps it handle heavy tasks. The Steyr 9190 has big agricultural tires, with 480/70R30 tires in front and even bigger 20.8R42 tires in the back. These tires give it good grip in the fields. The tractor also has power steering, which makes it easier to control despite its size.
Full specifications
Every recorded spec
General
| Manufacturer | Steyr |
|---|---|
| Model | 9190 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 13,892lb |
Engine
| Make | Steyr |
|---|---|
| Model | 634DS |
| Power | 190hp |
| Cylinders | 6 |
| Displacement | 449.6ci |
| Bore | 4.25in |
| Stroke | 5.28in |
Transmission
| Type | Synchro |
|---|---|
| Forward gears | 32 |
| Reverse gears | 32 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 203.5in |
|---|---|
| Height | 114.6in |
| Operating weight | 13,892lb |
Head to head
9190 vs. Agricultural median
How the Steyr 9190 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 190 hp | 110 hp | +73% | 79th |
| Engine Displacement | 450 ci | 336 ci | +34% | 80th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 32 | 16 | +100% | 91st |
| Operating Weight | 13,892 lb | 10,914 lb | +27% | 65th |
| Length | 204 in | 173 in | +18% | 81st |
| Height | 115 in | 111 in | +4% | 62nd |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Steyr tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steyr 9180 | 180 hp | 13,451 lb | — | Compare → |
| Steyr 9200 | 200 hp | 13,892 lb | — | Compare → |
| Steyr 9170 | 170 hp | 13,451 lb | — | Compare → |
| Steyr CVT 170 | 170 hp | 14,663 lb | — | Compare → |
| Steyr 9160 | 160 hp | 13,340 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 7060 | 192 hp | 13,990 lb | 1974–1981 | Compare → |
| Allis Chalmers 7580 | 186.35 hp | 25,000 lb | 1977–1981 | Compare → |
| Belarus 1770 | 185 hp | 19,585 lb | — | Compare → |
| CaseIH 7140 | 195 hp | 17,850 lb | 1987–1993 | Compare → |
| CaseIH 2394 | 197 hp | 16,240 lb | 1984–1988 | Compare → |
Explore
Steyr siblings
Explore
Similar-spec models
Gallery

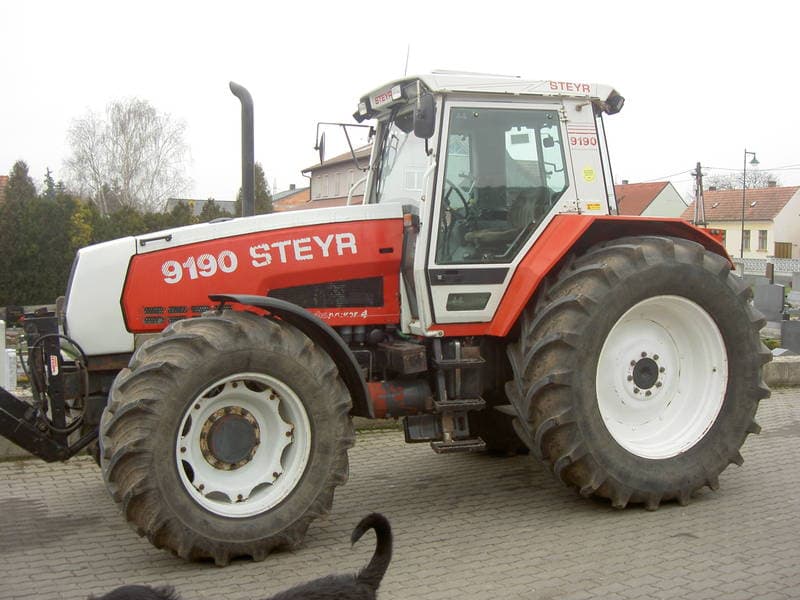

Steyr 9190 photos
FAQ
Common questions
How powerful is the Steyr 9190?
The Steyr 9190 has an engine power output of 190 hp. It is powered by a 6-cylinder engine displacing 449.6 ci.
What type of transmission does the Steyr 9190 have?
The Steyr 9190 uses a Synchro transmission offering 32 forward gears.
What is the working weight of the Steyr 9190?
The operating weight of the Steyr 9190 is approximately 13,892 lb.
What routine service does the Steyr 9190 need?
Regular maintenance for the Steyr 9190 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
