Same brandAgricultural tractorsSpec sheet
Steyr 9200
The Steyr 9200 is a powerful 4WD tractor built for tough farm work. It has a strong 6-cylinder diesel engine made by Steyr. This engine can produce 200 horsepower, which is plenty for most farming tasks. The tractor uses a turbocharger to boost its power even more. This tractor is big and heavy, weighing 13,892 pounds. It's about 17 feet long and 10 feet tall. The Steyr 9200 has a special transmission with 32 forward gears, giving the driver lots of speed choices. It also has hydrostatic power steering, making it easy to turn despite its size. The tractor has a category III hitch, which means it can handle large implements. With its strong engine and sturdy build, the Steyr 9200 is ready for hard work on any farm.
Key specifications
- Category
- Agricultural
- Engine power
- 200hp
- Operating weight
- 13,892 lb
- Transmission
- Synchro
Category comparison
9200 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
200 hp · 81st
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 9200 ranks at the 81st percentile for engine power among recorded agricultural tractors.
Overview
About the Steyr 9200
The Steyr 9200 is a powerful 4WD tractor built for tough farm work. It has a strong 6-cylinder diesel engine made by Steyr. This engine can produce 200 horsepower, which is plenty for most farming tasks. The tractor uses a turbocharger to boost its power even more. This tractor is big and heavy, weighing 13,892 pounds. It's about 17 feet long and 10 feet tall. The Steyr 9200 has a special transmission with 32 forward gears, giving the driver lots of speed choices. It also has hydrostatic power steering, making it easy to turn despite its size. The tractor has a category III hitch, which means it can handle large implements. With its strong engine and sturdy build, the Steyr 9200 is ready for hard work on any farm.
Full specifications
Recorded specifications
General
| Manufacturer | Steyr |
|---|---|
| Model | 9200 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 13,892lb(6,301 kg) |
Engine
| Make | Steyr |
|---|---|
| Model | 634DS |
| Power | 200hp(149.1 kW) |
| Cylinders | 6 |
| Displacement | 449.6ci(7.37 L) |
| Bore | 4.25in(107.9 mm) |
| Stroke | 5.28in(134.1 mm) |
Transmission
| Type | Synchro |
|---|---|
| Forward gears | 32 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 203.5in(5,169 mm) |
|---|---|
| Height | 121.3in(3,081 mm) |
| Operating weight | 13,892lb(6,301 kg) |
Closest alternatives
9200 compared with the nearest models by horsepower
The closest agricultural models to the Steyr 9200 by rated horsepower are the Deutz-Fahr Agrotron 200 and the Fendt 720. The Deutz-Fahr Agrotron 200 matches it on rated power and weighs 1,320 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Fendt 720 matches it on rated power and weighs 1,510 lb more, at 77 lb per horsepower against 69 lb. Of the 3 models, the 9200 has the lowest weight per horsepower at 69 lb per hp.
| Spec | Steyr 9200 | Deutz-Fahr Agrotron 200 | Fendt 720 |
|---|---|---|---|
| Engine power | 200 hp149.1 kW | 200 hp149.1 kW | 200 hp149.1 kW |
| Operating weight | 13,892 lb6,301 kg | 15,214 lb6,901 kg | 15,399 lb6,985 kg |
| Weight per hp | 69 lb/hp42 kg/kW | 76 lb/hp46 kg/kW | 77 lb/hp47 kg/kW |
| Displacement | 449.6 ci7.37 L | 436 ci7.14 L | 44 ci0.72 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Synchro | - | ML 180 |
| Drive | 4WD | 4WD | - |
Calculators
Calculators for the 9200
PTO power
About 166 to 180 PTO hp
Estimated from the 200 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 200 hp tractor can run
Maximum size is about a 24 ft rotary cutter or a 20.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
81 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
200 hp is 149.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
9200 vs. Agricultural median
Steyr 9200 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 200 hp | 110 hp | +82% | 81st |
| Engine Displacement | 450 ci | 336 ci | +34% | 80th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 32 | 16 | +100% | 91st |
| Operating Weight | 13,892 lb | 10,914 lb | +27% | 65th |
| Length | 204 in | 173 in | +18% | 81st |
| Height | 121 in | 111 in | +10% | 79th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 795–1,130 models).
Same manufacturer
Other Steyr models
Other manufacturers
Models with similar horsepower

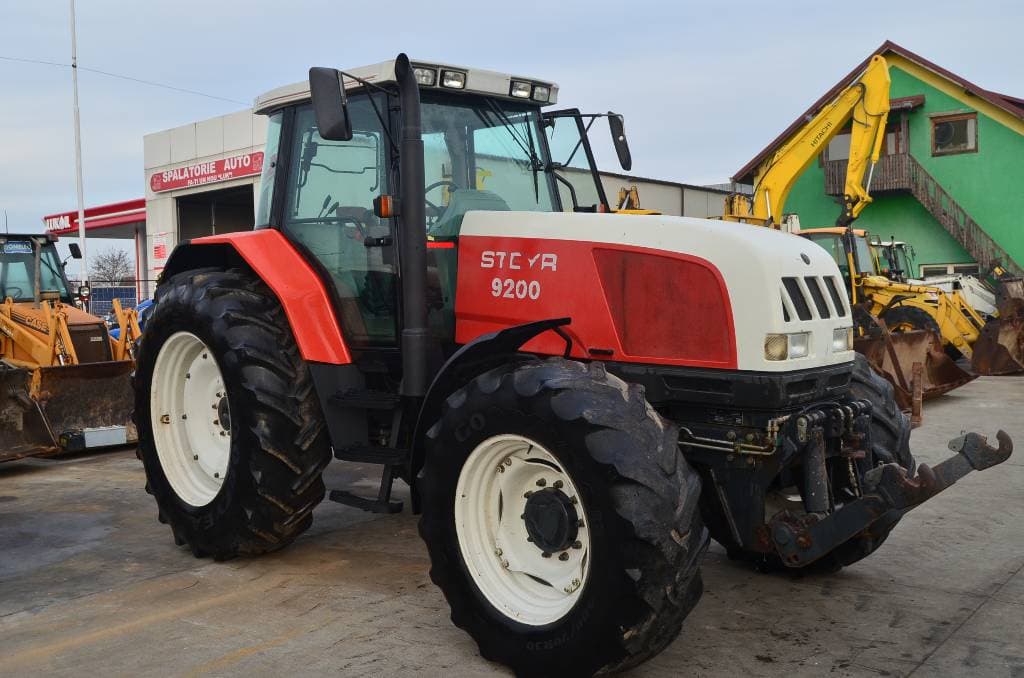

Gallery
Steyr 9200 photos
FAQ
Frequently asked questions
What is the engine power output of the Steyr 9200?
Rated engine output for the Steyr 9200 is 200 hp, delivered by a 6-cylinder engine. The engine displaces 449.6 ci.
Which transmission does the Steyr 9200 use?
The Steyr 9200 is equipped with a Synchro transmission with 32 forward gears.
What hitch category is the Steyr 9200?
The Steyr 9200 uses a Category III hitch.
What is the operating weight of the Steyr 9200?
The Steyr 9200 has an operating weight of about 13,892 lb.
How do I maintain a Steyr 9200?
Routine service for the Steyr 9200 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
