Steyr M 963
The Steyr M 963 is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4x2 chassis and hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a synchro transmission that offers 16 forward and 8 reverse gears, giving farmers plenty of options for different jobs. Under the hood, the M 963 boasts a Perkins 903.27T diesel engine. This turbo-charged 3-cylinder engine has a displacement of 164.8 ci and delivers 63 hp at 2250 rpm. It also produces a strong torque of 176 lb-ft at 1400 rpm, providing ample power for tough field work. The tractor's compact size, measuring 140.6 inches in length and 93.7 inches in height, makes it suitable for working in smaller fields or orchards. With an operating weight of 5976 lb and a category III hitch, the Steyr M 963 can handle a wide range of implements and attachments.
ManufacturerSteyrPower63 hpEngine3-cylTransSynchro
Quick specs
- Category
- Utility
- Engine Power Output
- 63hp
- Operating Weight
- 5,976 lb
- Transmission
- Synchro
At a glance
How the M 963 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
63 hp · 57th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The M 963 ranks at the 57th percentile for engine power among recorded utility tractors.
Overview
About the Steyr M 963
The Steyr M 963 is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4x2 chassis and hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a synchro transmission that offers 16 forward and 8 reverse gears, giving farmers plenty of options for different jobs. Under the hood, the M 963 boasts a Perkins 903.27T diesel engine. This turbo-charged 3-cylinder engine has a displacement of 164.8 ci and delivers 63 hp at 2250 rpm. It also produces a strong torque of 176 lb-ft at 1400 rpm, providing ample power for tough field work. The tractor's compact size, measuring 140.6 inches in length and 93.7 inches in height, makes it suitable for working in smaller fields or orchards. With an operating weight of 5976 lb and a category III hitch, the Steyr M 963 can handle a wide range of implements and attachments.
Full specifications
Every recorded spec
General
| Manufacturer | Steyr |
|---|---|
| Model | M 963 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,976lb |
Engine
| Make | Perkins |
|---|---|
| Model | 903.27T |
| Power | 63hp |
| Cylinders | 3 |
| Displacement | 164.8ci |
| Bore | 3.74in |
| Stroke | 5in |
Transmission
| Type | Synchro |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 140.6in |
|---|---|
| Height | 93.7in |
| Operating weight | 5,976lb |
Head to head
M 963 vs. Utility median
How the Steyr M 963 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 63 hp | 55 hp | +15% | 57th |
| Engine Displacement | 165 ci | 183 ci | -10% | 44th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 5,976 lb | 5,303 lb | +13% | 56th |
| Length | 141 in | 137 in | +3% | 56th |
| Height | 93.7 in | 94.1 in | 0% | 50th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Steyr tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steyr 768 | 64 hp | 6,079 lb | — | Compare → |
| Steyr 8075 | 64 hp | 6,262 lb | — | Compare → |
| Steyr 964 | 64 hp | 6,461 lb | — | Compare → |
| Steyr 760 | 60 hp | 5,689 lb | — | Compare → |
| Steyr 360 Kompakt | 59 hp | 6,063 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Barreiros R-500 B | 60 hp | — | — | Compare → |
Explore
Steyr siblings
Explore
Similar-spec models
Gallery

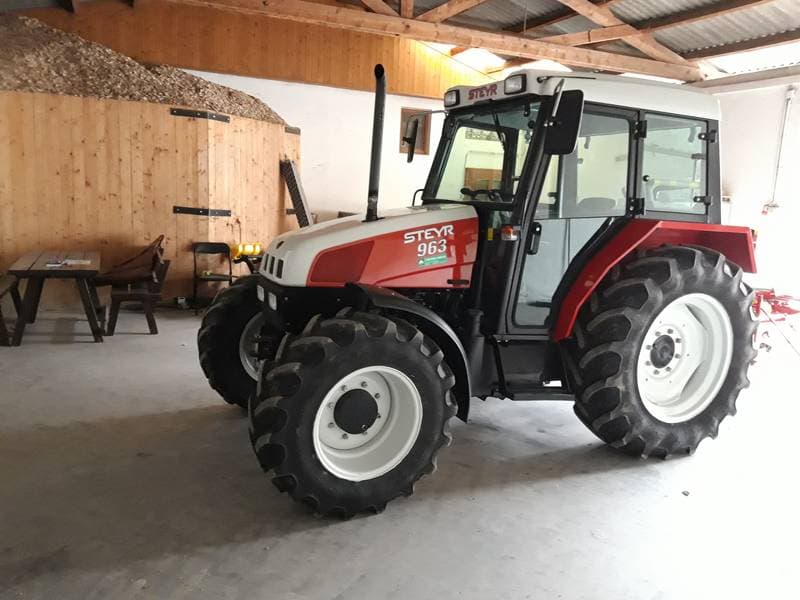

Steyr M 963 photos
FAQ
Common questions
How powerful is the Steyr M 963?
The Steyr M 963 has an engine power output of 63 hp. It is powered by a 3-cylinder engine displacing 164.8 ci.
What three-point hitch category does the Steyr M 963 use?
The Steyr M 963 has a Category III three-point hitch.
What is the working weight of the Steyr M 963?
The operating weight of the Steyr M 963 is approximately 5,976 lb.
What type of transmission does the Steyr M 963 have?
The Steyr M 963 uses a Synchro transmission offering 16 forward gears.
What routine service does the Steyr M 963 need?
Regular maintenance for the Steyr M 963 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
