Valmet 505
The Valmet 505 is a row crop tractor built for farm work. It has a 2WD drive system and power steering, making it easy to handle in the fields. The tractor comes with a synchromesh transmission that has 16 forward gears and 8 reverse gears, giving farmers lots of options for different tasks. Under the hood, the Valmet 505 has a 3-cylinder diesel engine made by Valmet. This engine is turbocharged and liquid-cooled, producing 65 hp at 2250 rpm. While the engine's power is below average for tractors, its rpm is quite high. The tractor weighs 7760 lb and measures 172.8 inches long, 77.2 inches wide, and 105.1 inches tall. It has a good ground clearance of 17.3 inches, which helps when working in rough fields. The Valmet 505 uses agricultural tires and has an electric starter for easy operation.
ManufacturerValmetPower65 hpEngine3-cylTransSynchromesh / Two-speed power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 65hp
- Operating Weight
- 7,760 lb
- Transmission
- Synchromesh / Two-speed power shift
At a glance
How the 505 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
65 hp · 10th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 505 ranks at the 10th percentile for engine power among recorded row crop tractors.
Overview
About the Valmet 505
The Valmet 505 is a row crop tractor built for farm work. It has a 2WD drive system and power steering, making it easy to handle in the fields. The tractor comes with a synchromesh transmission that has 16 forward gears and 8 reverse gears, giving farmers lots of options for different tasks. Under the hood, the Valmet 505 has a 3-cylinder diesel engine made by Valmet. This engine is turbocharged and liquid-cooled, producing 65 hp at 2250 rpm. While the engine's power is below average for tractors, its rpm is quite high. The tractor weighs 7760 lb and measures 172.8 inches long, 77.2 inches wide, and 105.1 inches tall. It has a good ground clearance of 17.3 inches, which helps when working in rough fields. The Valmet 505 uses agricultural tires and has an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Valmet |
|---|---|
| Model | 505 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 7,760lb |
Engine
| Make | Valmet |
|---|---|
| Model | TD33DS5 |
| Power | 65hp |
| Cylinders | 3 |
| Displacement | 201.4ci |
| Bore | 4.25in |
| Stroke | 4.72in |
Transmission
| Type | Synchromesh / Two-speed power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 172.8in |
|---|---|
| Width | 77.2in |
| Height | 105.1in |
| Operating weight | 7,760lb |
Head to head
505 vs. Row Crop median
How the Valmet 505 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 65 hp | 138 hp | -53% | 10th |
| Engine Displacement | 201 ci | 391 ci | -48% | 9th |
| Cylinders | 3 | 6 | -50% | 2nd |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 7,760 lb | 12,307 lb | -37% | 19th |
| Length | 173 in | 180 in | -4% | 39th |
| Width | 77.2 in | 91.2 in | -15% | 16th |
| Height | 105 in | 114 in | -7% | 26th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Valmet tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Valmet 6000 | 75 hp | 8,289 lb | — | Compare → |
| Valmet 605 | 75 hp | 7,804 lb | — | Compare → |
| Valmet 702S | 75 hp | 8,907 lb | — | Compare → |
| Valmet 6100 | 77.8 hp | 8,818 lb | — | Compare → |
| Valmet 6250 | 79.1 hp | 9,700 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Barreiros 5500 | 67 hp | — | — | Compare → |
Explore
Valmet siblings
Explore
Similar-spec models
Gallery

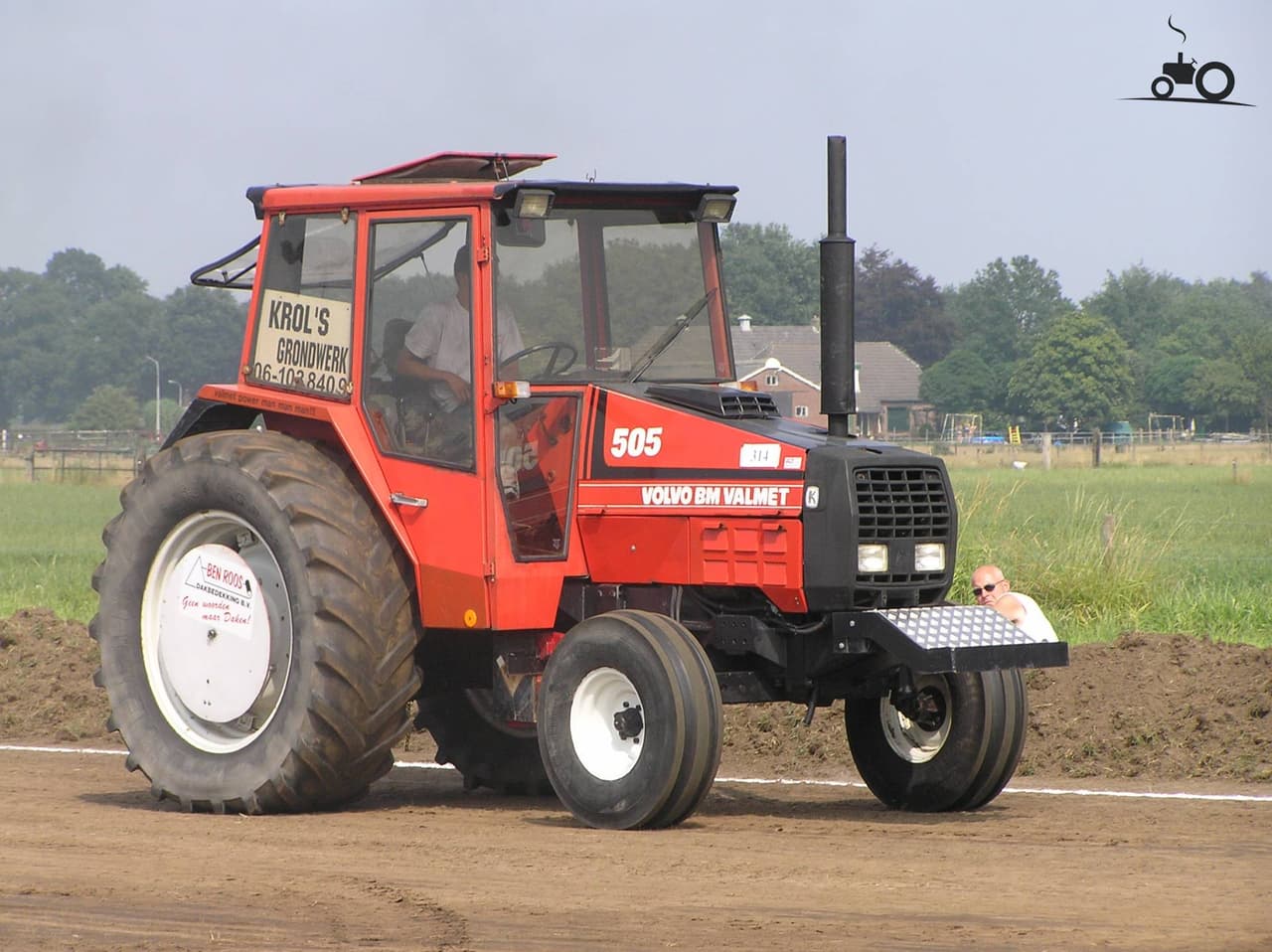

Valmet 505 photos
FAQ
Common questions
How powerful is the Valmet 505?
The Valmet 505 has an engine power output of 65 hp. It is powered by a 3-cylinder engine displacing 201.4 ci.
What is the working weight of the Valmet 505?
The operating weight of the Valmet 505 is approximately 7,760 lb.
What type of transmission does the Valmet 505 have?
The Valmet 505 uses a Synchromesh / Two-speed power shift transmission offering 16 forward gears.
What routine service does the Valmet 505 need?
Regular maintenance for the Valmet 505 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
