Same brandOrchard/Vineyard tractorsSpec sheet

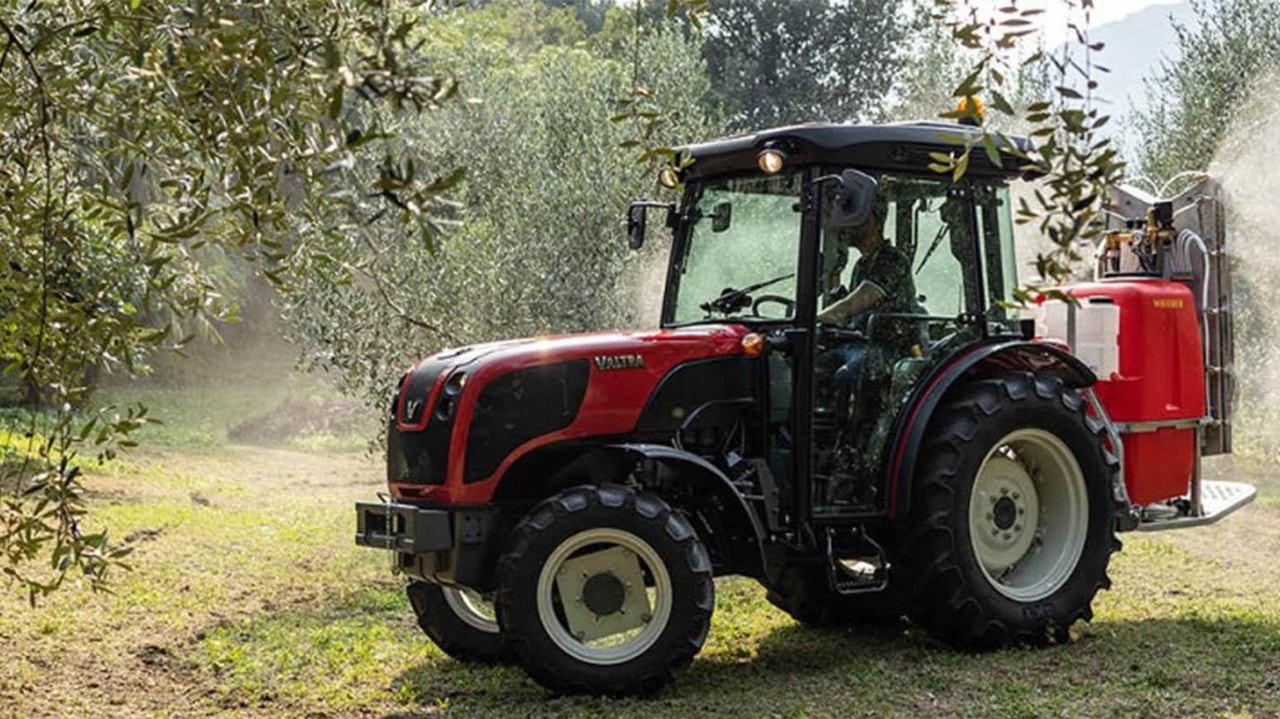

Valtra Vineyard 3500 V
The Valtra Vineyard 3500 V is a compact tractor designed for vineyard work. It's made by Valtra, a well-known tractor company. This tractor has a Deutz engine with 76 horsepower, which is good for its size. The engine has 4 cylinders and runs at 2400 rpm. One of the best things about this tractor is its transmission. It has 24 forward gears and 24 reverse gears, giving the driver lots of options. The transmission also has a splitter and a smooth forward-reverse shuttle. This makes it easy to change direction when working in tight spaces. The tractor is small, standing just 91.2 inches tall, which helps it fit between vineyard rows. It weighs 5489.6 pounds, making it sturdy but not too heavy. The Vineyard 3500 V has a strong hitch that can lift up to 5456.5 pounds. This is great for attaching tools and equipment. It also has a tight turning radius of 12.8 feet, which helps it move easily in narrow vineyard rows. Overall, this tractor is a good choice for vineyard owners who need a powerful, compact machine for their work.
ManufacturerValtraPower76 hp(56.7 kW)Class60–100 HP tractors →Engine4-cylinderTransmission24+24 speeds with splitter and synchronized forward-reverse shuttle
Key specifications
- Category
- Orchard/Vineyard
- Engine power
- 76hp
- Operating weight
- 5,489.6 lb
- Transmission
- 24+24 speeds with splitter and synchronized forward-reverse shuttle
Category comparison
Vineyard 3500 V compared with its category
vs. Orchard/Vineyard medianDistribution
Engine Power (hp)
All recorded Orchard/Vineyard tractors
76 hp · 58th
This model
14
Median 72.5 hp
95
This modelOrchard/Vineyard tractorsMediann = 174
The Vineyard 3500 V ranks at the 58th percentile for engine power among recorded orchard/vineyard tractors.
Overview
About the Valtra Vineyard 3500 V
The Valtra Vineyard 3500 V is a compact tractor designed for vineyard work. It's made by Valtra, a well-known tractor company. This tractor has a Deutz engine with 76 horsepower, which is good for its size. The engine has 4 cylinders and runs at 2400 rpm. One of the best things about this tractor is its transmission. It has 24 forward gears and 24 reverse gears, giving the driver lots of options. The transmission also has a splitter and a smooth forward-reverse shuttle. This makes it easy to change direction when working in tight spaces. The tractor is small, standing just 91.2 inches tall, which helps it fit between vineyard rows. It weighs 5489.6 pounds, making it sturdy but not too heavy. The Vineyard 3500 V has a strong hitch that can lift up to 5456.5 pounds. This is great for attaching tools and equipment. It also has a tight turning radius of 12.8 feet, which helps it move easily in narrow vineyard rows. Overall, this tractor is a good choice for vineyard owners who need a powerful, compact machine for their work.
Full specifications
Recorded specifications
General
| Manufacturer | Valtra |
|---|---|
| Model | Vineyard 3500 V |
| Category | Orchard/Vineyard tractor |
| Operating weight | 5,489.6lb(2,490 kg) |
Engine
| Make | Deutz |
|---|---|
| Model | Deutz |
| Power | 76hp(56.67 kW) |
| Cylinders | 4 |
Transmission
| Type | 24+24 speeds with splitter and synchronized forward-reverse shuttle |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Dimensions
| Height | 91.2in(2,316 mm) |
|---|---|
| Operating weight | 5,489.6lb(2,490 kg) |
Closest alternatives
Vineyard 3500 V compared with the nearest models by horsepower
Among orchard/vineyard tractors, the CaseIH Farmall 75N and the John Deere 76F are closest to the Valtra Vineyard 3500 V in rated horsepower. The CaseIH Farmall 75N matches it on rated power and weighs 460 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The John Deere 76F matches it on rated power and weighs 1,300 lb less, carrying 55 lb per horsepower against 72 lb. Of the 3 models, the Vineyard 3500 V has the highest weight per horsepower at 72 lb per hp.
| Spec | Valtra Vineyard 3500 V | CaseIH Farmall 75N | John Deere 76F |
|---|---|---|---|
| Engine power | 76 hp56.7 kW | 76 hp56.7 kW | 76 hp56.7 kW |
| Operating weight | 5,490 lb2,490 kg | 5,027 lb2,280 kg | 4,189 lb1,900 kg |
| Weight per hp | 72 lb/hp44 kg/kW | 66 lb/hp40 kg/kW | 55 lb/hp34 kg/kW |
| Displacement | - | 195 ci3.2 L | 166 ci2.72 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | 24+24 speeds with splitter and synchronized forward-reverse shuttle | Mechanical Shuttle | Manual |
| Drive | - | 2WD | 4WD |
Calculators
Calculators for the Vineyard 3500 V
PTO power
About 63 to 68 PTO hp
Estimated from the 76 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 76 hp tractor can run
Maximum size is about a 9 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
84 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
76 hp is 56.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Vineyard 3500 V vs. Orchard/Vineyard median
Valtra Vineyard 3500 V compared with other Orchard/Vineyard tractors
| Spec | This model | Orchard/Vineyard median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 76 hp | 72.5 hp | +5% | 58th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 5,490 lb | 5,148 lb | +7% | 61st |
| Height | 91.2 in | 87.4 in | +4% | 76th |
Medians and percentiles are calculated from the orchard/vineyard tractors in the database that have a recorded value for each specification (sample size 116–183 models).
Same manufacturer
Other Valtra models
Other manufacturers
Models with similar horsepower
Gallery
Valtra Vineyard 3500 V photos
FAQ
Frequently asked questions
What is the engine power output of the Valtra Vineyard 3500 V?
Rated engine output for the Valtra Vineyard 3500 V is 76 hp, delivered by a 4-cylinder engine.
Which transmission does the Valtra Vineyard 3500 V use?
The Valtra Vineyard 3500 V is equipped with a 24+24 speeds with splitter and synchronized forward-reverse shuttle transmission with 24 forward gears.
What hitch category is the Valtra Vineyard 3500 V?
The Valtra Vineyard 3500 V uses a Category Category 3 hitch with a lift capacity of 5,456.5 lb.
What is the operating weight of the Valtra Vineyard 3500 V?
The Valtra Vineyard 3500 V has an operating weight of about 5,489.6 lb.
How do I maintain a Valtra Vineyard 3500 V?
Routine service for the Valtra Vineyard 3500 V covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
