Agricultural tractorsSpec sheet
Volvo 2650
The Volvo 2650 is a powerful 2WD tractor designed for farm work. It has a 4x2 chassis and power steering, making it easy to handle in the fields. The tractor comes with a two-speed power shift transmission, offering 14 forward gears and 4 reverse gears. This gives farmers lots of options when working at different speeds. Under the hood, the Volvo 2650 boasts a Volvo TD60 engine. This 6-cylinder diesel engine is turbocharged and liquid-cooled, providing 140 hp at 2300 RPM. It has a displacement of 334.4 ci, which is above average for tractors in its class. The engine's peak torque is 357.7 lb-ft at 1600 RPM, giving it plenty of pulling power. The tractor weighs 14,550 lb and has a Category III/II hitch, making it suitable for a wide range of farm implements. With its sturdy build and powerful engine, the Volvo 2650 is a reliable choice for farmers looking for a strong, versatile tractor.
ManufacturerVolvoPower140 hp(104.4 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionTwo-speed power shift
Key specifications
- Category
- Agricultural
- Engine power
- 140hp
- Operating weight
- 14,550 lb
- Transmission
- Two-speed power shift
Category comparison
2650 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
140 hp · 66th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 2650 ranks at the 66th percentile for engine power among recorded agricultural tractors.
Overview
About the Volvo 2650
The Volvo 2650 is a powerful 2WD tractor designed for farm work. It has a 4x2 chassis and power steering, making it easy to handle in the fields. The tractor comes with a two-speed power shift transmission, offering 14 forward gears and 4 reverse gears. This gives farmers lots of options when working at different speeds. Under the hood, the Volvo 2650 boasts a Volvo TD60 engine. This 6-cylinder diesel engine is turbocharged and liquid-cooled, providing 140 hp at 2300 RPM. It has a displacement of 334.4 ci, which is above average for tractors in its class. The engine's peak torque is 357.7 lb-ft at 1600 RPM, giving it plenty of pulling power. The tractor weighs 14,550 lb and has a Category III/II hitch, making it suitable for a wide range of farm implements. With its sturdy build and powerful engine, the Volvo 2650 is a reliable choice for farmers looking for a strong, versatile tractor.
Full specifications
Recorded specifications
General
| Manufacturer | Volvo |
|---|---|
| Model | 2650 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 14,550lb(6,600 kg) |
Engine
| Make | Volvo |
|---|---|
| Model | TD60 |
| Power | 140hp(104.4 kW) |
| Cylinders | 6 |
| Displacement | 334.4ci(5.48 L) |
| Bore | 3.87in(98.3 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Two-speed power shift |
|---|---|
| Forward gears | 14 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 177.2in(4,501 mm) |
|---|---|
| Width | 91.7in(2,329 mm) |
| Height | 118.1in(3,000 mm) |
| Operating weight | 14,550lb(6,600 kg) |
Closest alternatives
2650 compared with the nearest models by horsepower
The closest agricultural models to the Volvo 2650 by rated horsepower are the Volvo 2650S and the Fendt Favorit 714 Vario. The Volvo 2650S matches it on rated power and weighs 890 lb more. The Fendt Favorit 714 Vario matches it on rated power and weighs 920 lb less.
| Spec | Volvo 2650 | Volvo 2650S | Fendt Favorit 714 Vario |
|---|---|---|---|
| Engine power | 140 hp104.4 kW | 140 hp104.4 kW | 140 hp104.4 kW |
| Operating weight | 14,550 lb6,600 kg | 15,435 lb7,001 kg | 13,626 lb6,181 kg |
| Weight per hp | 104 lb/hp63 kg/kW | 110 lb/hp67 kg/kW | 97 lb/hp59 kg/kW |
| Displacement | 334.4 ci5.48 L | 334.4 ci5.48 L | 347.8 ci5.7 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Two-speed power shift | Manual | - |
| Drive | 2WD | - | 4WD |
Calculators
Calculators for the 2650
PTO power
About 116 to 126 PTO hp
Estimated from the 140 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 140 hp tractor can run
Maximum size is about a 16.5 ft rotary cutter or a 14 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
121 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
140 hp is 104.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
2650 vs. Agricultural median
Volvo 2650 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 140 hp | 110 hp | +27% | 66th |
| Engine Displacement | 334 ci | 336 ci | 0% | 50th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 14 | 16 | -12% | 42nd |
| Operating Weight | 14,550 lb | 10,914 lb | +33% | 68th |
| Length | 177 in | 173 in | +3% | 55th |
| Width | 91.7 in | 79.5 in | +15% | 70th |
| Height | 118 in | 111 in | +7% | 71st |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 497–1,130 models).
Same manufacturer
Other Volvo models
Other manufacturers
Models with similar horsepower
Gallery

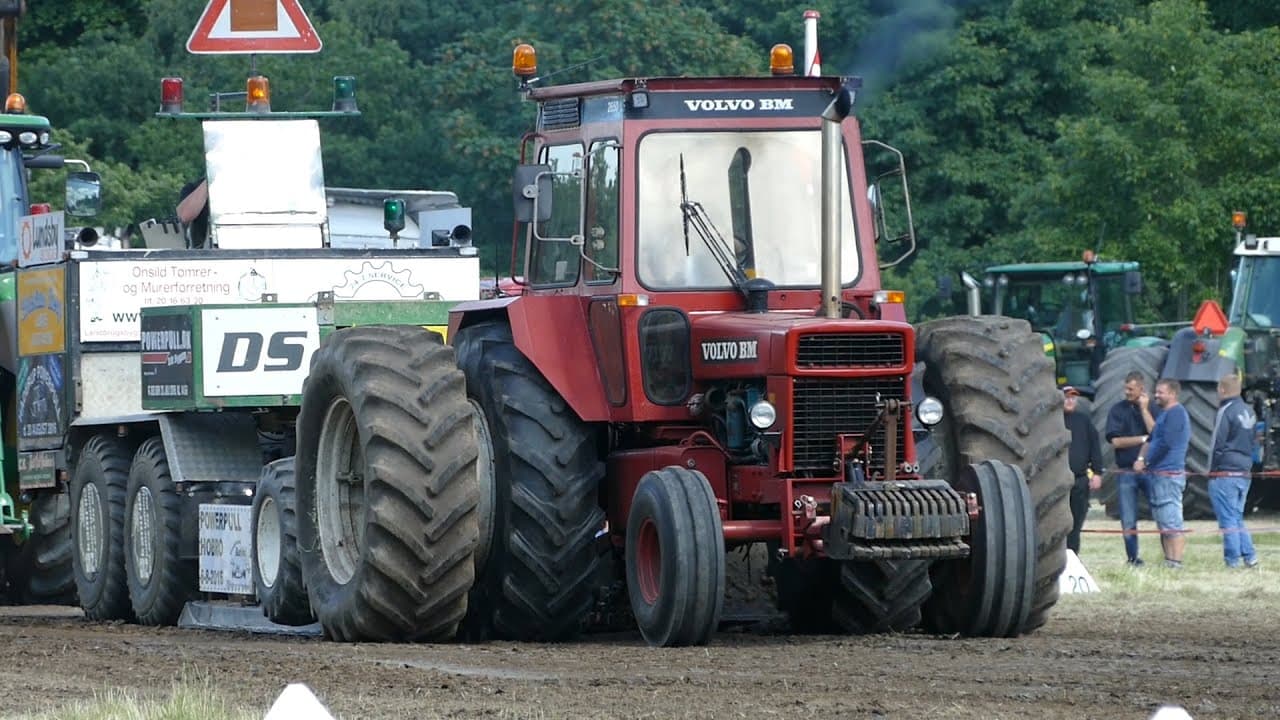

Volvo 2650 photos
FAQ
Frequently asked questions
How powerful is the Volvo 2650?
The Volvo 2650 has an engine power output of 140 hp. It is powered by a 6-cylinder engine displacing 334.4 ci.
What three-point hitch category does the Volvo 2650 use?
The Volvo 2650 has a Category III/II three-point hitch.
What is the working weight of the Volvo 2650?
The operating weight of the Volvo 2650 is approximately 14,550 lb.
What type of transmission does the Volvo 2650 have?
The Volvo 2650 uses a Two-speed power shift transmission offering 14 forward gears.
What routine service does the Volvo 2650 need?
Regular maintenance for the Volvo 2650 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
