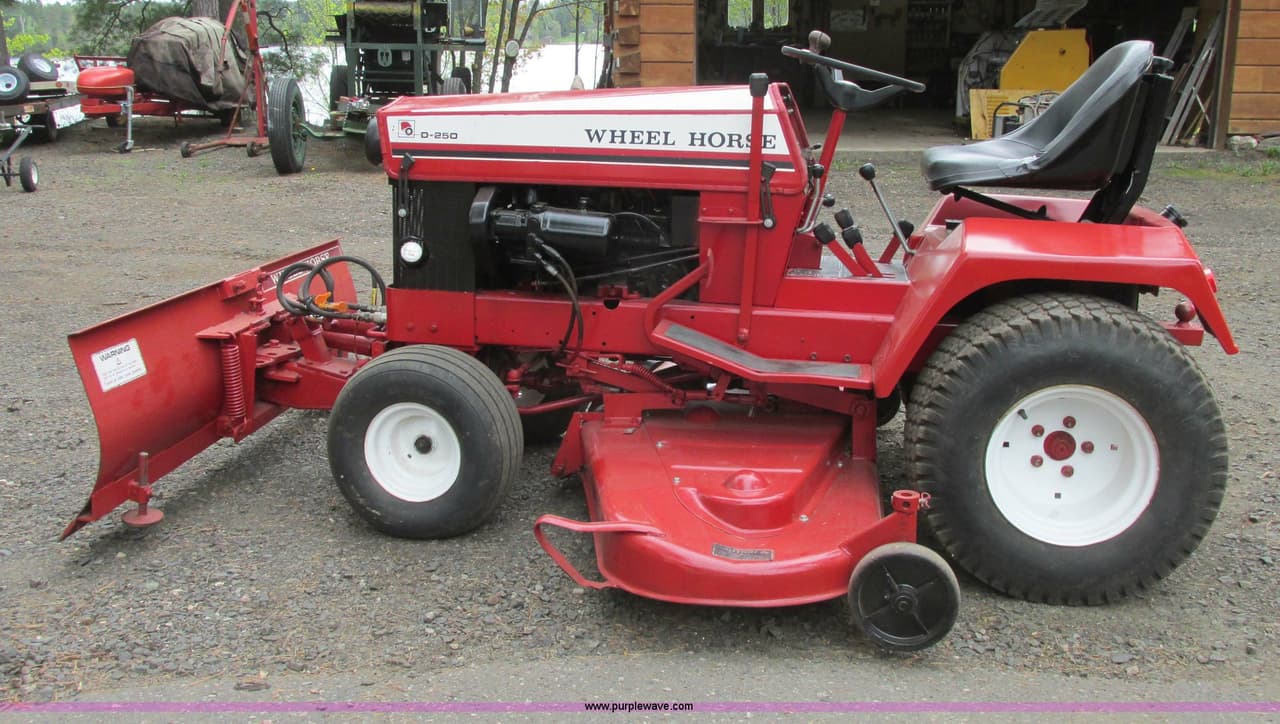

Wheel Horse D-250
The Wheel Horse D-250 is a compact lawn and garden tractor that was made from 1976 to 1981. It's perfect for taking care of your yard and small garden tasks. This tractor has a 2-wheel drive system and manual steering, making it easy to control. Under the hood, the D-250 has a Renault 800-01 engine with four cylinders. The engine is liquid-cooled and runs on gasoline. It has a very high displacement for its size, which means it's quite powerful for a lawn tractor. The engine produces 19.8 horsepower, which is above average for its class. It has eight forward gears and two reverse gears, giving you lots of options for different jobs. The D-250 is built to be sturdy and reliable. It weighs 1160 pounds, which is on the heavier side for a lawn tractor. This weight helps it handle tough jobs. The tractor is 78 inches long, 43.7 inches wide, and 44.9 inches tall. It has special lawn and turf tires that are gentle on grass. Some extra features include a mechanical rear differential lock and a 3.7-gallon fuel tank, which lets you work for a long time without stopping to refuel.
ManufacturerWheel HorsePower19.8 hpEngine4-cylTransGear type with dry disc clutch
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 20hp
- Operating Weight
- 1,160 lb
- Transmission
- Gear type with dry disc clutch
At a glance
How the D-250 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
19.8 hp · 55th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The D-250 ranks at the 55th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Wheel Horse D-250
The Wheel Horse D-250 is a compact lawn and garden tractor that was made from 1976 to 1981. It's perfect for taking care of your yard and small garden tasks. This tractor has a 2-wheel drive system and manual steering, making it easy to control. Under the hood, the D-250 has a Renault 800-01 engine with four cylinders. The engine is liquid-cooled and runs on gasoline. It has a very high displacement for its size, which means it's quite powerful for a lawn tractor. The engine produces 19.8 horsepower, which is above average for its class. It has eight forward gears and two reverse gears, giving you lots of options for different jobs. The D-250 is built to be sturdy and reliable. It weighs 1160 pounds, which is on the heavier side for a lawn tractor. This weight helps it handle tough jobs. The tractor is 78 inches long, 43.7 inches wide, and 44.9 inches tall. It has special lawn and turf tires that are gentle on grass. Some extra features include a mechanical rear differential lock and a 3.7-gallon fuel tank, which lets you work for a long time without stopping to refuel.
Full specifications
Every recorded spec
General
| Manufacturer | Wheel Horse |
|---|---|
| Model | D-250 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 1976–1981 |
| Operating weight | 1,160lb |
Engine
| Make | Renault |
|---|---|
| Model | 800-01 |
| Power | 19.8hp |
| Cylinders | 4 |
| Displacement | 52ci |
| Bore | 2.28in |
| Stroke | 3.15in |
Transmission
| Type | Gear type with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Drum |
| Cab | Open |
Dimensions
| Length | 78in |
|---|---|
| Width | 43.7in |
| Height | 44.9in |
| Operating weight | 1,160lb |
Tires
| Front | 18x8.50-8 |
|---|---|
| Rear | 26x12.00-12 |
Head to head
D-250 vs. Lawn and Garden median
How the Wheel Horse D-250 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 19.8 hp | 18 hp | +10% | 55th |
| Engine Displacement | 52 ci | 41.1 ci | +27% | 75th |
| Cylinders | 4 | 2 | +100% | 97th |
| Forward Gears | 8 | 6 | +33% | 82nd |
| Operating Weight | 1,160 lb | 738 lb | +57% | 69th |
| Length | 78 in | 71.7 in | +9% | 70th |
| Width | 43.7 in | 43.3 in | +1% | 52nd |
| Height | 44.9 in | 42.9 in | +5% | 64th |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 152–380 models).
Compare to tractors with similar specs
Commonly compared Wheel Horse tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Wheel Horse D-200 | 19.8 hp | 1,025 lb | 1974–1981 | Compare → |
| Wheel Horse 520H | 20 hp | 663.6 lb | 1990–1997 | Compare → |
| Wheel Horse 520H (1988-1989) | 20 hp | 646 lb | 1988–1989 | Compare → |
| Wheel Horse D-180 | 18 hp | — | 1974–1975 | Compare → |
| Wheel Horse 257H | 17 hp | — | 1988–1989 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2040 | 20 hp | 2,470 lb | — | Compare → |
| Ariens GT20 | 20 hp | 959 lb | 1988–1995 | Compare → |
| Allis Chalmers 620 | 19.5 hp | 1,499 lb | 1973–1975 | Compare → |
| Allis Chalmers 720 | 19.5 hp | 1,299 lb | 1975–1983 | Compare → |
| Bolens HT20 | 19.5 hp | 1,091 lb | 1973–1978 | Compare → |
Explore
Wheel Horse siblings
Explore
Similar-spec models
Gallery
Wheel Horse D-250 photos
FAQ
Common questions
When was the Wheel Horse D-250 in production?
Wheel Horse D-250 production started in 1976 and ended in 1981.
What transmission is in the Wheel Horse D-250?
Transmission on the Wheel Horse D-250 is Gear type with dry disc clutch, with 8 forward speeds.
What are the factory tire sizes for the Wheel Horse D-250?
The Wheel Horse D-250 comes with 18x8.50-8 front tires and 26x12.00-12 rear tires.
What three-point hitch category does the Wheel Horse D-250 use?
The Wheel Horse D-250 has a Category 0 three-point hitch.
How much horsepower does the Wheel Horse D-250 have?
The Wheel Horse D-250 produces 19.8 hp from its 4-cylinder engine. Engine displacement is 52 ci.
How much does the Wheel Horse D-250 weigh?
The Wheel Horse D-250 weighs about 1,160 lb in operating condition.
What maintenance does the Wheel Horse D-250 require?
Like any tractor, the Wheel Horse D-250 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
