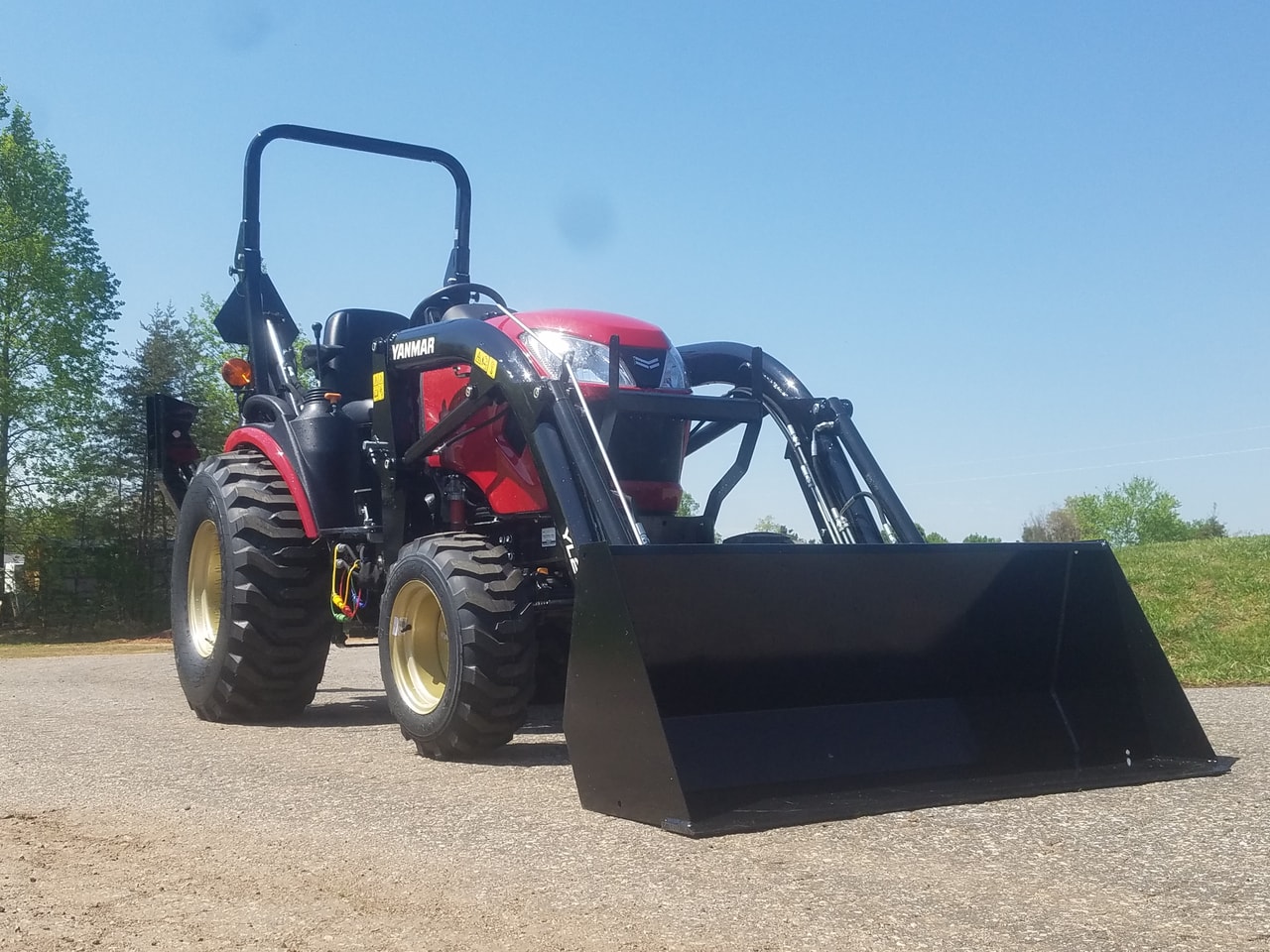

Yanmar 424
The Yanmar 424 is a compact utility tractor built for various farm tasks. It has a 4x4 drive system and hydrostatic power steering, making it easy to control. The tractor uses a hydrostatic transmission, which means you can change speeds smoothly without shifting gears. Under the hood, the Yanmar 424 has a small diesel engine with three cylinders. It's naturally aspirated and liquid-cooled, producing 23.9 horsepower. The engine is average in size for its class but runs at a very high speed of 3200 rpm. This tractor is lightweight at 1830 lb, making it good for jobs that need a gentle touch on the ground. It has a three-point hitch at the back that can lift up to 1215 lb, which is about average for tractors like this. The tractor also has a PTO (Power Take-Off) system that can run at two different speeds, useful for various attachments.

Key specifications
- Category
- Utility
- Engine power
- 24hp
- Operating weight
- 1,830 lb
- Transmission
- Hydrostatic
Category comparison
424 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 424 ranks at the 13th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar 424
The Yanmar 424 is a compact utility tractor built for various farm tasks. It has a 4x4 drive system and hydrostatic power steering, making it easy to control. The tractor uses a hydrostatic transmission, which means you can change speeds smoothly without shifting gears. Under the hood, the Yanmar 424 has a small diesel engine with three cylinders. It's naturally aspirated and liquid-cooled, producing 23.9 horsepower. The engine is average in size for its class but runs at a very high speed of 3200 rpm. This tractor is lightweight at 1830 lb, making it good for jobs that need a gentle touch on the ground. It has a three-point hitch at the back that can lift up to 1215 lb, which is about average for tractors like this. The tractor also has a PTO (Power Take-Off) system that can run at two different speeds, useful for various attachments.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | 424 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2014+ |
| Operating weight | 1,830lb(830.1 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNV80F |
| Power | 23.9hp(17.82 kW) |
| Cylinders | 3 |
| Displacement | 77.2ci(1.27 L) |
| Bore | 3.15in(80.01 mm) |
| Stroke | 3.31in(84.07 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Two-post foldable ROPS |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Independent with hydraulic clutch |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 105.5in(2,680 mm) |
|---|---|
| Width | 54.3in(1,379 mm) |
| Height | 85.8in(2,179 mm) |
| Operating weight | 1,830lb(830.1 kg) |
Capacities
| Cooling system | 0.75gal(2.84 L) |
|---|
Closest alternatives
424 compared with the nearest models by horsepower
Among utility tractors, the Yanmar 324 and the Yanmar 325 are closest to the Yanmar 424 in rated horsepower. The Yanmar 324 matches it on rated power and weighs 120 lb less. The Yanmar 325 matches it on rated power and weighs 120 lb less. Of the 3 models, the 424 has the highest weight per horsepower at 77 lb per hp.
| Spec | Yanmar 424 | Yanmar 324 | Yanmar 325 |
|---|---|---|---|
| Engine power | 23.9 hp17.8 kW | 23.9 hp17.8 kW | 23.9 hp17.8 kW |
| Operating weight | 1,830 lb830 kg | 1,715 lb778 kg | 1,715 lb778 kg |
| Weight per hp | 77 lb/hp47 kg/kW | 72 lb/hp44 kg/kW | 72 lb/hp44 kg/kW |
| Displacement | 77.2 ci1.27 L | 77.2 ci1.27 L | 77.2 ci1.27 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive | MFWD | 4WD | - |
| Years built | 2014+ | 2014+ | - |
Calculators
Calculators for the 424
PTO power
About 20 to 22 PTO hp
Estimated from the 23.9 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 23.9 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
89 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
23.9 hp is 17.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar 424
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3TNV80FAmazon
Fits the Yanmar 3TNV80F 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar 424 service and repair manualseManualOnline
Digital manuals. Built from 2014. Check the serial number range on the listing.
- Yanmar 424 operator's manualAmazon
Printed and reprint manuals. Built from 2014. Check the serial number range on the listing.
- Yanmar 424 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
424 vs. Utility median
Yanmar 424 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23.9 hp | 55 hp | -57% | 13th |
| Engine Displacement | 77.2 ci | 183 ci | -58% | 11th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 1,830 lb | 5,303 lb | -65% | 10th |
| Length | 106 in | 137 in | -23% | 12th |
| Width | 54.3 in | 66 in | -18% | 25th |
| Height | 85.8 in | 94.1 in | -9% | 34th |
| 3-Point Hitch Capacity | 1,215 lb | 3,197 lb | -62% | 9th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery
Yanmar 424 photos





FAQ
Frequently asked questions
When was the Yanmar 424 in production?
The Yanmar 424 was introduced in 2014.
What transmission is in the Yanmar 424?
Transmission on the Yanmar 424 is Hydrostatic.
What type of hydraulic system does the Yanmar 424 use?
Hydraulics on the Yanmar 424 are Open Center.
What hitch category is the Yanmar 424?
The Yanmar 424 uses a Category Category 1 hitch with a lift capacity of 1,215 lb.
How much horsepower does the Yanmar 424 have?
The Yanmar 424 produces 23.9 hp from its 3-cylinder engine. Engine displacement is 77.2 ci.
How much does the Yanmar 424 weigh?
The Yanmar 424 weighs about 1,830 lb in operating condition.
What maintenance does the Yanmar 424 require?
The Yanmar 424 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
