Yanmar FX235
The Yanmar FX235 is a compact 2WD tractor designed for various farming tasks. It features a Partial Power Shift transmission with a creeper gear, offering 18 forward and 6 reverse speeds. This gives farmers plenty of options for different jobs around the farm. Under the hood, the FX235 has a Yanmar 3TNB84 engine. This 3-cylinder diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 89.3 cubic inches and runs at 2500 RPM, producing 22.7 horsepower. The tractor's size is compact, measuring 111.8 inches long, 48.8 inches wide, and 58.1 inches tall. It weighs 2094 pounds, making it easy to maneuver in tight spaces. The FX235 comes with agricultural tires, a JIS1 hitch type, and an electric starter. It also has a 12-volt electrical system, which is standard for most modern tractors.
ManufacturerYanmarPower22.7 hpEngine3-cylTransPartial Power Shift / Creeper
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 23hp
- Operating Weight
- 2,094 lb
- Transmission
- Partial Power Shift / Creeper
At a glance
How the FX235 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
22.7 hp · 73rd
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The FX235 ranks at the 73rd percentile for engine power among recorded lawn and garden tractors.
Overview
About the Yanmar FX235
The Yanmar FX235 is a compact 2WD tractor designed for various farming tasks. It features a Partial Power Shift transmission with a creeper gear, offering 18 forward and 6 reverse speeds. This gives farmers plenty of options for different jobs around the farm. Under the hood, the FX235 has a Yanmar 3TNB84 engine. This 3-cylinder diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 89.3 cubic inches and runs at 2500 RPM, producing 22.7 horsepower. The tractor's size is compact, measuring 111.8 inches long, 48.8 inches wide, and 58.1 inches tall. It weighs 2094 pounds, making it easy to maneuver in tight spaces. The FX235 comes with agricultural tires, a JIS1 hitch type, and an electric starter. It also has a 12-volt electrical system, which is standard for most modern tractors.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | FX235 |
| Category | Lawn and Garden tractor |
| Type | 2WD |
| Operating weight | 2,094lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNB84 |
| Power | 22.7hp |
| Cylinders | 3 |
| Displacement | 89.3ci |
| Bore | 3.31in |
| Stroke | 3.46in |
Transmission
| Type | Partial Power Shift / Creeper |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Drive | 2WD |
|---|
Dimensions
| Length | 111.8in |
|---|---|
| Width | 48.8in |
| Height | 58.1in |
| Operating weight | 2,094lb |
Head to head
FX235 vs. Lawn and Garden median
How the Yanmar FX235 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22.7 hp | 18 hp | +26% | 73rd |
| Engine Displacement | 89.3 ci | 41.1 ci | +117% | 91st |
| Cylinders | 3 | 2 | +50% | 87th |
| Forward Gears | 18 | 6 | +200% | 98th |
| Operating Weight | 2,094 lb | 738 lb | +184% | 87th |
| Length | 112 in | 71.7 in | +56% | 93rd |
| Width | 48.8 in | 43.3 in | +13% | 73rd |
| Height | 58.1 in | 42.9 in | +35% | 80th |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 152–380 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar 223 | 21.5 hp | 1,537 lb | — | Compare → |
| Yanmar 425 | 23.9 hp | 1,830 lb | — | Compare → |
| Yanmar YM180 | 18 hp | 1,436 lb | — | Compare → |
| Yanmar F165 | 16 hp | — | — | Compare → |
| Yanmar YM1600 | 15.8 hp | 1,543 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

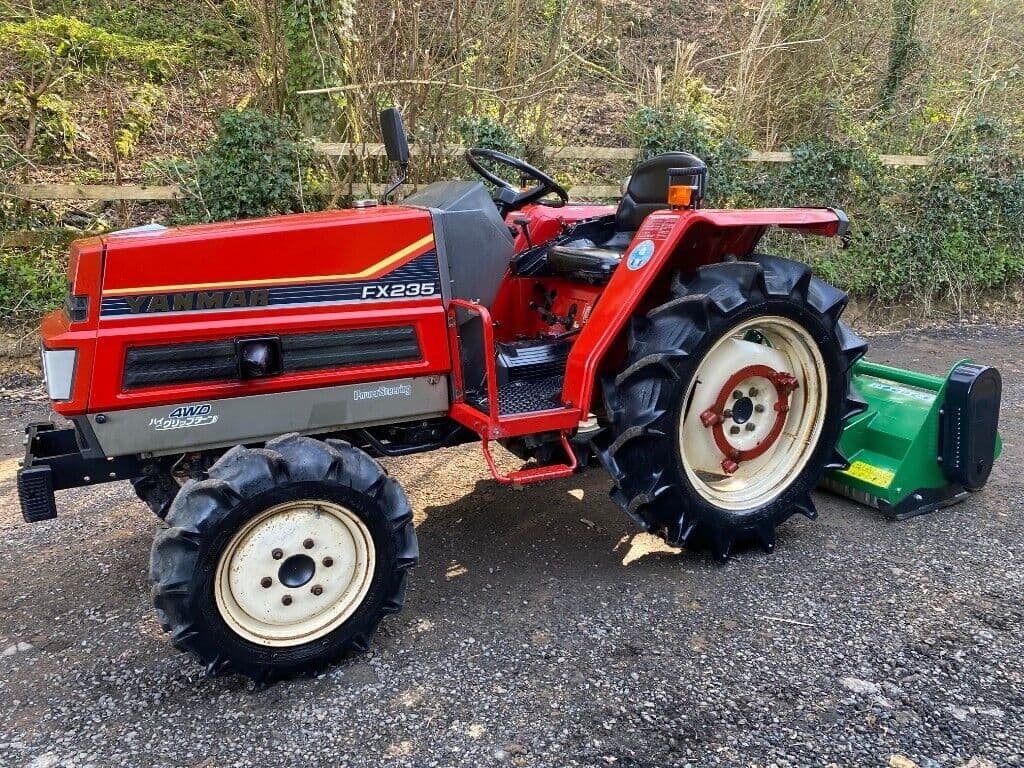

Yanmar FX235 photos
FAQ
Common questions
What is the engine power output of the Yanmar FX235?
Rated engine output for the Yanmar FX235 is 22.7 hp, delivered by a 3-cylinder engine. The engine displaces 89.3 ci.
Which transmission does the Yanmar FX235 use?
The Yanmar FX235 is equipped with a Partial Power Shift / Creeper transmission with 18 forward gears.
What is the operating weight of the Yanmar FX235?
In working trim, the Yanmar FX235 comes in at roughly 2,094 lb.
How do I maintain a Yanmar FX235?
Routine service for the Yanmar FX235 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
