UtilityPerformance profile
Yanmar FX335
The Yanmar FX335 is a utility tractor that was made from 1987 to 1992. It's part of Yanmar's Super Forte Series. This tractor has a 2WD drive system, which means it has two wheels that power the machine. The FX335 has a diesel engine made by Yanmar. It has 4 cylinders and is cooled by liquid. The engine is 100.3 cubic inches big, which is below average for tractors. It can produce 33 horsepower, which is also below average. The tractor has 12 forward gears and 6 reverse gears, giving the driver lots of options. It uses a 12-volt electrical system and has an electric starter. The rear tires are 13.6-26 in size. Yanmar is known for making reliable farm equipment, and this tractor is built to help with many farm tasks.
ManufacturerYanmarPower33 hpEngine4-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 33hp
At a glance
How the FX335 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
33 hp · 25th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The FX335 ranks at the 25th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar FX335
The Yanmar FX335 is a utility tractor that was made from 1987 to 1992. It's part of Yanmar's Super Forte Series. This tractor has a 2WD drive system, which means it has two wheels that power the machine. The FX335 has a diesel engine made by Yanmar. It has 4 cylinders and is cooled by liquid. The engine is 100.3 cubic inches big, which is below average for tractors. It can produce 33 horsepower, which is also below average. The tractor has 12 forward gears and 6 reverse gears, giving the driver lots of options. It uses a 12-volt electrical system and has an electric starter. The rear tires are 13.6-26 in size. Yanmar is known for making reliable farm equipment, and this tractor is built to help with many farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | FX335 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1987–1992 |
Engine
| Make | Yanmar |
|---|---|
| Power | 33hp |
| Cylinders | 4 |
| Displacement | 100.3ci |
| Bore | 3.07in |
| Stroke | 3.39in |
Transmission
| Forward gears | 12 |
|---|---|
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Tires
| Rear | 13.6-26 |
|---|
Head to head
FX335 vs. Utility median
How the Yanmar FX335 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 33 hp | 55 hp | -40% | 25th |
| Engine Displacement | 100 ci | 183 ci | -45% | 23rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,941–5,720 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar YM330 | 33 hp | 2,601 lb | 1978–1991 | Compare → |
| Yanmar YM336 | 33 hp | 2,627 lb | 1980–1991 | Compare → |
| Yanmar FV-330 | 32.6 hp | — | 1992–1998 | Compare → |
| Yanmar EF334 | 33.5 hp | — | 2002–2004 | Compare → |
| Yanmar EF334V | 33.5 hp | 3,263 lb | 2005–2009 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST32 | 33 hp | 2,642 lb | — | Compare → |
| AGCO ST33A | 33 hp | 2,400 lb | — | Compare → |
| AGCO ST34A | 33 hp | 3,000 lb | — | Compare → |
| AGCO ST35 | 33 hp | 3,168 lb | — | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

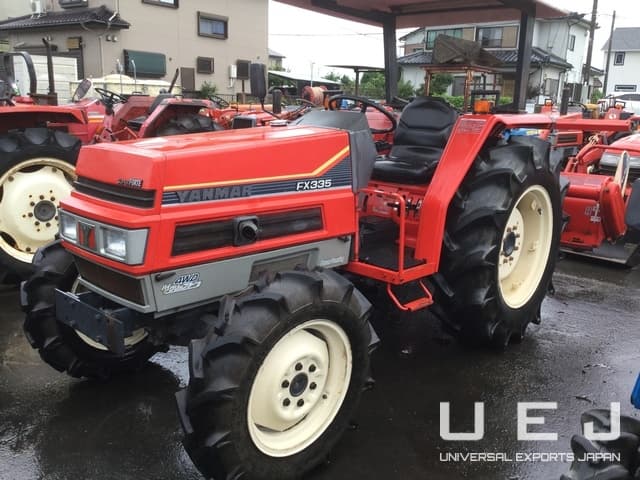

Yanmar FX335 photos
FAQ
Common questions
What years was the Yanmar FX335 manufactured?
Production of the Yanmar FX335 ran from 1987 through 1992.
How powerful is the Yanmar FX335?
The Yanmar FX335 has an engine power output of 33 hp. It is powered by a 4-cylinder engine displacing 100.3 ci.
What are the factory tire sizes for the Yanmar FX335?
The Yanmar FX335 comes with 13.6-26 rear tires.
What routine service does the Yanmar FX335 need?
Regular maintenance for the Yanmar FX335 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
