Sub-Compact tractorsSpec sheet
Yanmar LX490
The Yanmar LX490 is a compact tractor that packs a punch. Built in 2012, this machine is perfect for small to medium-sized farms. It has a strong 4-cylinder engine that's liquid-cooled, which helps it run smoothly even on hot days. The engine puts out 48.5 horsepower, giving you plenty of power for most farm tasks. This tractor is easy to maneuver, measuring 124 inches long and 83.4 inches wide. It weighs 3,618 pounds, making it sturdy but not too heavy. The LX490 comes with a three-point hitch at the back, which can lift up to 2,760 pounds. This is great for attaching different tools. It also has a PTO (Power Take-Off) that spins at 540 rpm, letting you use various attachments. The hydraulic system is open center type, which is good for running multiple tools at once. With these features, the Yanmar LX490 is a versatile helper on any farm.
Key specifications
- Category
- Sub-Compact
- Engine power
- 49hp
- Operating weight
- 3,618 lb
Category comparison
LX490 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
48.5 hp · 88th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The LX490 ranks at the 88th percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar LX490
The Yanmar LX490 is a compact tractor that packs a punch. Built in 2012, this machine is perfect for small to medium-sized farms. It has a strong 4-cylinder engine that's liquid-cooled, which helps it run smoothly even on hot days. The engine puts out 48.5 horsepower, giving you plenty of power for most farm tasks. This tractor is easy to maneuver, measuring 124 inches long and 83.4 inches wide. It weighs 3,618 pounds, making it sturdy but not too heavy. The LX490 comes with a three-point hitch at the back, which can lift up to 2,760 pounds. This is great for attaching different tools. It also has a PTO (Power Take-Off) that spins at 540 rpm, letting you use various attachments. The hydraulic system is open center type, which is good for running multiple tools at once. With these features, the Yanmar LX490 is a versatile helper on any farm.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | LX490 |
| Category | Sub-Compact tractor |
| Years built | 2012+ |
| Operating weight | 3,618lb(1,641 kg) |
Engine
| Power | 48.5hp(36.17 kW) |
|---|---|
| Cylinders | 4 |
| Displacement | 121.7ci(1.99 L) |
| Bore | 3.5in(88.9 mm) |
| Stroke | 3.6in(91.44 mm) |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Electro-hydraulic independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 124in(3,150 mm) |
|---|---|
| Width | 83.4in(2,118 mm) |
| Operating weight | 3,618lb(1,641 kg) |
Capacities
| Cooling system | 1.5gal(5.68 L) |
|---|
Closest alternatives
LX490 compared with the nearest models by horsepower
Among sub-compact tractors, the TYM T474 and the Ursus 3512 are closest to the Yanmar LX490 in rated horsepower. The TYM T474 matches it on rated power and weighs 390 lb less, carrying 67 lb per horsepower against 75 lb. The Ursus 3512 matches it on rated power and weighs 1,890 lb more, so it carries more weight per horsepower, which helps traction in draft work.
| Spec | Yanmar LX490 | TYM T474 | Ursus 3512 |
|---|---|---|---|
| Engine power | 48.5 hp36.2 kW | 48.3 hp36 kW | 48.7 hp36.3 kW |
| Operating weight | 3,618 lb1,641 kg | 3,230 lb1,465 kg | 5,512 lb2,500 kg |
| Weight per hp | 75 lb/hp45 kg/kW | 67 lb/hp41 kg/kW | 113 lb/hp69 kg/kW |
| Displacement | 121.7 ci1.99 L | 139.5 ci2.29 L | 152.7 ci2.5 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | - | Shuttle and Hydrostatic | Mechanical with sliding gears |
Calculators
Calculators for the LX490
PTO power
About 40 to 44 PTO hp
Estimated from the 48.5 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 48.5 hp tractor can run
Maximum size is about a 6 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
87 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
48.5 hp is 36.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
LX490 vs. Sub-Compact median
Yanmar LX490 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 48.5 hp | 26.9 hp | +81% | 88th |
| Engine Displacement | 122 ci | 91.4 ci | +33% | 68th |
| Cylinders | 4 | 3 | +33% | 90th |
| Operating Weight | 3,618 lb | 2,700 lb | +34% | 69th |
| Length | 124 in | 113 in | +9% | 66th |
| Width | 83.4 in | 50.7 in | +64% | 99th |
| 3-Point Hitch Capacity | 2,760 lb | 1,433 lb | +93% | 91st |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 97–816 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery

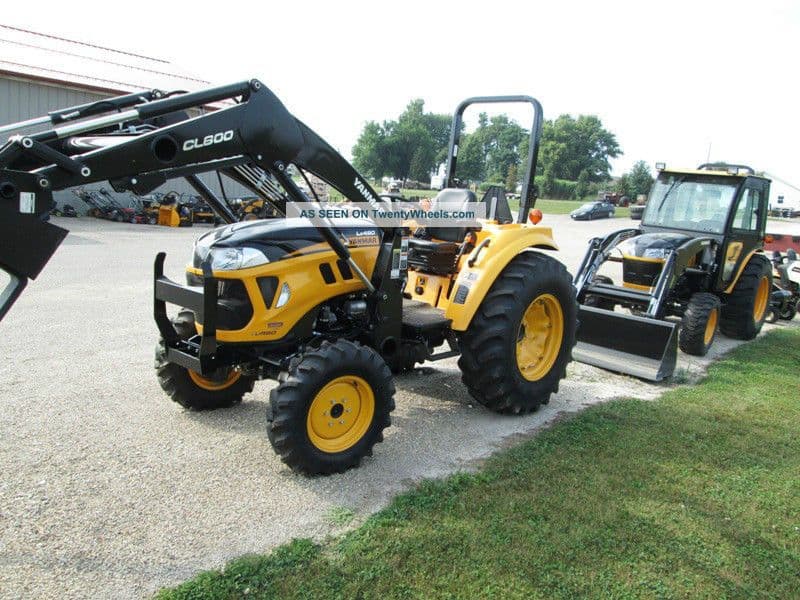

Yanmar LX490 photos
FAQ
Frequently asked questions
When was the Yanmar LX490 made?
The Yanmar LX490 entered production in 2012.
What hydraulics does the Yanmar LX490 have?
The Yanmar LX490 uses an Open center hydraulic system.
What three-point hitch category does the Yanmar LX490 use?
The Yanmar LX490 has a Category I three-point hitch rated to lift 2,760 lb.
What is the engine power output of the Yanmar LX490?
Rated engine output for the Yanmar LX490 is 48.5 hp, delivered by a 4-cylinder engine. The engine displaces 121.7 ci.
What is the operating weight of the Yanmar LX490?
The Yanmar LX490 has an operating weight of about 3,618 lb.
How do I maintain a Yanmar LX490?
Routine service for the Yanmar LX490 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
