Brand siblingSub-CompactPerformance profile
TYM T474
The TYM T474 is a versatile tractor designed for various farming tasks. It features a Kukje A2300N4 engine, which is a 4-cylinder, liquid-cooled diesel engine. With 48.3 hp of power and a displacement of 139.5 ci, this tractor offers good performance for its size. The engine runs at 2600 rpm and provides 108 lb-ft of torque at 1550 RPM, giving it the strength needed for tough jobs. This tractor comes with a flexible transmission system, offering both shuttle and hydrostatic options. It has 12 forward and 12 reverse gears, allowing for precise speed control in different working conditions. The T474 is built with durability in mind, measuring 131 inches long, 54.5 inches wide, and 94.4 inches tall. It weighs 3230 lb and has a ground clearance of 12.8 inches, making it suitable for various terrains. The tractor is equipped with a three-point hitch (Category I) at the rear and features an open center hydraulic system. For operator safety, it comes with a ROPS (Roll-Over Protective Structure).
ManufacturerTYMPower48.3 hpEngine4-cylTransShuttle and Hydrostatic
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 48hp
- Operating Weight
- 3,230 lb
- Transmission
- Shuttle and Hydrostatic
At a glance
How the T474 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
48.3 hp · 88th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The T474 ranks at the 88th percentile for engine power among recorded sub-compact tractors.
Overview
About the TYM T474
The TYM T474 is a versatile tractor designed for various farming tasks. It features a Kukje A2300N4 engine, which is a 4-cylinder, liquid-cooled diesel engine. With 48.3 hp of power and a displacement of 139.5 ci, this tractor offers good performance for its size. The engine runs at 2600 rpm and provides 108 lb-ft of torque at 1550 RPM, giving it the strength needed for tough jobs. This tractor comes with a flexible transmission system, offering both shuttle and hydrostatic options. It has 12 forward and 12 reverse gears, allowing for precise speed control in different working conditions. The T474 is built with durability in mind, measuring 131 inches long, 54.5 inches wide, and 94.4 inches tall. It weighs 3230 lb and has a ground clearance of 12.8 inches, making it suitable for various terrains. The tractor is equipped with a three-point hitch (Category I) at the rear and features an open center hydraulic system. For operator safety, it comes with a ROPS (Roll-Over Protective Structure).
Full specifications
Every recorded spec
General
| Manufacturer | TYM |
|---|---|
| Model | T474 |
| Category | Sub-Compact tractor |
| Operating weight | 3,230lb |
Engine
| Make | Kukje |
|---|---|
| Model | A2300N4 |
| Power | 48.3hp |
| Cylinders | 4 |
| Displacement | 139.5ci |
| Bore | 3.47in |
| Stroke | 3.7in |
Transmission
| Type | Shuttle and Hydrostatic |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Cab | ROPS |
|---|
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 131in |
|---|---|
| Width | 54.5in |
| Height | 94.4in |
| Operating weight | 3,230lb |
Capacities
| Cooling system | 1.73gal |
|---|
Head to head
T474 vs. Sub-Compact median
How the TYM T474 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 48.3 hp | 26.9 hp | +80% | 88th |
| Engine Displacement | 140 ci | 91.4 ci | +53% | 78th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,230 lb | 2,700 lb | +20% | 60th |
| Length | 131 in | 113 in | +16% | 82nd |
| Width | 54.5 in | 50.7 in | +7% | 60th |
| Height | 94.4 in | 78.4 in | +20% | 85th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared TYM tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 5800 | 48 hp | — | — | Compare → |
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
| Allis Chalmers 5050 | 50 hp | 4,410 lb | 1977–1983 | Compare → |
| Allis Chalmers FD5 | 50 hp | 5,412 lb | — | Compare → |
Explore
TYM siblings
Explore
Similar-spec models
Gallery

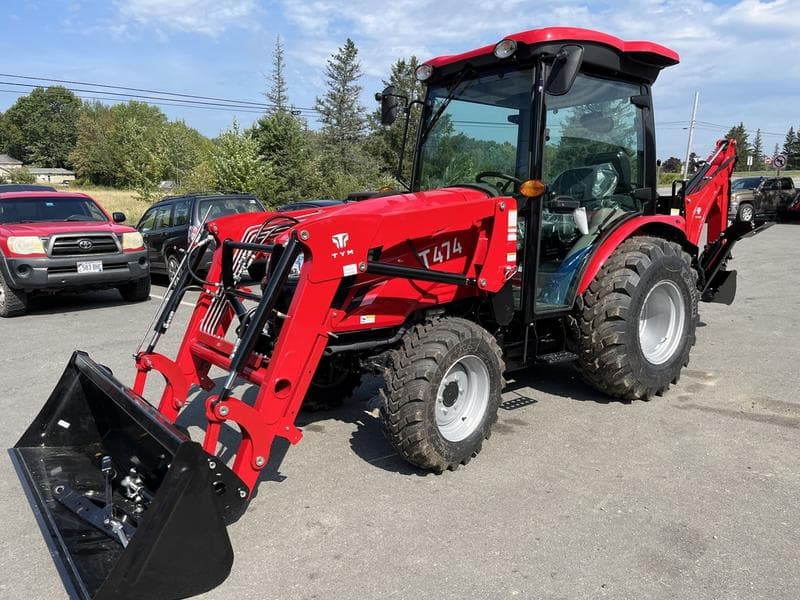

TYM T474 photos
FAQ
Common questions
What is the engine power output of the TYM T474?
Rated engine output for the TYM T474 is 48.3 hp, delivered by a 4-cylinder engine. The engine displaces 139.5 ci.
What hydraulics does the TYM T474 have?
The TYM T474 uses an Open center hydraulic system.
What three-point hitch category does the TYM T474 use?
The TYM T474 has a Category I three-point hitch.
What is the operating weight of the TYM T474?
In working trim, the TYM T474 comes in at roughly 3,230 lb.
Which transmission does the TYM T474 use?
The TYM T474 is equipped with a Shuttle and Hydrostatic transmission with 12 forward gears.
How do I maintain a TYM T474?
Routine service for the TYM T474 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
