Yanmar YM2202
The Yanmar YM2202 is a utility tractor that was made from 1982 to 1983. It has a diesel engine made by Yanmar, with three cylinders and liquid cooling. The engine is small, with a displacement of 87.2 cubic inches, which is below average for tractors. It can produce 22 horsepower, which is also on the lower end of the power range for tractors. This tractor has a gear transmission with 15 forward gears and 5 reverse gears. This gives the driver many options for different speeds and tasks. The YM2202 starts with an electric starter and runs on a 12-volt system. Yanmar is known for making reliable, compact tractors, and this model fits that description. It's a good choice for farmers who need a smaller tractor for light to medium work around the farm.

Key specifications
- Category
- Utility
- Engine power
- 22hp
- Transmission
- Gear
Category comparison
YM2202 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The YM2202 ranks at the 11th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar YM2202
The Yanmar YM2202 is a utility tractor that was made from 1982 to 1983. It has a diesel engine made by Yanmar, with three cylinders and liquid cooling. The engine is small, with a displacement of 87.2 cubic inches, which is below average for tractors. It can produce 22 horsepower, which is also on the lower end of the power range for tractors. This tractor has a gear transmission with 15 forward gears and 5 reverse gears. This gives the driver many options for different speeds and tasks. The YM2202 starts with an electric starter and runs on a 12-volt system. Yanmar is known for making reliable, compact tractors, and this model fits that description. It's a good choice for farmers who need a smaller tractor for light to medium work around the farm.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | YM2202 |
| Category | Utility tractor |
| Years built | 1982–1983 |
Engine
| Make | Yanmar |
|---|---|
| Model | 3T84 |
| Power | 22hp(16.41 kW) |
| Cylinders | 3 |
| Displacement | 87.2ci(1.43 L) |
| Bore | 3.31in(84.07 mm) |
| Stroke | 3.39in(86.11 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 15 |
| Reverse gears | 5 |
Closest alternatives
YM2202 compared with the nearest models by horsepower
Among utility tractors, the Yanmar AF222 and the Yanmar AF322 are closest to the Yanmar YM2202 in rated horsepower. The Yanmar AF222 matches it on rated power. It entered production in 2002, 20 years after the YM2202. The Yanmar AF322 matches it on rated power. It entered production in 2002, 20 years after the YM2202.
| Spec | Yanmar YM2202 | Yanmar AF222 | Yanmar AF322 |
|---|---|---|---|
| Engine power | 22 hp16.4 kW | 22 hp16.4 kW | 22 hp16.4 kW |
| Operating weight | - | 1,929 lb875 kg | 2,557 lb1,160 kg |
| Weight per hp | - | 88 lb/hp53 kg/kW | 116 lb/hp71 kg/kW |
| Displacement | 87.2 ci1.43 L | 73.5 ci1.2 L | - |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | Manual | Power shuttle |
| Drive | - | 4WD | 4WD |
| Years built | 1982-1983 | 2002-2004 | 2002-2005 |
Calculators
Calculators for the YM2202
PTO power
About 18 to 20 PTO hp
Estimated from the 22 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 22 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Units
22 hp is 16.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar YM2202
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3T84Amazon
Fits the Yanmar 3T84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3T84Amazon
Fits the Yanmar 3T84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3T84Amazon
Fits the Yanmar 3T84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3T84Amazon
Fits the Yanmar 3T84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar YM2202 service and repair manualseManualOnline
Digital manuals. Built 1982 to 1983. Check the serial number range on the listing.
- Yanmar YM2202 operator's manualAmazon
Printed and reprint manuals. Built 1982 to 1983. Check the serial number range on the listing.
- Yanmar YM2202 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
YM2202 vs. Utility median
Yanmar YM2202 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22 hp | 55 hp | -60% | 11th |
| Engine Displacement | 87.2 ci | 183 ci | -52% | 15th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 15 | 12 | +25% | 64th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery

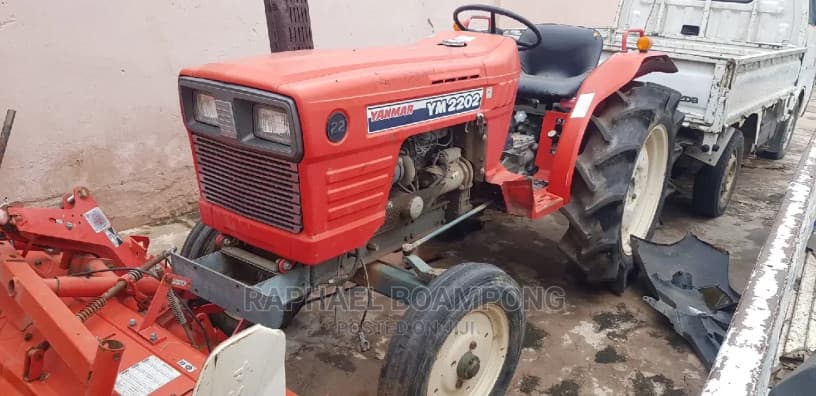

Yanmar YM2202 photos





FAQ
Frequently asked questions
What years was the Yanmar YM2202 manufactured?
Production of the Yanmar YM2202 ran from 1982 through 1983.
What type of transmission does the Yanmar YM2202 have?
The Yanmar YM2202 uses a Gear transmission offering 15 forward gears.
How powerful is the Yanmar YM2202?
The Yanmar YM2202 has an engine power output of 22 hp. It is powered by a 3-cylinder engine displacing 87.2 ci.
What routine service does the Yanmar YM2202 need?
Regular maintenance for the Yanmar YM2202 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
