UtilityPerformance profile
Yanmar YM2310
The Yanmar YM2310 is a compact utility tractor that was made in 1980 and 1981. It's a 2WD model, which means it has two-wheel drive. This tractor is small but strong, measuring 113 inches long, 50 inches wide, and 73 inches tall. It weighs 1,984 pounds, which is on the lighter side for tractors. The YM2310 has a Yanmar 3T84H engine with three cylinders. This diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 87.2 cubic inches, which is below average for tractors. The engine produces 22.7 horsepower, which is also on the lower end of the power range. Despite its smaller size and power, this tractor is designed to be useful for various farm tasks. It has a partial power shift transmission with 15 forward gears and 5 reverse gears, giving the operator good control over speed and power.
ManufacturerYanmarPower22.7 hpEngine3-cylTransPartial Power Shift
Quick specs
- Category
- Utility
- Engine Power Output
- 23hp
- Operating Weight
- 1,984 lb
- Transmission
- Partial Power Shift
At a glance
How the YM2310 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
22.7 hp · 12th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The YM2310 ranks at the 12th percentile for engine power among recorded utility tractors.
Overview
About the Yanmar YM2310
The Yanmar YM2310 is a compact utility tractor that was made in 1980 and 1981. It's a 2WD model, which means it has two-wheel drive. This tractor is small but strong, measuring 113 inches long, 50 inches wide, and 73 inches tall. It weighs 1,984 pounds, which is on the lighter side for tractors. The YM2310 has a Yanmar 3T84H engine with three cylinders. This diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 87.2 cubic inches, which is below average for tractors. The engine produces 22.7 horsepower, which is also on the lower end of the power range. Despite its smaller size and power, this tractor is designed to be useful for various farm tasks. It has a partial power shift transmission with 15 forward gears and 5 reverse gears, giving the operator good control over speed and power.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | YM2310 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1980–1981 |
| Operating weight | 1,984lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3T84H |
| Power | 22.7hp |
| Cylinders | 3 |
| Displacement | 87.2ci |
| Bore | 3.31in |
| Stroke | 3.39in |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 15 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 113in |
|---|---|
| Width | 50in |
| Height | 73in |
| Operating weight | 1,984lb |
Head to head
YM2310 vs. Utility median
How the Yanmar YM2310 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22.7 hp | 55 hp | -59% | 12th |
| Engine Displacement | 87.2 ci | 183 ci | -52% | 15th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 15 | 12 | +25% | 64th |
| Operating Weight | 1,984 lb | 5,303 lb | -63% | 12th |
| Length | 113 in | 137 in | -17% | 18th |
| Width | 50 in | 66 in | -24% | 17th |
| Height | 73 in | 94.1 in | -22% | 18th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar F-230 | 22.7 hp | 1,940 lb | 1992–1998 | Compare → |
| Yanmar YM236 | 23 hp | — | — | Compare → |
| Yanmar FV-230 | 23.2 hp | — | 1991–1998 | Compare → |
| Yanmar AF222 | 22 hp | 1,929 lb | 2002–2004 | Compare → |
| Yanmar AF322 | 22 hp | 2,557 lb | 2002–2005 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

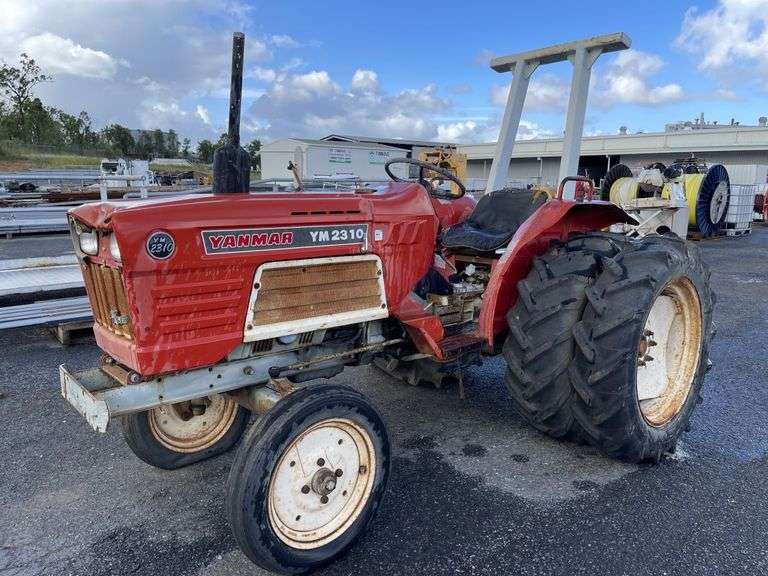

Yanmar YM2310 photos
FAQ
Common questions
What years was the Yanmar YM2310 manufactured?
Production of the Yanmar YM2310 ran from 1980 through 1981.
What type of transmission does the Yanmar YM2310 have?
The Yanmar YM2310 uses a Partial Power Shift transmission offering 15 forward gears.
How powerful is the Yanmar YM2310?
The Yanmar YM2310 has an engine power output of 22.7 hp. It is powered by a 3-cylinder engine displacing 87.2 ci.
What is the working weight of the Yanmar YM2310?
The operating weight of the Yanmar YM2310 is approximately 1,984 lb.
What routine service does the Yanmar YM2310 need?
Regular maintenance for the Yanmar YM2310 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
