Zetor 3016
The Zetor 3016 is a compact track tractor designed for various farming tasks. It features a unique track system instead of wheels, which helps it move easily on different types of ground. The tractor has a gear transmission with 10 forward gears and 2 reverse gears, giving the driver good control over speed and power. Under the hood, the Zetor 3016 has a 3-cylinder diesel engine made by Zetor itself. This engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. It produces 39 horsepower at 2000 rpm, which is suitable for small to medium-sized farms. The engine has a displacement of 142.7 cubic inches, which is average for its class. The tractor weighs 3263 pounds, making it relatively light and easy to maneuver. It also comes with a three-point hitch at the rear, which is useful for attaching various farm tools and implements.
ManufacturerZetorPower39 hpEngine3-cylTransGear
Quick specs
- Category
- Crawler
- Engine Power Output
- 39hp
- Operating Weight
- 3,263 lb
- Transmission
- Gear
At a glance
How the 3016 compares
vs. Crawler medianDistribution
Engine Power (hp)
Across all Crawler tractors
39 hp · 19th
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The 3016 ranks at the 19th percentile for engine power among recorded crawler tractors.
Overview
About the Zetor 3016
The Zetor 3016 is a compact track tractor designed for various farming tasks. It features a unique track system instead of wheels, which helps it move easily on different types of ground. The tractor has a gear transmission with 10 forward gears and 2 reverse gears, giving the driver good control over speed and power. Under the hood, the Zetor 3016 has a 3-cylinder diesel engine made by Zetor itself. This engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. It produces 39 horsepower at 2000 rpm, which is suitable for small to medium-sized farms. The engine has a displacement of 142.7 cubic inches, which is average for its class. The tractor weighs 3263 pounds, making it relatively light and easy to maneuver. It also comes with a three-point hitch at the rear, which is useful for attaching various farm tools and implements.
Full specifications
Every recorded spec
General
| Manufacturer | Zetor |
|---|---|
| Model | 3016 |
| Category | Crawler tractor |
| Type | Track |
| Operating weight | 3,263lb |
Engine
| Make | Zetor |
|---|---|
| Power | 39hp |
| Cylinders | 3 |
| Displacement | 142.7ci |
| Bore | 3.74in |
| Stroke | 4.33in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | Track |
|---|---|
| Drive | Track |
Dimensions
| Operating weight | 3,263lb |
|---|
Head to head
3016 vs. Crawler median
How the Zetor 3016 compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 39 hp | 200 hp | -80% | 19th |
| Engine Displacement | 143 ci | 468 ci | -70% | 19th |
| Cylinders | 3 | 6 | -50% | 10th |
| Forward Gears | 10 | 10 | at median | 50th |
| Operating Weight | 3,263 lb | 23,320 lb | -86% | 8th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 142–192 models).
Compare to tractors with similar specs
Commonly compared Zetor tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Zetor 4016 | 53 hp | 4,332 lb | — | Compare → |
| Zetor 5516 | 60 hp | 5,379 lb | — | Compare → |
| Zetor 3013 | 39 hp | 3,263 lb | — | Compare → |
| Zetor 3017 | 39 hp | 3,263 lb | — | Compare → |
| Zetor 3045 | 39 hp | 3,263 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Zetor siblings
Explore
Similar-spec models
Gallery

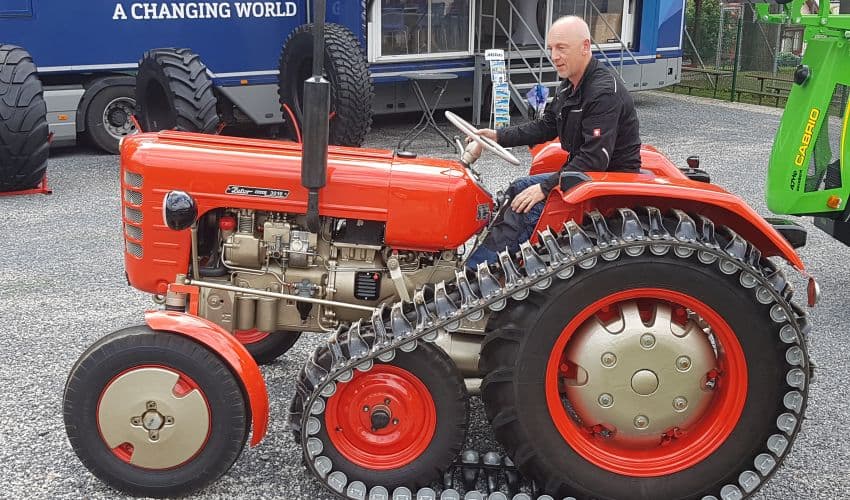

Zetor 3016 photos
FAQ
Common questions
How much horsepower does the Zetor 3016 have?
The Zetor 3016 produces 39 hp from its 3-cylinder engine. Engine displacement is 142.7 ci.
How much does the Zetor 3016 weigh?
The Zetor 3016 weighs about 3,263 lb in operating condition.
What transmission is in the Zetor 3016?
Transmission on the Zetor 3016 is Gear, with 10 forward speeds.
What hitch category is the Zetor 3016?
The Zetor 3016 uses a Category II hitch.
What maintenance does the Zetor 3016 require?
Like any tractor, the Zetor 3016 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
