CrawlerPerformance profile
Mitsubishi GAK360
The Mitsubishi GAK360 is a unique crawler tractor with a half-track chassis. It's powered by a Shibaura N3LDI-T engine, which is a 3-cylinder, turbocharged diesel engine. This engine is liquid-cooled and has a displacement of 101.4 ci, which is below average for tractors in its class. Despite its smaller size, the engine packs a punch with 36.7 hp at 2600 rpm, which is a very high rated speed compared to other tractors. This tractor is compact, measuring 130.7 inches long, 65.2 inches wide, and 97.4 inches tall. It has a light operating weight of 4464 lb, making it easy to maneuver in tight spaces. The GAK360 features a powerful transmission with 24 forward and 24 reverse gears, giving operators plenty of options for different tasks. It also comes with power steering and a ROPS (Roll-Over Protective Structure) for safety. The electric starter and 12V operating voltage ensure easy operation in various conditions.
ManufacturerMitsubishiPower36.7 hpEngine3-cyl
Quick specs
- Category
- Crawler
- Engine Power Output
- 37hp
- Operating Weight
- 4,464 lb
At a glance
How the GAK360 compares
vs. Crawler medianDistribution
Engine Power (hp)
Across all Crawler tractors
36.7 hp · 18th
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The GAK360 ranks at the 18th percentile for engine power among recorded crawler tractors.
Overview
About the Mitsubishi GAK360
The Mitsubishi GAK360 is a unique crawler tractor with a half-track chassis. It's powered by a Shibaura N3LDI-T engine, which is a 3-cylinder, turbocharged diesel engine. This engine is liquid-cooled and has a displacement of 101.4 ci, which is below average for tractors in its class. Despite its smaller size, the engine packs a punch with 36.7 hp at 2600 rpm, which is a very high rated speed compared to other tractors. This tractor is compact, measuring 130.7 inches long, 65.2 inches wide, and 97.4 inches tall. It has a light operating weight of 4464 lb, making it easy to maneuver in tight spaces. The GAK360 features a powerful transmission with 24 forward and 24 reverse gears, giving operators plenty of options for different tasks. It also comes with power steering and a ROPS (Roll-Over Protective Structure) for safety. The electric starter and 12V operating voltage ensure easy operation in various conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Mitsubishi |
|---|---|
| Model | GAK360 |
| Category | Crawler tractor |
| Type | Half-track |
| Operating weight | 4,464lb |
Engine
| Make | Shibaura |
|---|---|
| Model | N3LDI-T |
| Power | 36.7hp |
| Cylinders | 3 |
| Displacement | 101.4ci |
| Bore | 3.31in |
| Stroke | 3.94in |
Transmission
| Forward gears | 24 |
|---|---|
| Reverse gears | 24 |
Chassis & drive
| Chassis | Half-track |
|---|---|
| Drive | Track |
| Steering | Power |
| Cab | ROPS |
Dimensions
| Length | 130.7in |
|---|---|
| Width | 65.2in |
| Height | 97.4in |
| Operating weight | 4,464lb |
Head to head
GAK360 vs. Crawler median
How the Mitsubishi GAK360 compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 36.7 hp | 200 hp | -82% | 18th |
| Engine Displacement | 101 ci | 468 ci | -78% | 10th |
| Cylinders | 3 | 6 | -50% | 10th |
| Forward Gears | 24 | 10 | +140% | 94th |
| Operating Weight | 4,464 lb | 23,320 lb | -81% | 14th |
| Length | 131 in | 146 in | -10% | 38th |
| Width | 65.2 in | 79.5 in | -18% | 36th |
| Height | 97.4 in | 90.6 in | +8% | 57th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 134–192 models).
Compare to tractors with similar specs
Commonly compared Mitsubishi tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Mitsubishi GAK36 | 36.1 hp | 4,277 lb | — | Compare → |
| Mitsubishi GAK330 | 33 hp | 4,464 lb | — | Compare → |
| Mitsubishi GAK32 | 32.6 hp | 4,277 lb | — | Compare → |
| Mitsubishi GAK41 | 41.1 hp | 5,412 lb | — | Compare → |
| Mitsubishi GAK450 | 45.6 hp | 5,600 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
| Avery 18-36 | 36.4 hp | 9,250 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Antonio Carraro TTR 3800 | 36 hp | 2,150 lb | — | Compare → |
| Barreiros R-350 S | 36 hp | — | — | Compare → |
Explore
Mitsubishi siblings
Explore
Similar-spec models
Gallery

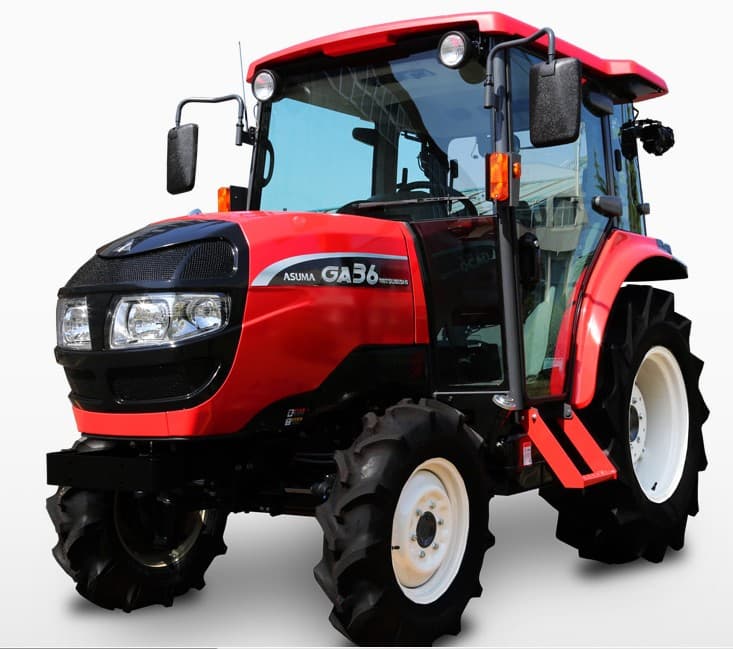

Mitsubishi GAK360 photos
FAQ
Common questions
How powerful is the Mitsubishi GAK360?
The Mitsubishi GAK360 has an engine power output of 36.7 hp. It is powered by a 3-cylinder engine displacing 101.4 ci.
What is the working weight of the Mitsubishi GAK360?
The operating weight of the Mitsubishi GAK360 is approximately 4,464 lb.
What routine service does the Mitsubishi GAK360 need?
Regular maintenance for the Mitsubishi GAK360 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
