UtilityPerformance profile
CaseIH 245
The CaseIH 245 is a small utility tractor made from 1986 to 1990. It has a 2WD chassis and is powered by a Mitsubishi K3D diesel engine. This engine has 3 cylinders and produces 21 horsepower, which is on the lower end compared to other tractors. It's cooled by liquid and uses natural aspiration. The tractor has a constant mesh transmission with 9 forward gears and 3 reverse gears. It features a Category I hitch that can lift up to 1500 pounds, which is about average. The CaseIH 245 has a PTO (power take-off) system with two speeds: 540 rpm and 1150 rpm. For safety, it comes with a two-post folding ROPS (Roll-Over Protective Structure). The tractor is compact, measuring 111.8 inches long, 43.7 inches wide, and 53.9 inches tall. It weighs 1910 pounds, which is lighter than many other tractors.
ManufacturerCaseIHPower21 hpEngine3-cylTransConstant mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 21hp
- Operating Weight
- 1,910 lb
- Transmission
- Constant mesh
At a glance
How the 245 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
21 hp · 9th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 245 ranks at the 9th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH 245
The CaseIH 245 is a small utility tractor made from 1986 to 1990. It has a 2WD chassis and is powered by a Mitsubishi K3D diesel engine. This engine has 3 cylinders and produces 21 horsepower, which is on the lower end compared to other tractors. It's cooled by liquid and uses natural aspiration. The tractor has a constant mesh transmission with 9 forward gears and 3 reverse gears. It features a Category I hitch that can lift up to 1500 pounds, which is about average. The CaseIH 245 has a PTO (power take-off) system with two speeds: 540 rpm and 1150 rpm. For safety, it comes with a two-post folding ROPS (Roll-Over Protective Structure). The tractor is compact, measuring 111.8 inches long, 43.7 inches wide, and 53.9 inches tall. It weighs 1910 pounds, which is lighter than many other tractors.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 245 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1986–1990 |
| Operating weight | 1,910lb |
Engine
| Make | Mitsubishi |
|---|---|
| Model | K3D |
| Power | 21hp |
| Cylinders | 3 |
| Displacement | 59.74ci |
| Bore | 2.87in |
| Stroke | 3.07in |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Mechanical drum |
| Cab | Two-post folding ROPS |
Power take-off
| Rear PTO | Transmission |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 111.8in |
|---|---|
| Width | 43.7in |
| Height | 53.9in |
| Operating weight | 1,910lb |
Capacities
| Cooling system | 1.3gal |
|---|
Head to head
245 vs. Utility median
How the CaseIH 245 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21 hp | 55 hp | -62% | 9th |
| Engine Displacement | 59.7 ci | 183 ci | -67% | 5th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 1,910 lb | 5,303 lb | -64% | 11th |
| Length | 112 in | 137 in | -18% | 17th |
| Width | 43.7 in | 66 in | -34% | 8th |
| Height | 53.9 in | 94.1 in | -43% | 5th |
| 3-Point Hitch Capacity | 1,500 lb | 3,197 lb | -53% | 15th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Farmall DX21 | 21 hp | 1,592 lb | — | Compare → |
| CaseIH Farmall DX22E | 22 hp | 1,314 lb | — | Compare → |
| CaseIH 1120 | 19 hp | 1,380 lb | 1991+ | Compare → |
| CaseIH 1130 | 23 hp | 2,006 lb | 1991+ | Compare → |
| CaseIH 235 | 18 hp | 1,350 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT120 | 21 hp | 2,055 lb | 2008–2010 | Compare → |
| Bolens G212 G2102 | 21 hp | 1,588 lb | — | Compare → |
| Bolens G214 G2104 | 21 hp | 1,676 lb | — | Compare → |
| Branson 2100 | 21 hp | 1,891 lb | — | Compare → |
| Bobcat CT1021 | 21.1 hp | 1,488 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

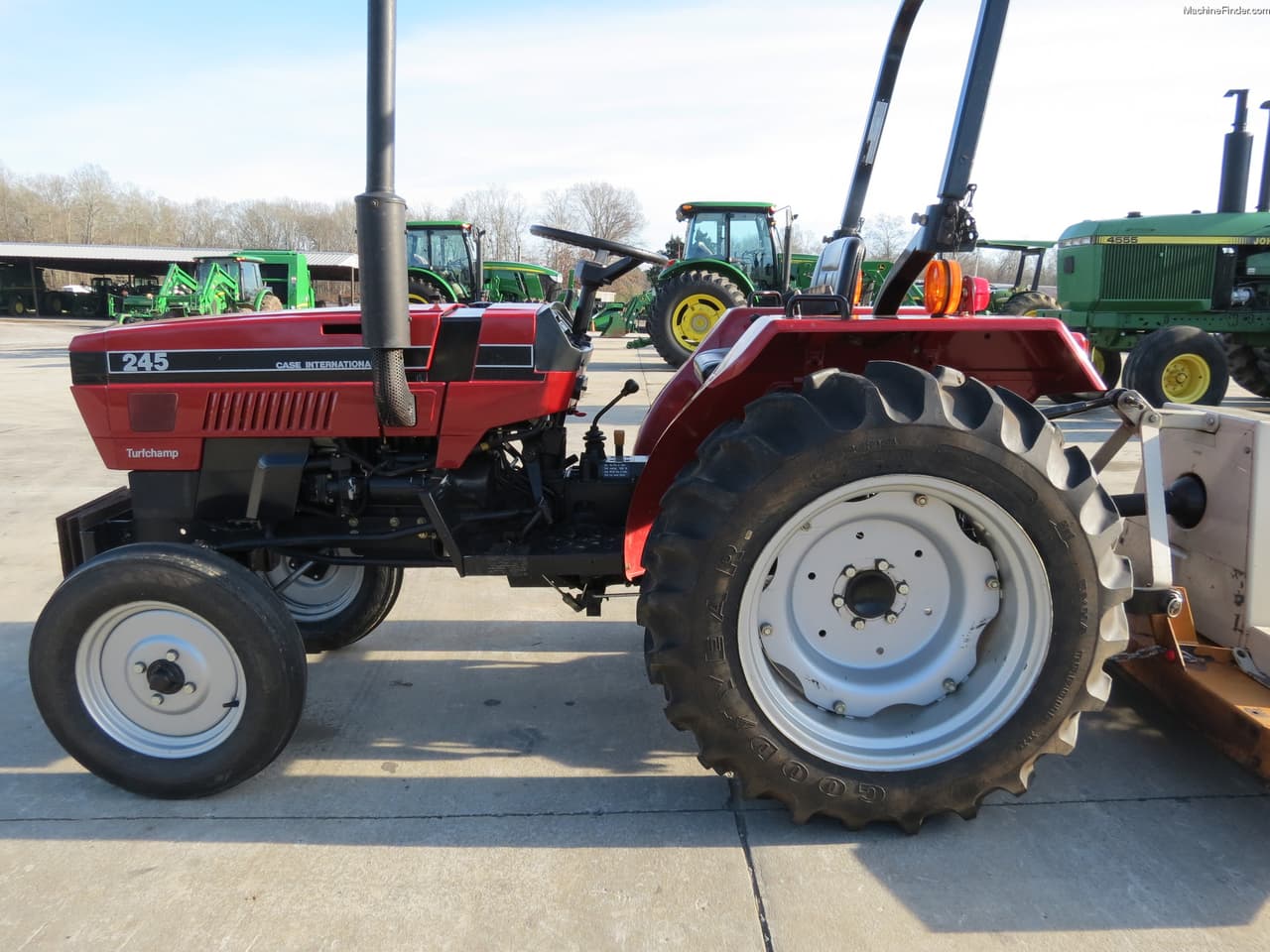

CaseIH 245 photos
FAQ
Common questions
When was the CaseIH 245 made?
The CaseIH 245 was manufactured from 1986 to 1990.
What hitch category is the CaseIH 245?
The CaseIH 245 uses a Category I hitch with a lift capacity of 1,500 lb.
What is the engine power output of the CaseIH 245?
Rated engine output for the CaseIH 245 is 21 hp, delivered by a 3-cylinder engine. The engine displaces 59.74 ci.
What is the operating weight of the CaseIH 245?
In working trim, the CaseIH 245 comes in at roughly 1,910 lb.
Which transmission does the CaseIH 245 use?
The CaseIH 245 is equipped with a Constant mesh transmission with 9 forward gears.
How do I maintain a CaseIH 245?
Routine service for the CaseIH 245 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
