Branson 4015H
The Branson 4015H is a compact but powerful tractor designed for various farming tasks. It features a hydrostatic transmission with infinite forward and reverse gears, giving the operator smooth and easy control. The tractor is powered by a Kukje A1700T2 engine, which is a turbocharged diesel engine with 3 cylinders and liquid cooling. This tractor packs a punch with its 40 hp engine, running at 2600 rpm. The engine has a displacement of 104.6 ci, with a bore of 3.46 in and a stroke of 3.7 in. The Branson 4015H is compact, measuring 118 in long and 57 in wide, making it easy to maneuver in tight spaces. It weighs 3014 lb and comes with a Type I rear hitch for attaching various implements. The tractor starts with an electric starter and runs on a 12-volt system, ensuring reliable operation in various conditions.
ManufacturerBransonPower40 hpEngine3-cylTransHydrostatic
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 40hp
- Operating Weight
- 3,014 lb
- Transmission
- Hydrostatic
At a glance
How the 4015H compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
40 hp · 76th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 4015H ranks at the 76th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 4015H
The Branson 4015H is a compact but powerful tractor designed for various farming tasks. It features a hydrostatic transmission with infinite forward and reverse gears, giving the operator smooth and easy control. The tractor is powered by a Kukje A1700T2 engine, which is a turbocharged diesel engine with 3 cylinders and liquid cooling. This tractor packs a punch with its 40 hp engine, running at 2600 rpm. The engine has a displacement of 104.6 ci, with a bore of 3.46 in and a stroke of 3.7 in. The Branson 4015H is compact, measuring 118 in long and 57 in wide, making it easy to maneuver in tight spaces. It weighs 3014 lb and comes with a Type I rear hitch for attaching various implements. The tractor starts with an electric starter and runs on a 12-volt system, ensuring reliable operation in various conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 4015H |
| Category | Sub-Compact tractor |
| Operating weight | 3,014lb |
Engine
| Make | Kukje |
|---|---|
| Model | A1700T2 |
| Power | 40hp |
| Cylinders | 3 |
| Displacement | 104.6ci |
| Bore | 3.46in |
| Stroke | 3.7in |
Transmission
| Type | Hydrostatic |
|---|
Dimensions
| Length | 118in |
|---|---|
| Width | 57in |
| Operating weight | 3,014lb |
Head to head
4015H vs. Sub-Compact median
How the Branson 4015H compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 26.9 hp | +49% | 76th |
| Engine Displacement | 105 ci | 91.4 ci | +14% | 61st |
| Cylinders | 3 | 3 | at median | 50th |
| Operating Weight | 3,014 lb | 2,700 lb | +12% | 57th |
| Length | 118 in | 113 in | +4% | 57th |
| Width | 57 in | 50.7 in | +12% | 66th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 4015R | 40 hp | 3,014 lb | — | Compare → |
| Branson 4020 | 40 hp | 3,624 lb | — | Compare → |
| Branson 3820i | 38 hp | 4,087 lb | — | Compare → |
| Branson 4215CH | 42 hp | 3,664 lb | — | Compare → |
| Branson 4220i | 42 hp | 4,087 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

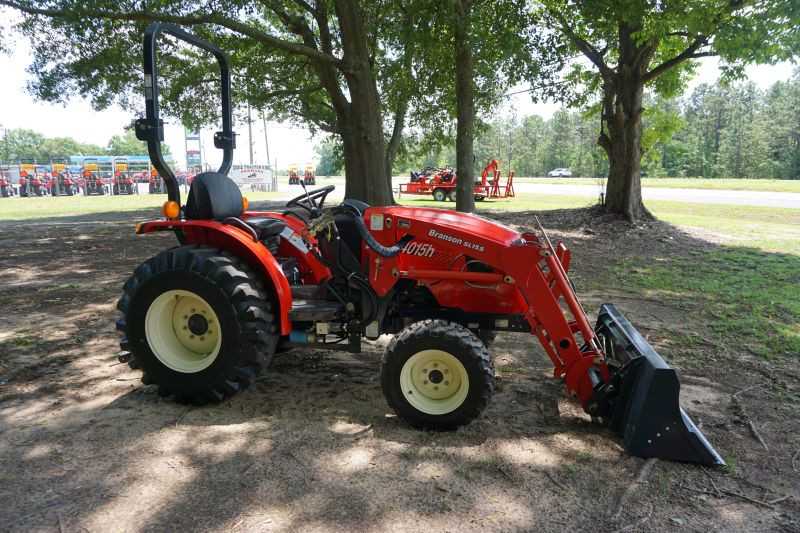

Branson 4015H photos
FAQ
Common questions
How much horsepower does the Branson 4015H have?
The Branson 4015H produces 40 hp from its 3-cylinder engine. Engine displacement is 104.6 ci.
How much does the Branson 4015H weigh?
The Branson 4015H weighs about 3,014 lb in operating condition.
What transmission is in the Branson 4015H?
Transmission on the Branson 4015H is Hydrostatic.
What maintenance does the Branson 4015H require?
Like any tractor, the Branson 4015H needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
