Brand siblingSub-CompactPerformance profile
Branson 4015R
The Branson 4015R is a compact but powerful tractor designed for various farming tasks. It features a 40 hp diesel engine made by Kukje, with three cylinders and turbocharging for extra power. The engine is liquid-cooled, which helps it run smoothly in different weather conditions. This tractor has a synchronized shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different jobs. It has power steering, making it easy to control. The 4015R is built tough, weighing 3,014 lb, and measures 118 inches long, 57 inches wide, and 94 inches tall. It comes with an open operator station and a rear hitch for attaching tools. The tractor also has a tow hitch, which is great for pulling trailers or other equipment around the farm.
ManufacturerBransonPower40 hpEngine3-cylTranssynchronized shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 40hp
- Operating Weight
- 3,014 lb
- Transmission
- synchronized shuttle
At a glance
How the 4015R compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
40 hp · 76th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 4015R ranks at the 76th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 4015R
The Branson 4015R is a compact but powerful tractor designed for various farming tasks. It features a 40 hp diesel engine made by Kukje, with three cylinders and turbocharging for extra power. The engine is liquid-cooled, which helps it run smoothly in different weather conditions. This tractor has a synchronized shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different jobs. It has power steering, making it easy to control. The 4015R is built tough, weighing 3,014 lb, and measures 118 inches long, 57 inches wide, and 94 inches tall. It comes with an open operator station and a rear hitch for attaching tools. The tractor also has a tow hitch, which is great for pulling trailers or other equipment around the farm.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 4015R |
| Category | Sub-Compact tractor |
| Operating weight | 3,014lb |
Engine
| Make | Kukje |
|---|---|
| Model | A1700T2 |
| Power | 40hp |
| Cylinders | 3 |
| Displacement | 104.6ci |
| Bore | 3.46in |
| Stroke | 3.7in |
Transmission
| Type | synchronized shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Steering | Power |
|---|---|
| Cab | Open operator station |
Dimensions
| Length | 118in |
|---|---|
| Width | 57in |
| Height | 94in |
| Operating weight | 3,014lb |
Head to head
4015R vs. Sub-Compact median
How the Branson 4015R compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 26.9 hp | +49% | 76th |
| Engine Displacement | 105 ci | 91.4 ci | +14% | 61st |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,014 lb | 2,700 lb | +12% | 57th |
| Length | 118 in | 113 in | +4% | 57th |
| Width | 57 in | 50.7 in | +12% | 66th |
| Height | 94 in | 78.4 in | +20% | 84th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 4015H | 40 hp | 3,014 lb | — | Compare → |
| Branson 4020 | 40 hp | 3,624 lb | — | Compare → |
| Branson 3820i | 38 hp | 4,087 lb | — | Compare → |
| Branson 4215CH | 42 hp | 3,664 lb | — | Compare → |
| Branson 4220i | 42 hp | 4,087 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

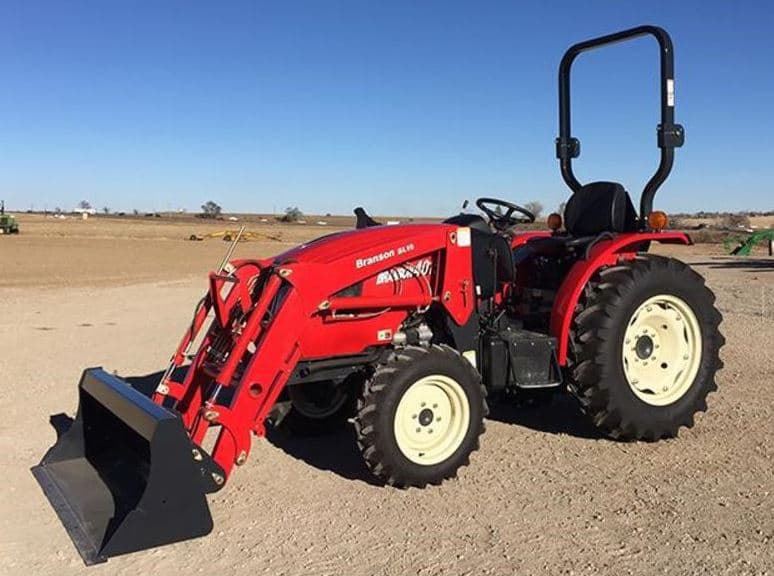

Branson 4015R photos
FAQ
Common questions
How powerful is the Branson 4015R?
The Branson 4015R has an engine power output of 40 hp. It is powered by a 3-cylinder engine displacing 104.6 ci.
What three-point hitch category does the Branson 4015R use?
The Branson 4015R has a Category I three-point hitch.
What is the working weight of the Branson 4015R?
The operating weight of the Branson 4015R is approximately 3,014 lb.
What type of transmission does the Branson 4015R have?
The Branson 4015R uses a synchronized shuttle transmission offering 12 forward gears.
What routine service does the Branson 4015R need?
Regular maintenance for the Branson 4015R includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
