Sub-CompactPerformance profile
Branson 4220i
The Branson 4220i is a compact but powerful tractor designed for various farming tasks. It features a 4x4 MFWD chassis with four-wheel drive, making it great for tough terrain. The tractor is steered using hydrostatic power, which makes it easy to control. It has a synchronized shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different jobs. Under the hood, the 4220i has a Kukje A2000N2 engine. This diesel engine is liquid-cooled and has four cylinders. It can produce 42 horsepower at 2600 RPM, which is plenty for most farm work. The tractor measures 124 inches long, 56 inches wide, and 97 inches tall. It weighs 4087 pounds, making it sturdy but not too heavy. The three-point hitch can lift up to 2580 pounds, which is good for attaching various tools. Some nice extras include a dry dual element air cleaner, and you can add a block heater if you need one.
ManufacturerBransonPower42 hpEngine4-cylTransSynchronized shuttle
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 42hp
- Operating Weight
- 4,087 lb
- Transmission
- Synchronized shuttle
At a glance
How the 4220i compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
42 hp · 80th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 4220i ranks at the 80th percentile for engine power among recorded sub-compact tractors.
Overview
About the Branson 4220i
The Branson 4220i is a compact but powerful tractor designed for various farming tasks. It features a 4x4 MFWD chassis with four-wheel drive, making it great for tough terrain. The tractor is steered using hydrostatic power, which makes it easy to control. It has a synchronized shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different jobs. Under the hood, the 4220i has a Kukje A2000N2 engine. This diesel engine is liquid-cooled and has four cylinders. It can produce 42 horsepower at 2600 RPM, which is plenty for most farm work. The tractor measures 124 inches long, 56 inches wide, and 97 inches tall. It weighs 4087 pounds, making it sturdy but not too heavy. The three-point hitch can lift up to 2580 pounds, which is good for attaching various tools. Some nice extras include a dry dual element air cleaner, and you can add a block heater if you need one.
Full specifications
Every recorded spec
General
| Manufacturer | Branson |
|---|---|
| Model | 4220i |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 4,087lb |
Engine
| Make | Kukje |
|---|---|
| Model | A2000N2 |
| Power | 42hp |
| Cylinders | 4 |
| Displacement | 127.2ci |
| Bore | 3.3in |
| Stroke | 3.7in |
Transmission
| Type | Synchronized shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 124in |
|---|---|
| Width | 56in |
| Height | 97in |
| Operating weight | 4,087lb |
Head to head
4220i vs. Sub-Compact median
How the Branson 4220i compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 42 hp | 26.9 hp | +56% | 80th |
| Engine Displacement | 127 ci | 91.4 ci | +39% | 72nd |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 4,087 lb | 2,700 lb | +51% | 81st |
| Length | 124 in | 113 in | +9% | 66th |
| Width | 56 in | 50.7 in | +10% | 64th |
| Height | 97 in | 78.4 in | +24% | 93rd |
| 3-Point Hitch Capacity | 2,580 lb | 1,433 lb | +80% | 82nd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 97–816 models).
Compare to tractors with similar specs
Commonly compared Branson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 4215CH | 42 hp | 3,664 lb | — | Compare → |
| Branson 4015H | 40 hp | 3,014 lb | — | Compare → |
| Branson 4015R | 40 hp | 3,014 lb | — | Compare → |
| Branson 4020 | 40 hp | 3,624 lb | — | Compare → |
| Branson 4520 | 45 hp | 3,624 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
Branson siblings
Explore
Similar-spec models
Gallery

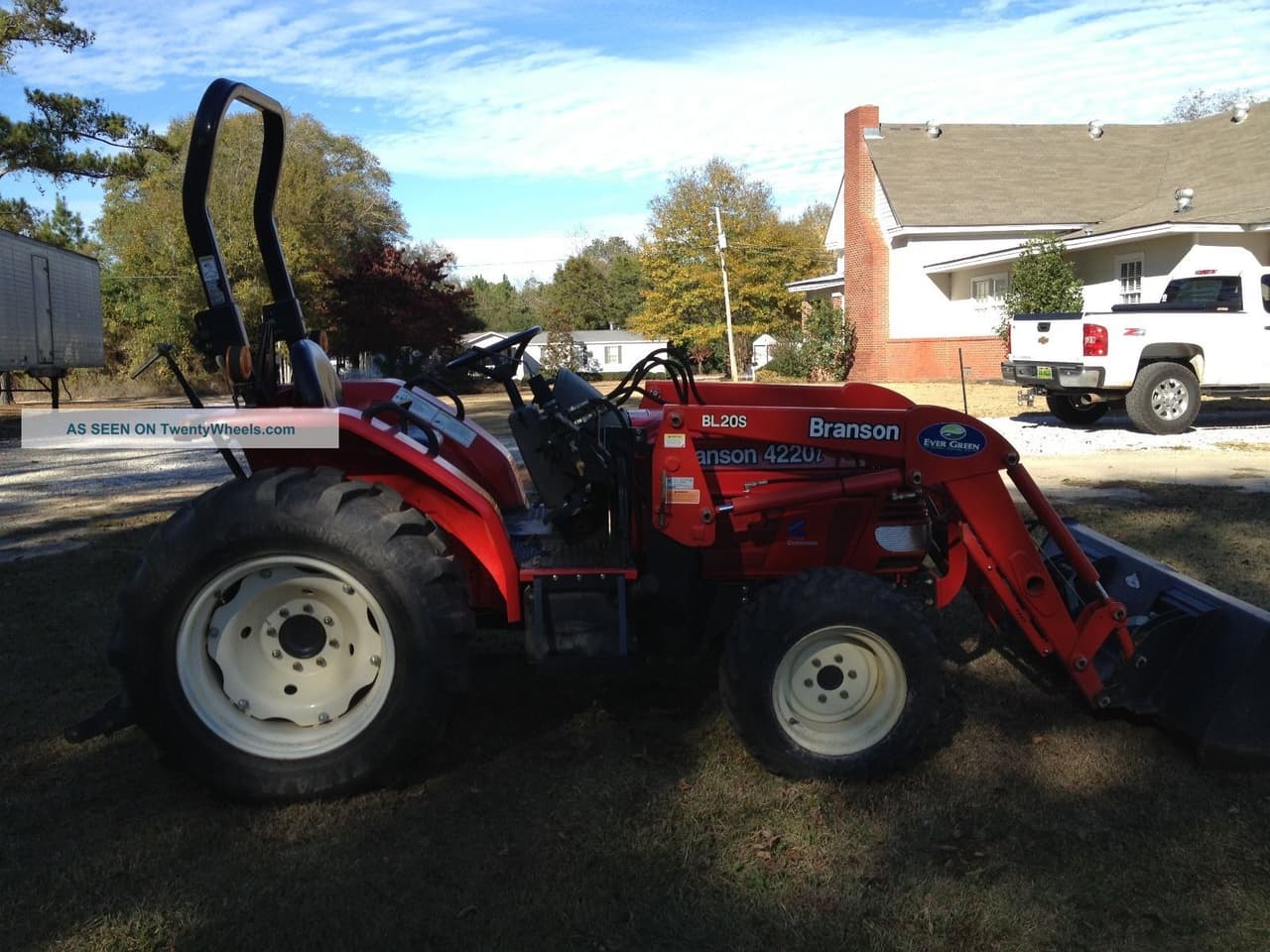

Branson 4220i photos
FAQ
Common questions
What is the engine power output of the Branson 4220i?
Rated engine output for the Branson 4220i is 42 hp, delivered by a 4-cylinder engine. The engine displaces 127.2 ci.
Which transmission does the Branson 4220i use?
The Branson 4220i is equipped with a Synchronized shuttle transmission with 12 forward gears.
What hitch category is the Branson 4220i?
The Branson 4220i uses a Category I hitch with a lift capacity of 2,580 lb.
What is the operating weight of the Branson 4220i?
In working trim, the Branson 4220i comes in at roughly 4,087 lb.
How do I maintain a Branson 4220i?
Routine service for the Branson 4220i covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
