Agricultural

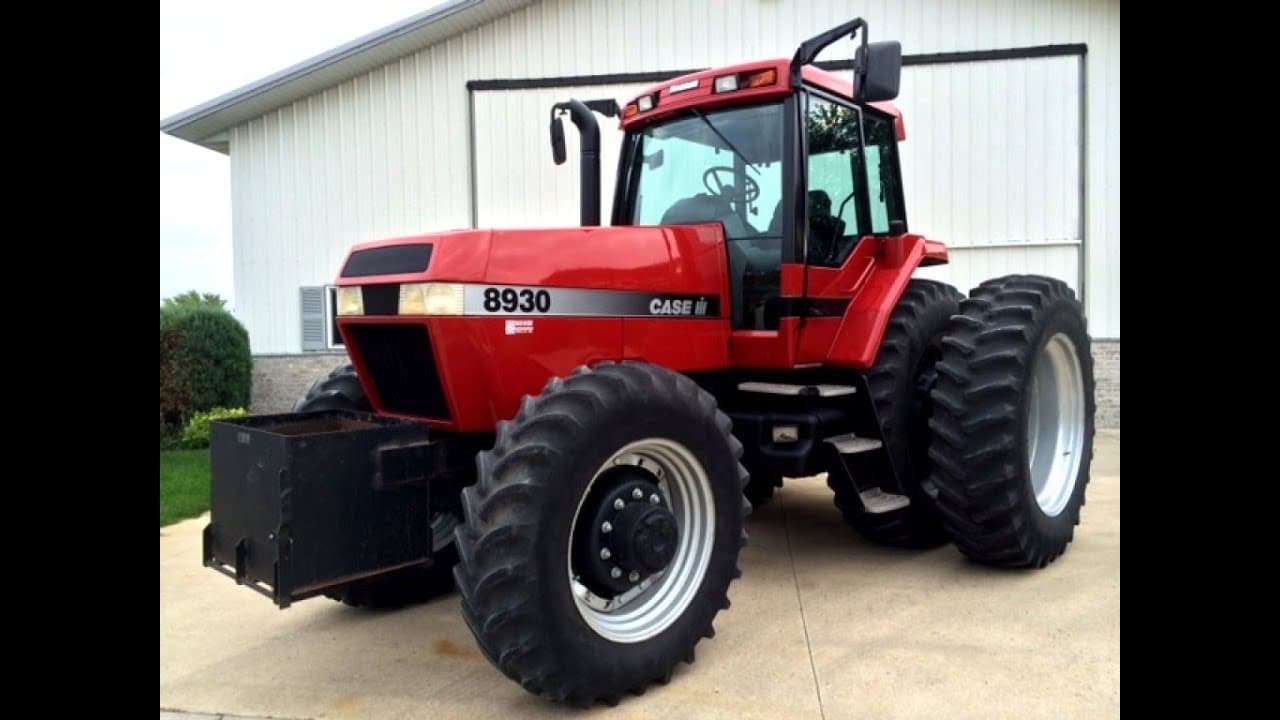

CaseIH 8930
The CaseIH 8930 is a powerful tractor built for serious farm work. It has a strong diesel engine made by CDC with 6 cylinders lined up in a row. The engine is turbocharged and intercooled, which helps it run better. It uses liquid to stay cool and has a big 31-quart coolant tank. This tractor is easy to drive with its full power shift transmission. It has 18 gears to go forward and 4 to go backward. The CaseIH 8930 is heavy, weighing 17,855 pounds, which helps it grip the ground well. It has special farm tires on both the front and back. The tractor has a strong hitch on the back to pull big tools. It also has a good hydraulic system and strong brakes that work well even when wet.
ManufacturerCaseIHEngine6-cylTransFull power shift
Quick specs
- Category
- Agricultural
- Operating Weight
- 17,855 lb
- Transmission
- Full power shift
Overview
About the CaseIH 8930
The CaseIH 8930 is a powerful tractor built for serious farm work. It has a strong diesel engine made by CDC with 6 cylinders lined up in a row. The engine is turbocharged and intercooled, which helps it run better. It uses liquid to stay cool and has a big 31-quart coolant tank. This tractor is easy to drive with its full power shift transmission. It has 18 gears to go forward and 4 to go backward. The CaseIH 8930 is heavy, weighing 17,855 pounds, which helps it grip the ground well. It has special farm tires on both the front and back. The tractor has a strong hitch on the back to pull big tools. It also has a good hydraulic system and strong brakes that work well even when wet.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 8930 |
| Category | Agricultural tractor |
| Operating weight | 17,855lb |
Engine
| Make | CDC |
|---|---|
| Cylinders | 6 |
| Displacement | 504.5ci |
| Bore | 4.49in |
| Stroke | 5.32in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 4 |
Chassis & drive
| Brakes | Hydraulic wet disc |
|---|
Hydraulics
| Type | Closed center pressure-flow compensated |
|---|
Dimensions
| Operating weight | 17,855lb |
|---|
Capacities
| Cooling system | 7.75gal |
|---|
Head to head
8930 vs. Agricultural median
How the CaseIH 8930 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 505 ci | 336 ci | +50% | 85th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 17,855 lb | 10,914 lb | +64% | 78th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 971–1,130 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 1056 XL | 105 hp | 9,634 lb | — | Compare → |
| CaseIH 3394 | — | 15,620 lb | — | Compare → |
| CaseIH 5240 Maxxum | 100 hp | 9,787 lb | 1992–1997 | Compare → |
| CaseIH 7210 | — | 16,590 lb | — | Compare → |
| CaseIH 856 XL | 85 hp | 8,465 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH 8930 photos
FAQ
Common questions
What engine configuration does the CaseIH 8930 use?
The CaseIH 8930 is equipped with a 6-cylinder engine displacing 504.5 ci.
What is the working weight of the CaseIH 8930?
The operating weight of the CaseIH 8930 is approximately 17,855 lb.
What type of transmission does the CaseIH 8930 have?
The CaseIH 8930 uses a Full power shift transmission offering 18 forward gears.
What hydraulics does the CaseIH 8930 have?
The CaseIH 8930 uses a Closed center pressure-flow compensated hydraulic system.
What three-point hitch category does the CaseIH 8930 use?
The CaseIH 8930 has a Category III/IIIN three-point hitch.
What routine service does the CaseIH 8930 need?
Regular maintenance for the CaseIH 8930 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
