Tractor specificationsPerformance profile

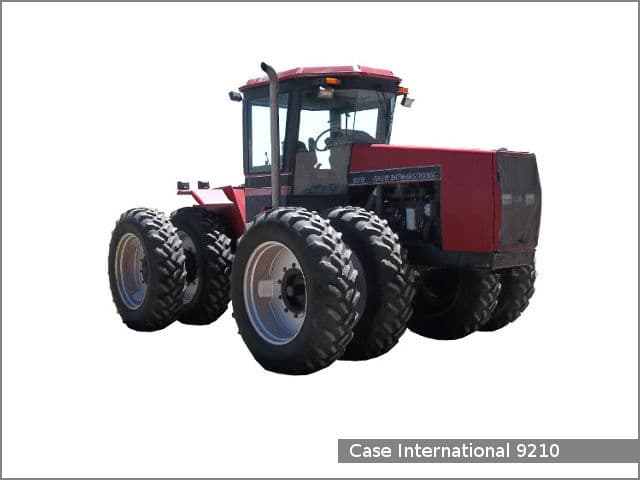

CaseIH 9210
The CaseIH 9210 is a powerful 4WD tractor built for big farm jobs. It has a strong diesel engine made by CDC that puts out 200 horsepower. The engine is big, with a displacement of 504.5 cubic inches. This tractor can handle tough work with its full power shift transmission that has 12 forward gears and 3 reverse gears. The 9210 is a large tractor, measuring 241.6 inches long, 119.5 inches wide, and 129.6 inches tall. It weighs 17,000 pounds, which helps it grip the ground well. The tractor has big 18.4-38 tires on both the front and back. It has a comfortable cab for the driver with side and rear window wipers. The hitch can lift up to 12,750 pounds, making it great for pulling heavy equipment. This tractor was made from 1990 to 1995 in Fargo, North Dakota.
ManufacturerCaseIHPower200 hpTransFull power shift transmission
Quick specs
- Engine Power Output
- 200hp
- Operating Weight
- 17,000 lb
- Transmission
- Full power shift transmission
Overview
About the CaseIH 9210
The CaseIH 9210 is a powerful 4WD tractor built for big farm jobs. It has a strong diesel engine made by CDC that puts out 200 horsepower. The engine is big, with a displacement of 504.5 cubic inches. This tractor can handle tough work with its full power shift transmission that has 12 forward gears and 3 reverse gears. The 9210 is a large tractor, measuring 241.6 inches long, 119.5 inches wide, and 129.6 inches tall. It weighs 17,000 pounds, which helps it grip the ground well. The tractor has big 18.4-38 tires on both the front and back. It has a comfortable cab for the driver with side and rear window wipers. The hitch can lift up to 12,750 pounds, making it great for pulling heavy equipment. This tractor was made from 1990 to 1995 in Fargo, North Dakota.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 9210 |
| Type | 4x4 |
| Years built | 1990+ |
| Operating weight | 17,000lb |
Engine
| Make | CDC |
|---|---|
| Power | 200hp |
| Displacement | 504.5ci |
| Bore | 4.5in |
| Stroke | 5.3in |
Transmission
| Type | Full power shift transmission |
|---|---|
| Forward gears | 12 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x4 |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic with articulation and front-axle steering |
| Cab | Cab |
Power take-off
| Rear PTO | Rear, independent |
|---|---|
| PTO speed | 1,000rpm |
Dimensions
| Length | 241.6in |
|---|---|
| Width | 119.5in |
| Height | 129.6in |
| Operating weight | 17,000lb |
Tires
| Front | 18.4-38 |
|---|---|
| Rear | 18.4-38 |
Capacities
| Cooling system | 8.75gal |
|---|
Head to head
9210 vs. category median
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 9110 | 200 hp | 17,000 lb | — | Compare → |
| CaseIH Magnum 200 | 200 hp | 20,705 lb | — | Compare → |
| CaseIH MX210 Magnum | 200 hp | — | — | Compare → |
| CaseIH Puma 200 | 200 hp | 18,940 lb | — | Compare → |
| CaseIH 3594 | 202 hp | 17,590 lb | 1985–1988 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO RT165A | 200 hp | 17,460 lb | — | Compare → |
| Allis Chalmers 7060 | 192 hp | 13,990 lb | 1974–1981 | Compare → |
| Allis Chalmers 7080 | 210 hp | 13,638 lb | 1975–1981 | Compare → |
| Challenger 35 | 210 hp | 22,262 lb | — | Compare → |
| Allis Chalmers 7580 | 186.35 hp | 25,000 lb | 1977–1981 | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH 9210 photos
FAQ
Common questions
When was the CaseIH 9210 in production?
The CaseIH 9210 was introduced in 1990.
What are the factory tire sizes for the CaseIH 9210?
The CaseIH 9210 comes with 18.4-38 front tires and 18.4-38 rear tires.
What three-point hitch category does the CaseIH 9210 use?
The CaseIH 9210 has a Category III three-point hitch rated to lift 12,750 lb.
How much horsepower does the CaseIH 9210 have?
The CaseIH 9210 produces 200 hp. Engine displacement is 504.5 ci.
How much does the CaseIH 9210 weigh?
The CaseIH 9210 weighs about 17,000 lb in operating condition.
What transmission is in the CaseIH 9210?
Transmission on the CaseIH 9210 is Full power shift transmission, with 12 forward speeds.
What maintenance does the CaseIH 9210 require?
Like any tractor, the CaseIH 9210 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
