CaseIH CX60
The CaseIH CX60 is a 2WD tractor with a 4x2 chassis, perfect for various farming tasks. It features hydrostatic power steering, making it easy to control in the field. The tractor has a synchro shuttle transmission with 8 forward and 8 reverse gears, giving the driver plenty of options for different jobs. Under the hood, the CX60 boasts a Perkins 903.27T engine. This diesel engine is turbocharged and liquid-cooled, with 3 cylinders and a displacement of 165 ci. It produces 64 hp at 2250 rpm, providing good power for its size. The engine has a bore of 3.74 inches and a stroke of 5 inches. The tractor weighs 7286 lb and has a wheelbase of 84.8 inches, making it stable and well-balanced. It comes with a Category II/I rear hitch and an open center hydraulic system, allowing for versatile implement attachment.
ManufacturerCaseIHPower64 hp(47.7 kW)Class60–100 HP tractors →Engine3-cylinderTransmissionSynchro Shuttle
Key specifications
- Category
- Sub-Compact
- Engine power
- 64hp
- Operating weight
- 7,286 lb
- Transmission
- Synchro Shuttle
Category comparison
CX60 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
64 hp · 98th
This model
4
Median 26.85 hp
49
64
This modelSub-Compact tractorsMediann = 816
The CX60 ranks at the 98th percentile for engine power among recorded sub-compact tractors.
Overview
About the CaseIH CX60
The CaseIH CX60 is a 2WD tractor with a 4x2 chassis, perfect for various farming tasks. It features hydrostatic power steering, making it easy to control in the field. The tractor has a synchro shuttle transmission with 8 forward and 8 reverse gears, giving the driver plenty of options for different jobs. Under the hood, the CX60 boasts a Perkins 903.27T engine. This diesel engine is turbocharged and liquid-cooled, with 3 cylinders and a displacement of 165 ci. It produces 64 hp at 2250 rpm, providing good power for its size. The engine has a bore of 3.74 inches and a stroke of 5 inches. The tractor weighs 7286 lb and has a wheelbase of 84.8 inches, making it stable and well-balanced. It comes with a Category II/I rear hitch and an open center hydraulic system, allowing for versatile implement attachment.
Full specifications
Recorded specifications
General
| Manufacturer | CaseIH |
|---|---|
| Model | CX60 |
| Category | Sub-Compact tractor |
| Type | 4x2 |
| Operating weight | 7,286lb(3,305 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 903.27T |
| Power | 64hp(47.72 kW) |
| Cylinders | 3 |
| Displacement | 165ci(2.7 L) |
| Bore | 3.74in(95 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Synchro Shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Wheelbase | 84.8in(2,154 mm) |
|---|---|
| Operating weight | 7,286lb(3,305 kg) |
Capacities
| Cooling system | 3.14gal(11.89 L) |
|---|
Closest alternatives
CX60 compared with the nearest models by horsepower
Among sub-compact tractors, the CaseIH C64 and the YTO DFH-654 are closest to the CaseIH CX60 in rated horsepower. The CaseIH C64 matches it on rated power and weighs 830 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The YTO DFH-654 matches it on rated power and weighs 1,960 lb less, carrying 83 lb per horsepower against 114 lb. Of the 3 models, the CX60 has the highest weight per horsepower at 114 lb per hp.
| Spec | CaseIH CX60 | CaseIH C64 | YTO DFH-654 |
|---|---|---|---|
| Engine power | 64 hp47.7 kW | 64 hp47.7 kW | 64.4 hp48 kW |
| Operating weight | 7,286 lb3,305 kg | 6,461 lb2,931 kg | 5,322 lb2,414 kg |
| Weight per hp | 114 lb/hp69 kg/kW | 101 lb/hp61 kg/kW | 83 lb/hp50 kg/kW |
| Displacement | 165 ci2.7 L | 190.2 ci3.12 L | 264.3 ci4.33 L |
| Cylinders | 3 | 3 | - |
| Transmission | Synchro Shuttle | Synchro | - |
| Drive | 2WD | 2WD | - |
Calculators
Calculators for the CX60
PTO power
About 53 to 58 PTO hp
Estimated from the 64 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 64 hp tractor can run
Maximum size is about a 7.5 ft rotary cutter or a 6.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
132 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
64 hp is 47.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
CX60 vs. Sub-Compact median
CaseIH CX60 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 64 hp | 26.9 hp | +138% | 98th |
| Engine Displacement | 165 ci | 91.4 ci | +81% | 89th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 8 | 9 | -11% | 40th |
| Operating Weight | 7,286 lb | 2,700 lb | +170% | 99th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 616–816 models).
Same manufacturer
Other CaseIH models
Other manufacturers
Models with similar horsepower
Gallery

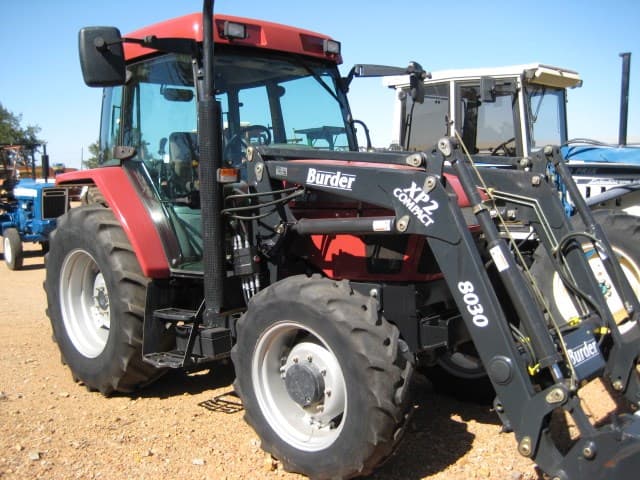

CaseIH CX60 photos
FAQ
Frequently asked questions
How much horsepower does the CaseIH CX60 have?
The CaseIH CX60 produces 64 hp from its 3-cylinder engine. Engine displacement is 165 ci.
What transmission is in the CaseIH CX60?
Transmission on the CaseIH CX60 is Synchro Shuttle, with 8 forward speeds.
What type of hydraulic system does the CaseIH CX60 use?
Hydraulics on the CaseIH CX60 are Open Center.
What hitch category is the CaseIH CX60?
The CaseIH CX60 uses a Category II/I hitch.
How much does the CaseIH CX60 weigh?
The CaseIH CX60 weighs about 7,286 lb in operating condition.
What maintenance does the CaseIH CX60 require?
The CaseIH CX60 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
