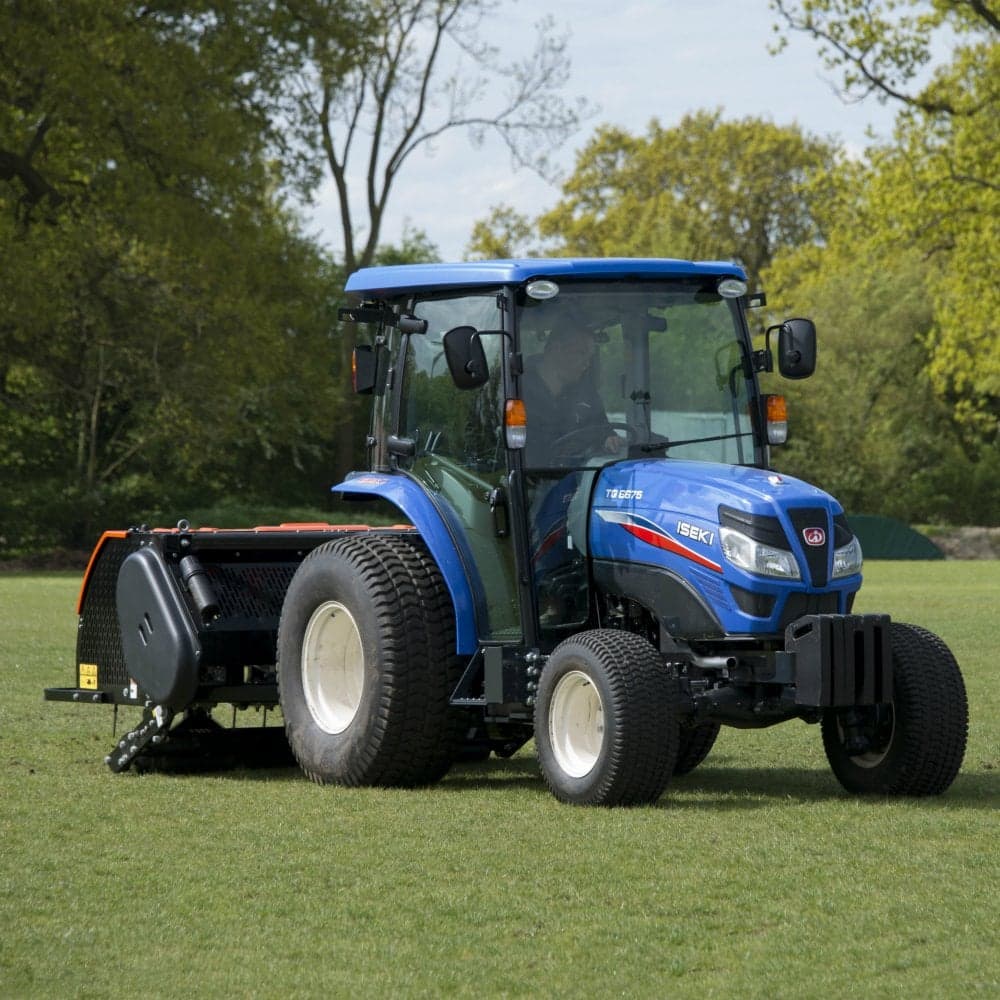

Iseki TG6675
The Iseki TG6675 is a powerful 4WD tractor built for tough farm work. It has a strong 65 hp engine made by Shibaura. This engine has 4 cylinders and uses diesel fuel. It's turbocharged, which means it can work hard even in tough conditions. The TG6675 has a special transmission that lets you change speeds easily. It has 12 forward gears and can go backward too. The tractor is big, measuring 135.2 inches long and 67.9 inches wide. It weighs 4,255 pounds, which helps it stay steady during heavy jobs. The tractor has a rear hitch for attaching tools and a roll-over protection system (ROPS) to keep the driver safe. With its power steering and sturdy build, the Iseki TG6675 is ready to tackle a wide range of farm tasks.
ManufacturerIsekiPower65 hp(48.5 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionHydrostatic / Power shuttle
Key specifications
- Category
- Sub-Compact
- Engine power
- 65hp
- Operating weight
- 4,255 lb
- Transmission
- Hydrostatic / Power shuttle
Category comparison
TG6675 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
65 hp · 98th
This model
4
Median 26.85 hp
49
65
This modelSub-Compact tractorsMediann = 816
The TG6675 ranks at the 98th percentile for engine power among recorded sub-compact tractors.
Overview
About the Iseki TG6675
The Iseki TG6675 is a powerful 4WD tractor built for tough farm work. It has a strong 65 hp engine made by Shibaura. This engine has 4 cylinders and uses diesel fuel. It's turbocharged, which means it can work hard even in tough conditions. The TG6675 has a special transmission that lets you change speeds easily. It has 12 forward gears and can go backward too. The tractor is big, measuring 135.2 inches long and 67.9 inches wide. It weighs 4,255 pounds, which helps it stay steady during heavy jobs. The tractor has a rear hitch for attaching tools and a roll-over protection system (ROPS) to keep the driver safe. With its power steering and sturdy build, the Iseki TG6675 is ready to tackle a wide range of farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | Iseki |
|---|---|
| Model | TG6675 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 4,255lb(1,930 kg) |
Engine
| Make | Shibaura |
|---|---|
| Model | N4LDI-TA |
| Power | 65hp(48.47 kW) |
| Cylinders | 4 |
| Displacement | 135.2ci(2.22 L) |
| Bore | 3.31in(84 mm) |
| Stroke | 3.94in(100 mm) |
Transmission
| Type | Hydrostatic / Power shuttle |
|---|---|
| Forward gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | ROPS |
Dimensions
| Length | 135.2in(3,434 mm) |
|---|---|
| Width | 67.9in(1,725 mm) |
| Operating weight | 4,255lb(1,930 kg) |
Closest alternatives
TG6675 compared with the nearest models by horsepower
By engine horsepower, the nearest sub-compact models to the TG6675 are the YTO DFH-654 and the CaseIH C64. The YTO DFH-654 makes 0.6 hp less and weighs 1,070 lb more, so it carries more weight per horsepower, which helps traction in draft work. The CaseIH C64 is rated 1 hp lower and weighs 2,210 lb more, at 101 lb per horsepower against 65 lb. Of the 3 models, the TG6675 has the lowest weight per horsepower at 65 lb per hp.
| Spec | Iseki TG6675 | YTO DFH-654 | CaseIH C64 |
|---|---|---|---|
| Engine power | 65 hp48.5 kW | 64.4 hp48 kW | 64 hp47.7 kW |
| Operating weight | 4,255 lb1,930 kg | 5,322 lb2,414 kg | 6,461 lb2,931 kg |
| Weight per hp | 65 lb/hp40 kg/kW | 83 lb/hp50 kg/kW | 101 lb/hp61 kg/kW |
| Displacement | 135.2 ci2.22 L | 264.3 ci4.33 L | 190.2 ci3.12 L |
| Cylinders | 4 | - | 3 |
| Transmission | Hydrostatic / Power shuttle | - | Synchro |
| Drive | 4WD | - | 2WD |
Calculators
Calculators for the TG6675
PTO power
About 54 to 59 PTO hp
Estimated from the 65 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 65 hp tractor can run
Maximum size is about a 7.5 ft rotary cutter or a 6.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
76 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
65 hp is 48.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
TG6675 vs. Sub-Compact median
Iseki TG6675 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 65 hp | 26.9 hp | +142% | 98th |
| Engine Displacement | 135 ci | 91.4 ci | +48% | 75th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 4,255 lb | 2,700 lb | +58% | 84th |
| Length | 135 in | 113 in | +19% | 87th |
| Width | 67.9 in | 50.7 in | +34% | 93rd |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other Iseki models
Other manufacturers
Models with similar horsepower
Gallery
Iseki TG6675 photos
FAQ
Frequently asked questions
What is the engine power output of the Iseki TG6675?
Rated engine output for the Iseki TG6675 is 65 hp, delivered by a 4-cylinder engine. The engine displaces 135.2 ci.
Which transmission does the Iseki TG6675 use?
The Iseki TG6675 is equipped with a Hydrostatic / Power shuttle transmission with 12 forward gears.
What hitch category is the Iseki TG6675?
The Iseki TG6675 uses a Category Category 3 hitch.
What is the operating weight of the Iseki TG6675?
The Iseki TG6675 has an operating weight of about 4,255 lb.
How do I maintain a Iseki TG6675?
Routine service for the Iseki TG6675 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
