Row CropPerformance profile
CaseIH MX255 Magnum
The CaseIH MX255 Magnum is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that makes 262 horsepower, which is very high compared to other tractors. The engine is turbocharged and intercooled, helping it work hard in tough conditions. This tractor is big and heavy, weighing 21,550 pounds, making it stable for heavy fieldwork. The MX255 Magnum has a full power shift transmission with 18 forward gears and 4 reverse gears. This gives the driver lots of options for different speeds and tasks. The tractor has four-wheel drive and hydrostatic power steering, making it easy to control in the field. It also has a closed center hydraulic system, which is good for running equipment. The cab keeps the driver comfortable, and there's a Category 3 hitch on the back for attaching big implements. CaseIH is known for making tough farm equipment, and this tractor fits that reputation.
ManufacturerCaseIHPower262 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 262hp
- Operating Weight
- 21,550 lb
- Transmission
- Full power shift
At a glance
How the MX255 Magnum compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
262 hp · 89th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The MX255 Magnum ranks at the 89th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH MX255 Magnum
The CaseIH MX255 Magnum is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine that makes 262 horsepower, which is very high compared to other tractors. The engine is turbocharged and intercooled, helping it work hard in tough conditions. This tractor is big and heavy, weighing 21,550 pounds, making it stable for heavy fieldwork. The MX255 Magnum has a full power shift transmission with 18 forward gears and 4 reverse gears. This gives the driver lots of options for different speeds and tasks. The tractor has four-wheel drive and hydrostatic power steering, making it easy to control in the field. It also has a closed center hydraulic system, which is good for running equipment. The cab keeps the driver comfortable, and there's a Category 3 hitch on the back for attaching big implements. CaseIH is known for making tough farm equipment, and this tractor fits that reputation.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | MX255 Magnum |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 21,550lb |
Engine
| Make | CDC |
|---|---|
| Power | 262hp |
| Cylinders | 6 |
| Displacement | 504.5ci |
| Bore | 4.49in |
| Stroke | 5.32in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Steering | Hydrostatic power |
| Cab | Cab |
Hydraulics
| Type | Closed center pressure flow compensated (PFC) with parallel priority |
|---|
Dimensions
| Height | 124.6in |
|---|---|
| Operating weight | 21,550lb |
Capacities
| Cooling system | 6gal |
|---|
Head to head
MX255 Magnum vs. Row Crop median
How the CaseIH MX255 Magnum compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 262 hp | 138 hp | +90% | 89th |
| Engine Displacement | 505 ci | 391 ci | +29% | 87th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 18 | 16 | +13% | 61st |
| Operating Weight | 21,550 lb | 12,307 lb | +75% | 87th |
| Height | 125 in | 114 in | +10% | 84th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Magnum 260 | 257 hp | 27,180 lb | — | Compare → |
| CaseIH Optum 270 | 271 hp | 23,149 lb | — | Compare → |
| CaseIH Magnum 250 | 252 hp | 20,140 lb | — | Compare → |
| CaseIH Magnum 275 | 275 hp | 21,570 lb | — | Compare → |
| CaseIH MX275 Magnum | 275 hp | 21,570 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO DT220A | 260 hp | 19,951 lb | 2005–2008 | Compare → |
| AGCO DT225B | 266.3 hp | 25,795 lb | 2009–2010 | Compare → |
| Challenger 65 | 270 hp | 33,200 lb | — | Compare → |
| Big Bud HN250 | 250 hp | 34,000 lb | — | Compare → |
| Caterpillar D7G SA Special Application | 250 hp | 40,700 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Similar spec
Similar spec
Similar specGallery

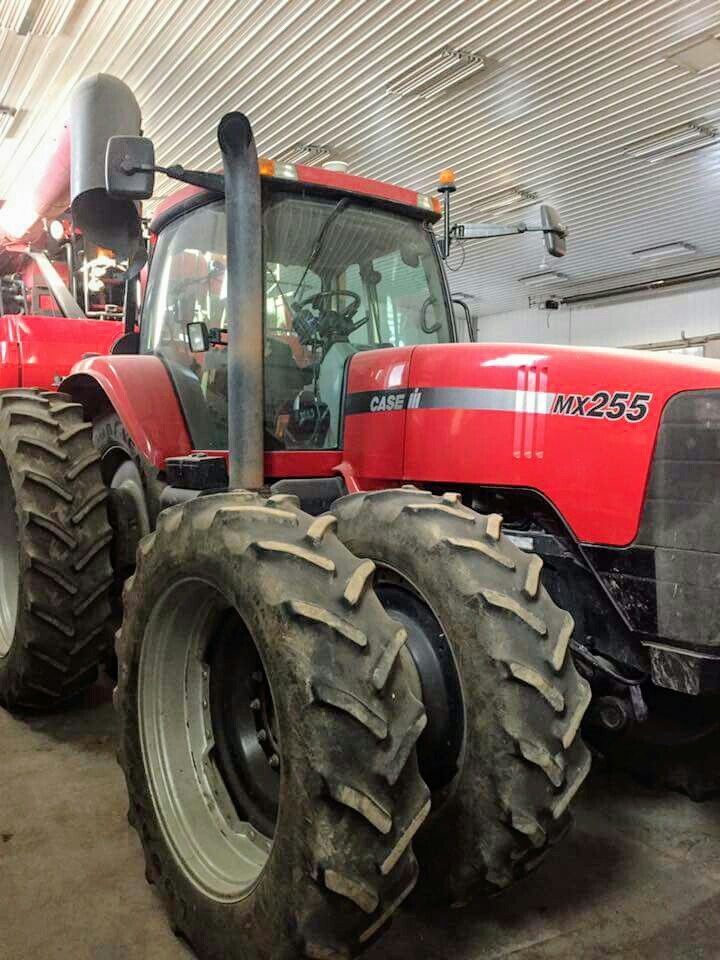

CaseIH MX255 Magnum photos
FAQ
Common questions
How powerful is the CaseIH MX255 Magnum?
The CaseIH MX255 Magnum has an engine power output of 262 hp. It is powered by a 6-cylinder engine displacing 504.5 ci.
What type of transmission does the CaseIH MX255 Magnum have?
The CaseIH MX255 Magnum uses a Full power shift transmission offering 18 forward gears.
What type of hydraulic system does the CaseIH MX255 Magnum use?
Hydraulics on the CaseIH MX255 Magnum are Closed center pressure flow compensated (PFC) with parallel priority.
What hitch category is the CaseIH MX255 Magnum?
The CaseIH MX255 Magnum uses a Category Category 3 hitch.
What is the working weight of the CaseIH MX255 Magnum?
The operating weight of the CaseIH MX255 Magnum is approximately 21,550 lb.
What routine service does the CaseIH MX255 Magnum need?
Regular maintenance for the CaseIH MX255 Magnum includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
